3

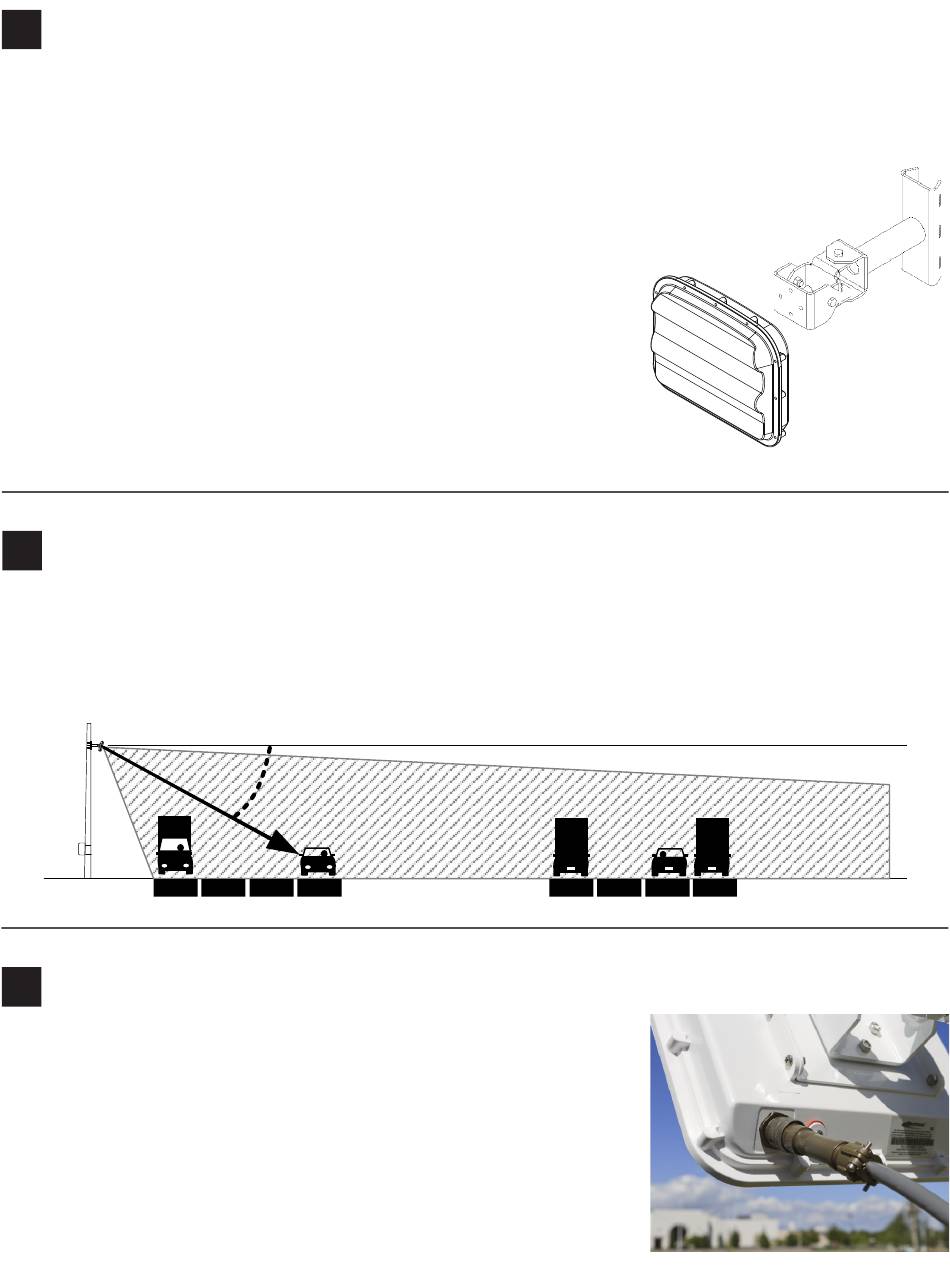

Attach the sensor and mount bracket to the pole

Attach the mount bracket to the pole
1
Insert the stainless steel straps through the slots in the mount bracket.
2
Position the mount on the pole so that the head of the mount is
pointing towards the middle of the lanes of interest.
3
Tighten the strap screws.
Attach the sensor to the mount bracket
1
Align the bolts on the back of the SmartSensor V with the holes
on the mounting bracket. The large 26-pin connector on the
SmartSensor V should be pointing towards the ground.
2
Place the lock washers onto the bolts after the bolts are in the
mounting bracket holes.
3
Thread on the nuts and tighten.
4

Align the sensor to the roadway

1
Tilt the sensor down so that the front is aimed at the center of the detection area.
2
Adjust the side-to-side angle to within approximately 2° of perpendicular to the flow of traffic.
3
Tighten the mounting bracket bolts.
1
5

Attach the 8-conductor cable

1
Tear the tab off the tube of silicon dielectric compound and
squeeze about 25% of the silicon into the connector at the base of
the SmartSensor. Wipe off any excess compound.
2
Insert the cable into the connector and twist clockwise until you
hear it click into place.
3
To avoid undue movement from wind, strap the cable to the pole
or run it through a conduit, but leave a small amount of slack at
the top of the cable to reduce strain.
Tilt the sensor toward the roadway
