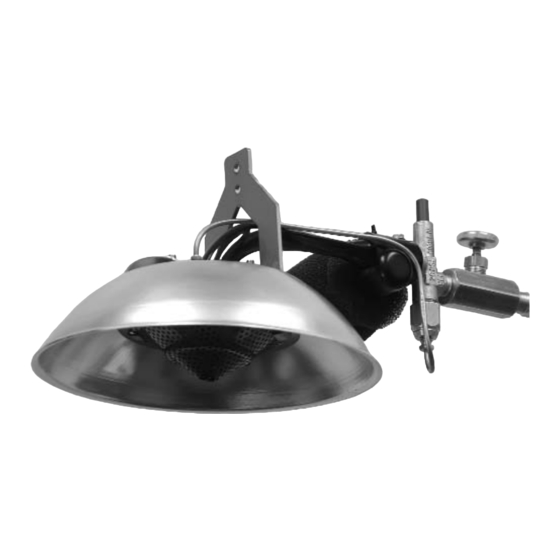

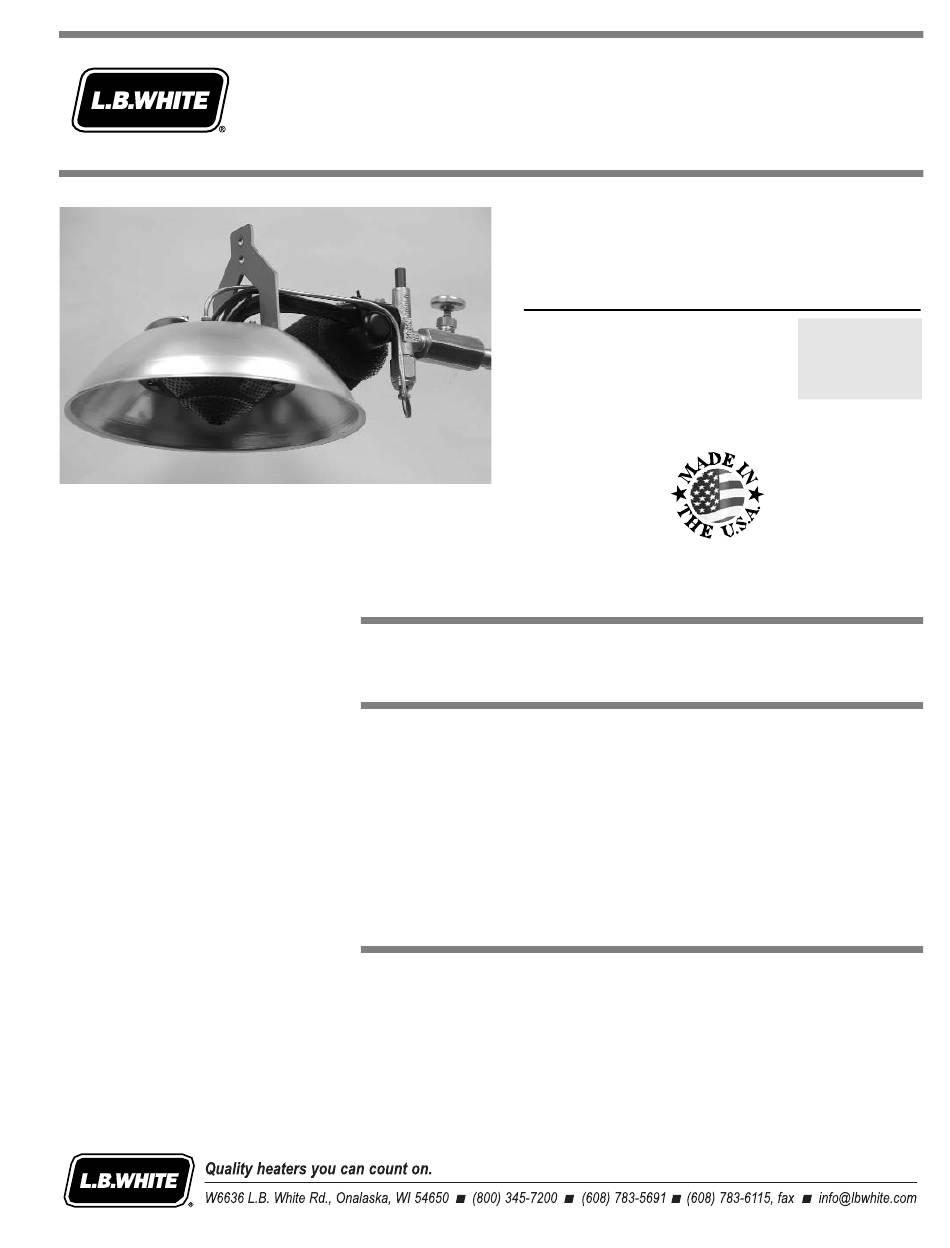

Owner's Manual and Instructions
Individually Controlled Infraconic
Agricultural Building Radiant Heaters
OUTPUT (Btuh)
MODEL
FUEL
Propane
2,800
I
3
Vapor
Withdrawal
Congratulations!
You have purchased the finest radiant heater available for the heating of
livestock in agricultural animal confinement buildings.
Your new L.B. White radiant heater incorporates the benefits from the most
experienced manufacturer of heating products using state-of-the-art
technology.
We, at L.B. White, thank you for your confidence in our products and welcome
any suggestions or comments you may have...call us toll free at (800) 345-
7200.
ATTENTION ALL USERS
This heater has been tested and evaluated by L.B.White Co. Inc. as a direct
gas-fired radiant heater with intended use for the heating of livestock in
agricultural animal confinement buildings. If you are considering using this
product for any application other than its intended use, then please contact
your fuel gas supplier, or the
L.B. White Co., Inc.
150-26094

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the I3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for L.B. White I3

Summary of Contents for L.B. White I3

  • Page 1 Your new L.B. White radiant heater incorporates the benefits from the most experienced manufacturer of heating products using state-of-the-art technology. We, at L.B. White, thank you for your confidence in our products and welcome any suggestions or comments you may have...call us toll free at (800) 345- 7200.
  • Page 3 Save this Owner’s Manual for future use and reference. ■ Owner’s Manuals and replacement labels are available at no charge. For assistance, contact L.B. White at 800-345-7200. WARNING ■ Proper gas supply pressure must be provided to the inlet of the heater.

  • Page 4: Table Of Contents

    This manual will instruct you in the operation and care of your radiant heater. Have your qualified installer review this The L.B. White Co., Inc. has a policy of continuous product manual with you so that you fully understand the heater and improvement.

  • Page 5: Heater Specifications

    Radiant Heater Specifications M M o o d d e e l l S S P P E E C C I I F F I I C C A A T T I I O O N N S S Maximum Input (Btuh) 2,800 Ventilation Air to...
  • Page 6 Safety Precautions W W A A R R N N I I N N G G Asphyxiation Hazard ■ Do not use this radiant heater for heating human living combustion air ventilation requirements of the heater. quarters. ■ Lack of proper ventilation air will lead to improper ■...

  • Page 7: Safety Precautions

    Safety Precautions 1. Do not attempt to install, repair or service this heater 4. The components on the heater that call for hand or the gas supply line unless you have continuing operation should work with hand pressure only. If expert training and knowledge of gas heaters.

  • Page 8: Installation Instructions

    Installation Instructions GENERAL 1. Read all safety precautions and follow L.B. White 10 psig inlet pressure, while supplying an outlet recommendations when installing this heater. If pressure of 5 psig.The regulator may be purchased during the installation or relocating of the heater, you from L.B.White Co.

  • Page 9: Filter Assembly

    -- In the event a gas leak is detected, check the iron pipe is used to convey the gas to the heaters. components involved for cleanliness and However, always consult your fuel gas supplier, or the proper application of pipe compound before L.

  • Page 10: Hanging The Heater

    HANGING THE HEATER Refer to Figs. 4 and 5 for hanging requirements. Ensure a non-combustible hanger is attached to the heater’s hanging bracket. Use the appropriate mounting hardware. FIG. 4 FIG. 5 GAS HOSE MUST BE POSITIONED AWAY CUSTOMER SUPPLIED FROM HEATER CUSTOMER SUPPLIED GAS HOSE...

  • Page 11: Lighting And Operating Instructions

    Lighting and Operating Instructions Fully depress the button on the safety control valve WARNING while applying flame to the inner cone point. See Fire o o r E E xplosion H H azard Fig.7. Keep the button fully depressed for about 30 seconds until the inner cone stays lit.

  • Page 12: Cleaning Instructions

    Cleaning Instructions C C L L E E A A N N I I N N G G W W I I T T H H W W A A T T E E R R CAUTION ■ Clean the heater with water using standard faucet pressure. Disinfectants utilized in agricultural animal DO N N OT U U SE H H IGH P P RESSURE W W ASHERS! confinement buildings may contain chemicals...

  • Page 13: Maintenance Instructions

    Maintenance Instructions 1. Have your gas supplier check all gas piping annually 6. Immediately replace components which show signs of for leaks or restrictions in gas lines. rust or corrosion. 2. The h h eater’s s s urrounding a a rea s s hall b b e k k ept c c lear a a nd If any warning or instruction labels, dataplates, etc.

  • Page 14: Safety Gas Control Valve & Burner Orifice

    SAFETY GAS CONTROL VALVE & MAIN BURNER ORIFICE 1. Remove gas hose and disconnect thermocouple at FIG. 10 safety control valve. INDIVIDUAL CONTROL VALVE 2. Remove individual control valve and air intake retaining screw. SAFETY CONTROL 3. Pull safety gas control assembly from heater. SCREW LOOSEN 4.

  • Page 15: Gas Pressure Checks

    GAS PRESSURE CHECKS A. Preparation C. Reading P P ressures 1. Obtain an L.B. White pressure gauge test kit - 1. With the heater opeating at full heat output, the Part No. 20736. pressure gauge should read the 5 psig.

  • Page 16: Troubleshooting Guide

    Troubleshooting Guide READ THIS ENTIRE SECTION BEFORE WARNING BEGINNING TO TROUBLESHOOT PROBLEMS. B B u u r r n n H H a a z z a a r r d d ■ Troubleshooting this system may require operating the The following troubleshooting flow charts provide systematic heater with the burner on.

  • Page 21: Heater Component Function

    Heater Component Function Main Burner Orifice Safety Control Valve Metering device used to feed gas to combustion cones over Safety shut off device used to feed fuel gas to the heater the full range of heat output. combustion cones for heating. Will shut off flow of gas completely if gas flame is extinguished.

  • Page 22: Parts Identification

    Parts Identification PARTS SCHEMATIC...

  • Page 23: Parts List

    PARTS LIST Item Description Part No. Safety Control Valve 22089 Main Burner Orifice 23431 Screw 24943 Air Intake 23948 Thermocouple, w/ Bracket and Nuts 23635 Bracket 23505 Venturi Tube 23438 Shroud 23439 Combustion Cone Kit 23543 Consisting Of: Inner Cone 23435 Gasket 23434...

  • Page 24: Warranty Policy

    L.B. White Co., Inc. will at its option, repair or replace the defective part or equipment, with a new part or equipment, F.O.B., Onalaska, Wisconsin.
