Summary of Contents for Heartway Medical Products PF7

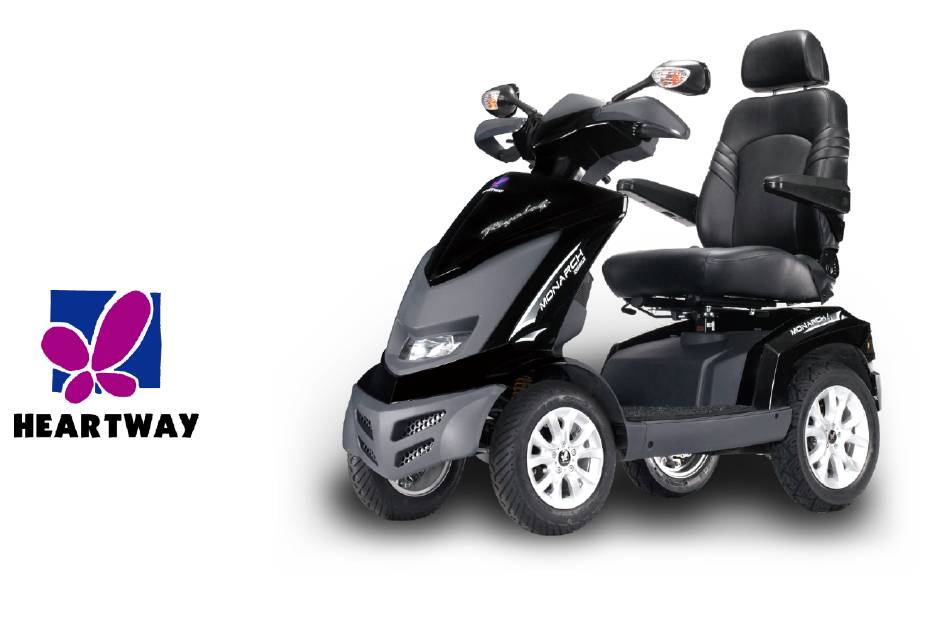

- Page 1 User Manual...
- Page 2 Please remove the battery package from the scooter unit before long term storage PF7 should be turned off prior to entering or existing the seat. Make sure the scooter is fully un-folded before driving. Please refer to our official website for general product information at www.heartway.com.tw...
-
Page 3: Safety Symbol
Class C Outdoor use. The scooter PF7 is designed for outdoor use for adults with mobility restrictions. It is classified in category C according to EN 12184. It is compact, manoeuvrable and able to overcome obstacles outdoors; The maximum load is 160 kg. -
Page 4: Safety Instruction
SAFETY INSTRUCTION General Never use electronic radio Make sure that there are Always use a seat belt Never operate the scooter Do not make a sharp turn or no obstacles behind you transmitters such as and keep your feet on while you are under the a sudden stop while riding walkie-talkies, or cellular phones. - Page 5 WARNING Don’t operate scooter on public streets and roadways. Be aware that it may be difficult for traffic to see you when you are seated on the scooter. Obey all local pedestrian traffic rules. Wait until your path is clear of traffic, and then proceed with extreme cautions. To prevent injury to yourself or others, always ensure that the power is switched off when getting on or off of the scooter.
- Page 6 Operating in rain, snow, salt, mist conditions and on icy or slippery surfaces may have an adverse affect on the electrical system. Never sit on your scooter when it is being used in connection with any type of lift or elevation product. Your scooter is not designed with such use in mind and any damage or injury incurred from such use is not the responsibility of Heartway.
- Page 7 Weight limitation. 1. Please refer to the specifications table for weight capacity information. Power scooter is rated for a maximum weight capacity. 2. Stay within the specified weight capacity for your scooter. Exceeding the weight capacity voids your warranty. Heartway will not be held responsible for injuries or property damage resulting from failure to observe weight limitations. 3.
-
Page 8: Electromagnetic Interference (Emi)
The United States Food and drug Administration (FDA) suggests that the following statement be incorporated to the user’s manual for all power scooter like the PF7. Power scooters may as susceptible to electromagnetic interference (EMI), which is interfering electromagnetic energy emitted from sources such as radio stations, TV stations, amateur radio (HAN) transmitter, two-way radios, cellular phones and alarm systems of shops. -
Page 9: Product Specification
PRODUCT SPECIFICATION MODEL WARNING WEIGHT CAPACITY 160kgs(350 lbs) 20" Captain Seat 20KG SEAT: TYPE/SIZE 410mmx100mm(16"x4") Pneumatic Tire, 30-35PSI DRIVE WHEEL The stopping distance on the slope can be significantly greater than on the level ground. 360mmx90mm(14"x3.5") Pneumatic Tire,30-35PSI FRONT CASTER (WHEEL) REAR CASTER (ANTI-TIPPER) 14 KM/H ~ 15 KM/H MAX SPEED... -
Page 10: Adjustment For Seating Comfort
ADJUSTMENT FOR SEATING COMFORT Press the bottom to adjust the height of the headrest. The flip-up armrest height can be adjusted by turning the adjustment dial. Adjust the seat back lever for seating back angle. •Turn the swivel lever downwards to rotate the seat. •Push the front lever upwards to move the seat forward and backward. - Page 11 ADJUSTMENT FOR SEATING COMFORT How to remove the seat Please refer to the following instructions. Press the swivel lever Swivel the seat Pull the seat upward (Two persons are required to remove the seat) Removing the battery and seat from the scooter is allowed before transporting.
-
Page 12: Specification
OPERATION OF CONTROL PANEL Function Descriptions FUNCTION SPECIFICATION Speed Sensor 7 Segment display (2.5 digits +1 decimal) + “km/h / mph” symbol High / Low / Turn Speed Indicated as “H” and “L” symbols Battery remaining capacity and charging indicator Power Indicator (6 squares + Battery Icon) Clock... -
Page 13: Operation Of Control Panel
OPERATION OF CONTROL PANEL Button & LED FUNCTION SPECIFICATION Function set “MODE” switch Left-Indicator control Right-Indicator control Parking Light control Headlight control Buttons High / Low speed switch Back-up lamps control Horn Left-Indicator (Green) Right- Indicator (Green) Parking (Red) Headlight (Blue) LED Indicators Warning (Red) Back-up lamp (Amber) - Page 14 OPERATION OF CONTROL PANEL Usage Conditions ITEM SPECIFICATION Voltage DC 24 V Operation Voltage DC 16 ~32 V Storage Temperature -40°C ~ 65°C Operation Temperature -10°C ~ 45°C 30° of elevation while scooter assembly Meter Angle at Handle Cover (LCD orientate to six o’clock) Characteristics Test General Characteristic Performance Test (20 ±...
- Page 15 OPERATION OF CONTROL PANEL High / Low / Turn Speed ITEM SPECIFICATION (1) Switch High / Low speed by pressing button once. (TRN as control signals) Press one time: High-speed <<--->> Low-speed (with memory storage). Operation Features (2) Take exterior turn-switch as determinant signal (TRN as control signals).
- Page 16 OPERATION OF CONTROL PANEL Power Indication ITEM SPECIFICATION Remaining Capacity Voltage (V) Scale Bar ＞ 25.42 ≦ 25.42 ≦ 25.12 ≦ 24.78 Battery Remaining Capacity ≦ 24.42 ≦ 23.88 Flashing Low-power Warning Warning LED Flashing...
- Page 17 OPERATION OF CONTROL PANEL Power Indication ITEM SPECIFICATION F l i c k e r 2 sec. Frequency Scale status only decrease, won’t increase. When the remaining capacity was less than 30%, warning sound (“Be-Be” O p e r a t i o n two short sounds) act at 5 seconds intervals.
- Page 18 OPERATION OF CONTROL PANEL Charge Indication ITEM SPECIFICATION R e m a i n i n g Voltage (V) Scale Bar Capacity (%) ＜ 25.44 ＞ 25.44 ＞ 26.18 Charge Indication ＞ 26.92 ＞ 28.5...
- Page 19 OPERATION OF CONTROL PANEL Charge Indication ITEM SPECIFICATION Increase Frequency 0.5 sec. (1) Scale status only decrease, won’t increase. Operation Character (2) Take the PIN3(CH3) of charger as determinant signal, enter「Charging Mode」when CH3 grounding (L), not only “KEY ON” or “KEY OFF”. Above scale bar status only for reference, must take the indicator of charger as the precise Remarks diagnosis.
- Page 20 OPERATION OF CONTROL PANEL CLOCK ITEM SPECIFICATION Tolerance (per day) ±2 sec. 『Hour：Min』mode :『AM 12:00』 Initial Setting Value Display range : AM12:00 ~ PM11:59 『Hour : Min』Setting m i l e (12-Hour format) mile When『Hour』is between 1 and 9 o’clock, displayed at 1~9. Odometer ITEM SPECIFICATION...
- Page 21 OPERATION OF CONTROL PANEL Headlight Control ITEM SPECIFICATION Take exterior headlight switch as determinant signal. (1) Switch on/off the head light by pressing button once, then LED will turn on/off Operation Feature simultaneously. (2) LCD backlights turn on / turn off with head light. When motor stop, the modulation down to 30% (Headlight) Power Saving Mode When motor act, 100% output power (Headlight)
- Page 22 OPERATION OF CONTROL PANEL Back-up Lamp Control ITEM SPECIFICATION Take exterior back-up lamp switch as determinant signal. Operation Feature (1) Switch on/off the head light by pressing button once, then LED will turn on/off simultaneously. (2) LCD backlights turn on / turn off with head light. (Control Mode) When motor changes from act (go forward) to stop, the lamp reinstated after flashing for 3 sec.
- Page 23 OPERATION OF CONTROL PANEL Indicators and Parking-Lamp Control ITEM SPECIFICATION Operation Feature Take exterior left-right indicators and parking-lamps switch as the determinant signal. Press button once, the right-indicator and turn off, left-indicator and flashing, warning sound act. Press again to turn off left-indicator. Control Mode Press button once, the right-indicator and...
- Page 24 Please consult with the local authorized dealer for safety belt installation. Two persons are needed to lift this power scooter – PF7 Never open the battery box. If you have any question, please contact your local authorized dealer or technical supports for further support and assistance.
-
Page 25: Battery & Charging Instruction
BATTERY & CHARGING INSTRUCTION We recommend that you use deep-cycle batteries that are sealed and maintenance free for your power scooter. Item BATTERY CHARGER (SWITCHING WARNING MODE) DO NOT operate this scooter with depleted batteries since Model 4C24080A the occupant could be stranded. Output Current(DC) 8A±5% Please remove the battery package from the scooter unit... -
Page 26: Charging Instruction
CHARGING INSTRUCTION OPERATING INSTRUCTION (1)Make sure the battery charger output voltage is the same as the connecting battery. (2)Plug in the power cord. LED indicates green flash when AC power on. (3)Connect the battery charger to the battery. (4)Start charging; please refer to 4. LED INDICATION Off-Board Charger Port. -
Page 27: Battery Instruction & Maintenance
BATTERY INSTRUCTION & MAINTENANCE Safety Precautions for Lead Acid Batteries Danger!! Failure to follow these precautions may result in serious risk. Read through the charger operating instruction before using it. ● If you use your scooter every day, please charge its batteries as soon as you finish using it for the day. Your scooter ●... - Page 28 BATTERY INSTRUCTION & MAINTENANCE Ensure that short circuits is not formed between the positive and negative terminals. Short circuits may lead to leaks, ● fires, or explosions. Do not use these batteries together with different type of the batteries such as Ni-MH or Ni-Cd and so on. It could ●...
- Page 29 BATTERY INSTRUCTION & MAINTENANCE BATTERY INSTRUCTION & MAINTENANCE Do not position batteries at more than 90° from the upright position as this can lead to leakage, fire, or explosion. ● Do not clean batteries with dry cloths or feather dusters as this can produce static electricity and cause explosions. Use ●...
-
Page 30: Maintenance
BATTERY INSTRUCTION & MAINTENANCE BATTERY INSTRUCTION & MAINTENANCE Do not use batteries in dusty environments as this can lead to short circuits (if batteries must be used in dusty ● environments they should be periodically inspected). Do not use batteries from different manufacturers in the same string. Small differences between the batteries can affect ●... - Page 31 BATTERY INSTRUCTION & MAINTENANCE BATTERY INSTRUCTION & MAINTENANCE To Change the batteries in your scooters: Remove the battery cover and captain seat. ● Unfasten the battery tie-down strap. ● Disconnect the battery harnesses properly. ● Disconnect the battery by opening two gray main connectors and also three smaller connectors (two white and one red). ●...
-
Page 32: Scooter Maintenance & Repair
SCOOTER MAINTENANCE & REPAIR Your power scooter is designed for minimal maintenance. However, like any motorized vehicle it requires routine maintenance. To keep your power scooters or power wheelchairs for years of trouble-free operation, we recommend you follow the following maintenance checks as scheduled. -
Page 33: Daily Checks
SCOOTER MAINTENANCE & REPAIR DAILY CHECKS 1. Visual check on the conditions of tires. 2. Inspect the battery condition meter on the controller to determine if batteries need to be charged. WEEKLY CHECKS 1. Your power scooter comes with standard pneumatic tires. If your power scooter comes with optional air tires, make sure to maintain the pressure of the tires between 30-35 psi. -
Page 34: Care And Maintenance
CARE AND MAINTENANCE Scooters require a minimal amount of care and maintenance. The following areas require inspection and/or care and maintenance. Wheel Assembly - Replace the Inner tube and outer tire Step: (1)When the tire tread has worn down to the safety line (circle means), please replace the tire immediately. Note1：The tread depth is less than 0.5mm, consider replacing. -
Page 35: Cleaning And Disinfection
CARE AND MAINTENANCE CLEANING AND DISINFECTION ⇨ Use a damp cloth and mild, non-abrasive cleanser to clean the plastic and metal parts of your scooter. Avoid using products that may scratch the surface of your scooter. ⇨ If necessary, clean your product with an approved disinfectant. Make sure the disinfectant is safe for use on your product before application. ⇨... -
Page 36: Wheel Replacement
CARE AND MAINTENANCE AXLE BEARINGS AND THE MOTOR/TRANSAXLE ASSEMBLY These items are all prelubricated, sealed, and require no subsequent lubrication. WHEEL REPLACEMENT If your scooter is equipped with pneumatic tires and you have a flat tire, you can have the tube replaced. If your scooter is equipped with a solid tire insert either the solid insert or the entire wheel must be replaced depending on the model. -
Page 37: Storing Your Scooter
CARE AND MAINTENANCE STORING YOUR SCOOTER If you plan on not using your scooter for an extended period of time, it is best to: ⇨ Fully charge its batteries prior to storage. ⇨ Disconnect the batteries from the scooter. ⇨ Store your scooter in a warm, dry environment. - Page 38 CARE AND MAINTENANCE Cleaning and Disinfection Use a damp cloth and mild, non-abrasive cleanser to clean the plastic and metal parts of your power scooter. Avoid using products that may ➢ scratch the surface of your power scooter. If necessary, clean your product with an approved disinfectant. Make sure the disinfectant is safe for use on your product before application. ➢...
- Page 39 TROUBLE SHOTTING & FAULT REPLAY S-Drive controller: Your scooter is fitted with S-Drive controller, which continuously monitors the operating conditions of your scooter. If it detects a problem it will indicate with error message by flashing light on the power ON/ OFF light. You must count the number of the flash, and see the list to check what kind of error has happened according to the number.
-
Page 40: Circuit Diagram
CIRCUIT DIAGRAM... - Page 41 BOM LIST...
-
Page 42: Warranty Declaration
WARRANTY DECLARATION Quality/ Warranty Declaration Products are fit for purpose and of excellent quality and performance. For valid warranty claims Heartway will, at their discretion, replace/ repair/ refund items mutually agreed to be defective. Heartway’s Warranty as Following: Frame: Two-year limited warranty Controllers: One-and-a-half-year limited warranty Electronic Components and Charger: One-year limited warranty Warranty Exclusion.
