NARROW HALLWAY SHOE CABINET ASSEMBLY INSTRUCTIONS

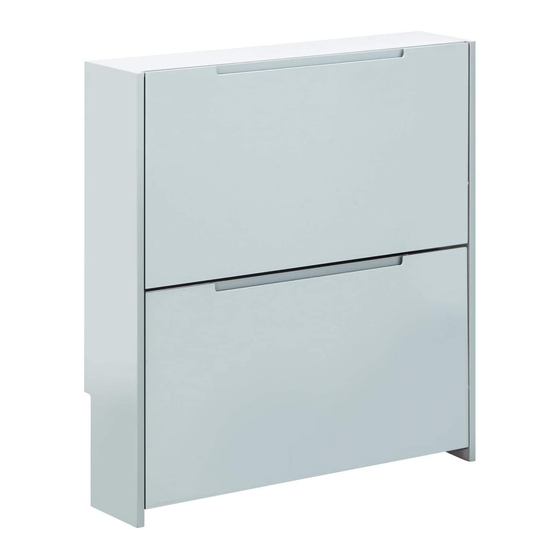

Thank you for purchasing the 2 Tier Narrow Hallway Shoe Cabinet.
Please read the instructions carefully to ensure safe operation of this product.
PLEASE READ this sheet prior to assembly to familiarise yourself with the various stages of construction.
Carefully open the pack supplied and check the contents against the parts and fittings check list. Do not
destroy any of the packaging until you are certain that you have all the necessary parts for the assembly.
CAUTION: There are small components used in the construction of this unit. These loose items should be
kept away from young children whilst assembling your unit to avoid the danger of choking.
Size:
72 x 17 x 75.6 cm (WDH)
Colour:
White or Grey
Finish:
High Gloss
Tools Required
Version 1 - 191119
PO No:____________
Number of persons
needed for assembly
Page 1 of 9
1 Hour
Set Up
Advertisement
Related Manuals for GFW NARROW HALLWAY
Summary of Contents for GFW NARROW HALLWAY
- Page 1 NARROW HALLWAY SHOE CABINET ASSEMBLY INSTRUCTIONS Thank you for purchasing the 2 Tier Narrow Hallway Shoe Cabinet. Please read the instructions carefully to ensure safe operation of this product. Size: 72 x 17 x 75.6 cm (WDH) Colour: White or Grey...
-
Page 2: Care Information
NARROW HALLWAY SHOE CABINET 2 TIER ASSEMBLY INSTRUCTIONS IMPORTANT - READ CAREFULLY - RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. INFORMATION This product is designed to hold 10Kg in total, spread evenly over the whole unit. Do not exceed this weight. - Page 3 NARROW HALLWAY SHOE CABINET 2 TIER ASSEMBLY INSTRUCTIONS Parts and Fittings Checklist Please check the pack contents before assembling the product. If any components are missing, please contact your retailer. The fittings pack contains small items that should be kept away from children.
- Page 4 NARROW HALLWAY SHOE CABINET 2 TIER ASSEMBLY INSTRUCTIONS Fittings (to scale) Code Item Quantity Cam Bolt (35mm overall) Cam Lock Shoe Storage Assembly Screws (3x16mm) Screw for Fixing Metal Bracket to Wall Plug (4x35mm) Wall Plug for Fixing Metal Bracket to Wall...
-
Page 5: General Hints & Tips
NARROW HALLWAY SHOE CABINET 2 TIER ASSEMBLY INSTRUCTIONS General Hints & Tips 25mm Stop when level Tighten STEP 1 For this step: Tools required Fittings required A x16 F x2 K x2 Version 1 - 191119 Page 5 of 9... - Page 6 NARROW HALLWAY SHOE CABINET 2 TIER ASSEMBLY INSTRUCTIONS STEP 2 For this step: Tools required Fittings required J x4 STEP 3 For this step: Tools required Fittings required iii. G x4 C x12 H x4 Version 1 - 191119 Page 6 of 9...
- Page 7 NARROW HALLWAY SHOE CABINET 2 TIER ASSEMBLY INSTRUCTIONS STEP 4 For this step: Tools required Fittings required B x8 STEP 5 For this step: Tighten Tools required Fittings required B x8 Version 1 - 191119 Page 7 of 9...
- Page 8 NARROW HALLWAY SHOE CABINET 2 TIER ASSEMBLY INSTRUCTIONS STEP 6 For this step: Warning: Always ensure the area to In the final position the cabinet is to be fixed, be drilled is free from hidden first place it against the wall.
- Page 9 NARROW HALLWAY SHOE CABINET 2 TIER ASSEMBLY INSTRUCTIONS Assembly Completed Your Narrow Hallway Shoe Cabinet is now completely asse mbled. Periodically check to ensure that the components are in their proper position, free from damage. Also, make sure the connectors are tight and secure.
