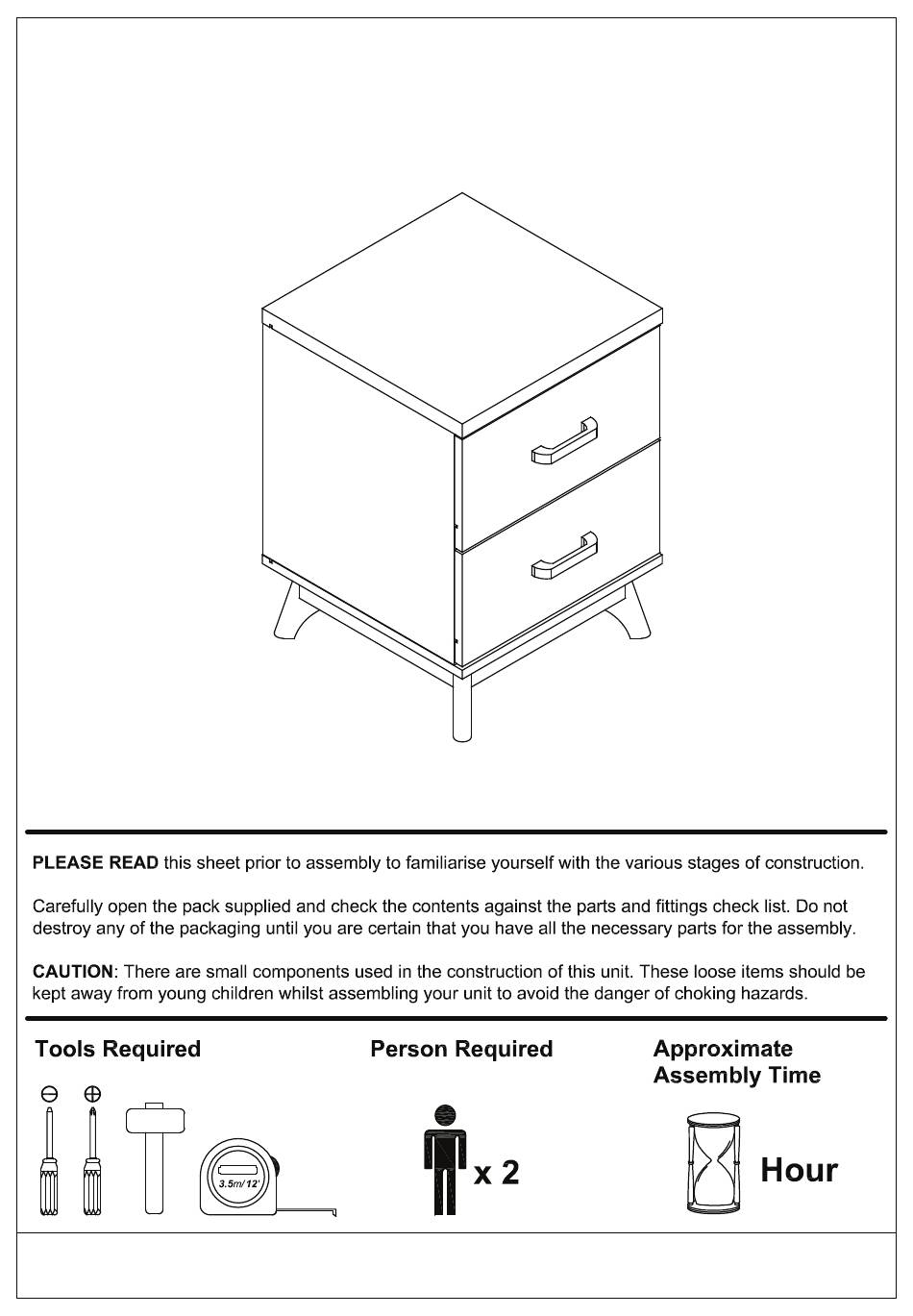

NORDICA 2 DRAWER BEDSIDE ASSEMBLY INSTRUCTIONS
2 DRAWER BEDSIDE.
Thank you for purchasing the
Please read the instructions carefully to ensure safe operation of the product.
Size: (W)
3
9
5
x (D)
3
9
5
x (H)556mm
Colour : White / Oak / Light Grey
1
Batch No : PO# XXXX
Page
Page 1 of 13
V1 3/19
Advertisement
Related Manuals for GFW NORDICA 2 DRAWER BEDSIDE
Summary of Contents for GFW NORDICA 2 DRAWER BEDSIDE
- Page 1 NORDICA 2 DRAWER BEDSIDE ASSEMBLY INSTRUCTIONS 2 DRAWER BEDSIDE. Thank you for purchasing the Please read the instructions carefully to ensure safe operation of the product. Size: (W) x (D) x (H)556mm Colour : White / Oak / Light Grey...
- Page 2 This product is intended for a maximum weight of 31kgs and drawer load capacity 5kg each. Do not exceed this weight. Due to the size of this product we recommend that is assembled in the room intended for use. When you ready to start, make sure that you have the right tools, plenty of space and a clean, dry area for assembly Unwrap all packaging materials and place the components on top of the carton box or not on a clean floor to prevent it from scratching.
- Page 3 Side Panel (L) (15 x 378 x 396mm) Side Panel (R) (15 x 378 x 396mm) Top Panel (25 x 395 x 395mm) Bottom Panel (15 x 395 x 395mm) Drawer Front (15 x 192 x 391mm) Drawer Side (L) (15 x 140 x 340mm) Drawer Side (R) (15 x 140 x 340mm) Drawer Back (15 x 140 x 308mm) Back Panel ( 2.5 x 372 x 405mm)
- Page 4 M5 x 29mm M6.3 x 40mm M4.7 x 38mm M4 x 30mm D8 x 30mm Minifix Bolt Unitar Screw CSK Screw CSK Screw Wooden Dowel M4 x 22mm M3.1 x 20mm M3.5 x 15mm D15 x 12mm D6 x 9mm Handle Screw Csk Screw Csk Screw...
- Page 5 STEP 1 12 x Parts Required Qty Panel (A ) Panel (B) Panel (F) Panel (G) Page 5 of 13 V1 3/19...
- Page 6 STEP 2 Parts Required Qty Panel (C) Panel (E) STEP 3 2 Set (CR) Parts Required Qty (CL) Panel (A) Panel (B) Page 6 of 13 V1 3/19...
- Page 7 STEP 4 Parts Required Qty Panel (A) Panel (B) Panel (D) STEP 5 Parts Required Qty Panel (Y) Page 7 of 13 V1 3/19...
- Page 8 STEP 6 Parts Required Qty Panel (C) STEP 7 Parts Required Qty Parts Required Q Panel (F) Panel (G) Panel (H) Page 8 of 13 V1 3/19...
- Page 9 STEP 8 Parts Requi red Q Panel (E ) Panel (Z) STEP 8 2 set Page 9 of 13 V1 3/19...
- Page 10 STEP 9 p p p 1 JCBC Screw (M6 x70mm) p p p 2 Spring Washer p p p 3 Flat Washer p p p 4 Allenkey Page Page 10 of 13 V1 3/19...
- Page 11 STEP 10 STEP 11 Page 11 of 13 V1 3/19...
- Page 12 STEP 12 Page 12 of 13 V1 3/19...
- Page 13 NORDICA 2 DRAWER BEDSIDE Your is now completely assembled Page 13 of 13 V1 3/19...
