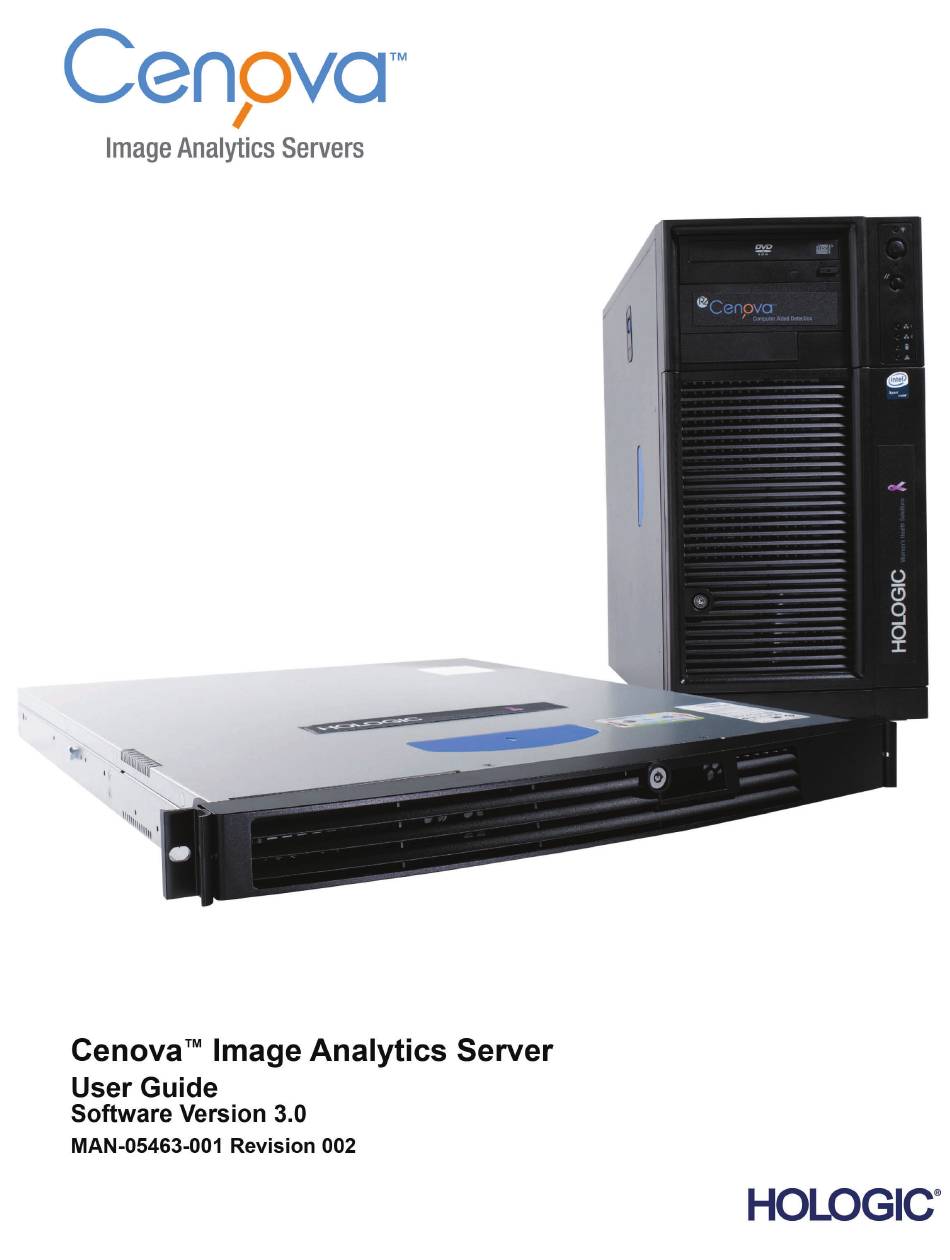

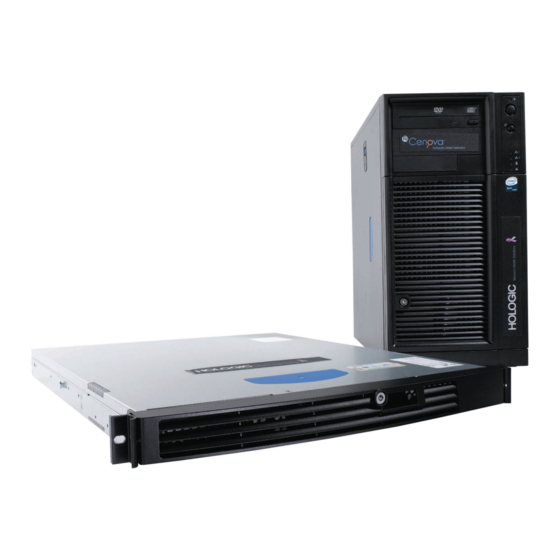

- Page 3 Cenova ™ Image Analytics Server User Guide For Software Version 3.0 Part Number MAN-05463-001 Revision 002 September 2019...
- Page 4 Inc., and/or its subsidiaries in the United States and/or other countries. All other trademarks, registered trademarks, and product names are the property of their respective owners. This product may be protected by one or more U.S. or foreign patents as identified at www.Hologic.com/patents.
-
Page 5: Table Of Contents
Cenova Image Analytics Server 3.0 User Guide Table of Contents Table of Contents 1: Introduction __________________________________________________________________1 Overview .................................. 1 Using This Guide ..............................2 Resources Available..............................2 Warnings and Precautions ............................. 4 1.4.1 System Operation ............................. 5 1.4.2 Installation and Maintenance ........................7 Warranty Statement .............................. -
Page 7: 1: Introduction
DICOM (Digital Imaging and Communications in Medicine) is an international standard used for developing, transmitting, printing, and archiving medical imaging information. Hologic uses the following DICOM standard designations for digital mammography images: DICOM Digital Mammography X-Ray Image – For Processing •... -
Page 8: Using This Guide
Cenova server. • Training: This user guide serves as the training for the Cenova server. The Hologic Applications team is available via remote training, should you feel your staff needs additional training for either the ImageChecker CAD or Quantra™... - Page 9 Cenova Image Analytics Server 3.0 User Guide Chapter 1: Introduction • Technical Support and Service: For support in North America contact: Toll Free: +1.877.371.4372 Email: BreastHealth.Support@hologic.com Hours: Monday – Friday, 6:00 AM – 5:00 PM, PT (GMT – 8:00) Website: www.hologic.com...
-
Page 10: Warnings And Precautions
Cenova Image Analytics Server 3.0 User Guide Chapter 1: Introduction Warnings and Precautions This guide uses the following conventions to provide technical and safety information of special interest. WARNING: An instruction that, if not followed, can result in a hazardous condition. -
Page 11: System Operation
The server is intended for use only by personnel who have read this guide • and received training on how to use the server. Hologic does not accept responsibility for injury or damage associated with improper or unsafe system operation. - Page 12 Cenova Image Analytics Server 3.0 User Guide Chapter 1: Introduction • This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 13: Installation And Maintenance
Do not install or repair the Cenova server. Only trained personnel, • authorized by Hologic, are qualified to install or repair the server. Disconnect power cord before moving or servicing. • Install the server behind the institution firewall for network security and •... -
Page 14: Warranty Statement
Hologic specifications or instructions, including Customer’s refusal to allow Hologic recommended Software upgrades; or (d) designated as supplied subject to a non-Hologic warranty or on a pre- release or “as-is” basis. Page 8... -
Page 15: 2: System Description
Full Field Digital Mammography Systems: Cenova processes two-dimensional digital mammography images originating from Full-Field Digital Mammography (FFDM) image acquisition systems. Cenova supports inputs from FFDM devices manufactured by Hologic Inc. (Danbury, CT), GE Healthcare (Waukesha, WI), and Siemens AG (Munich, Germany). •... -
Page 16: Input Ports And Application Licenses
Raw Synthesized 2D images. • Image objects sent to Cenova by any of the Hologic film-digitizing systems known as For Presentation images. Some DICOM image objects are not processed by the software, depending upon the application and mammography view shown in the image. -
Page 17: Results From Cenova
Chapter 2: System Description Results from Cenova Cenova sends its results to diagnostic review workstations (such as Hologic SecurView DX) and PACS devices. Depending upon the application, Cenova can transmit results in one or more forms. The table below shows output formats for each application. -
Page 18: Data Flows
Cenova Image Analytics Server 3.0 User Guide Chapter 2: System Description Data Flows This section describes how information flows among the various devices for the Cenova applications, as listed below. • ImageChecker CAD Data Flow on page 13 • ImageChecker CAD with DICOM 6000 Data Flow on page 15 •... -
Page 19: Imagechecker Cad Data Flow
Cenova Image Analytics Server 3.0 User Guide Chapter 2: System Description 2.3.1 ImageChecker CAD Data Flow The diagram below shows how information typically flows through systems with ImageChecker CAD. Note ImageChecker CAD also applies to synthesized 2D images. Raw synthesized 2D images are sent to the Cenova server. - Page 20 Cenova Image Analytics Server 3.0 User Guide Chapter 2: System Description ImageChecker CAD Data Flow Page 14 MAN-05463-001 Revision 002...
-
Page 21: Imagechecker Cad With Dicom 6000 Data Flow
CAD SR results format. If the review workstation or PACS does not support Mammography CAD SR, but does support DICOM 6000 overlays, a supplementary interface solution can be installed. For more information about the Hologic DICOM 6000 interface option, contact your Hologic Account Manager. - Page 22 Cenova Image Analytics Server 3.0 User Guide Chapter 2: System Description ImageChecker CAD with DICOM 6000 Overlay Data Flow Page 16 MAN-05463-001 Revision 002...
-
Page 23: Hologic Imaging Biomarkers Data Flow
Quantra results for either the 2D or 3D images, per Cenova configuration. Image Acquisition Device(s) 1, 2, 3: The Hologic FFDM device sends For Processing images to the Cenova server, and For Presentation images to the diagnostic review workstation(s) and PACS. The Hologic... - Page 24 Cenova Image Analytics Server 3.0 User Guide Chapter 2: System Description Hologic Imaging Biomarkers Data Flow Page 18 MAN-05463-001 Revision 002...
-
Page 25: Digitalnow Hd Data Flow
DigitalNow HD Data Flow The figure below shows the data flows among the various devices. Source Image Device 1: The Hologic film scanning system sends DigitalNow For Presentation images to the Cenova server. Cenova Server 2: The Cenova server processes the images and sends new DigitalNow HD For Presentation images to a PACS device. -
Page 27: 3: System Operation
The time-out period is not fixed; the server automatically adjusts the time- out period to maximize throughput. (For more information, contact Hologic Technical Support.) MAN-05463-001 Revision 002... -
Page 28: Server Startup And Shutdown
Server Assigns Images Received After Timeout Elapses to a New Case To reduce the possibility of multiple results, Hologic recommends that images for each patient examination be sent from the image acquisition system together at the close of the study and in rapid succession. -
Page 29: Shutting Down The Server
Cenova Image Analytics Server 3.0 User Guide Chapter 3: System Operation Cenova Server IP Address: ________________________________ Note Use these procedures when DICOM 6000 Interface is installed on a Cenova server. 3.3.1 Shutting Down the Server You might need to shut down the Cenova server if you are going to move the computer, or if you know the power is going out for a period of time. -
Page 30: Starting Up The Server
Cenova Image Analytics Server 3.0 User Guide Chapter 3: System Operation Click Shutdown. The server prompts ‘Are you sure…?’ Click OK to switch the server off. Note Physical access to the server is required to restore power from a shutdown. If the server is in a remote location, use Restart. -
Page 31: Accessing Unique Device Identifier (Udi) Information
Cenova Image Analytics Server 3.0 User Guide Chapter 3: System Operation Accessing Unique Device Identifier (UDI) Information Unique Device Identifier (UDI) is a unique numeric or alphanumeric code that identifies a medical device through distribution and use. UDI information is displayed in the About screen of the Cenova application. - Page 32 Cenova Image Analytics Server 3.0 User Guide Chapter 3: System Operation Click Hide Navigation Panel ( ) to expand the Case Manager viewing window. To browse and sort cases You can sort the values in any column by clicking any of the column headings (Patient Name, Patient ID, etc.).
- Page 33 Cenova Image Analytics Server 3.0 User Guide Chapter 3: System Operation Select one or more cases using the Case Manager search function. If you do not select any cases, then the server will export all Biomarker results. Click Export Biomarkers to display the File Download window.
-
Page 35: Index
Cenova Image Analytics Server 3.0 User Guide Index with DICOM 6000 - 15 Index inputs to Cenova - 9 Mammography CAD SC - 13 acquisition workstations - 15 Mammography CAD SR - 13 antivirus products - 7 PACS - 9, 19...
