User Guide

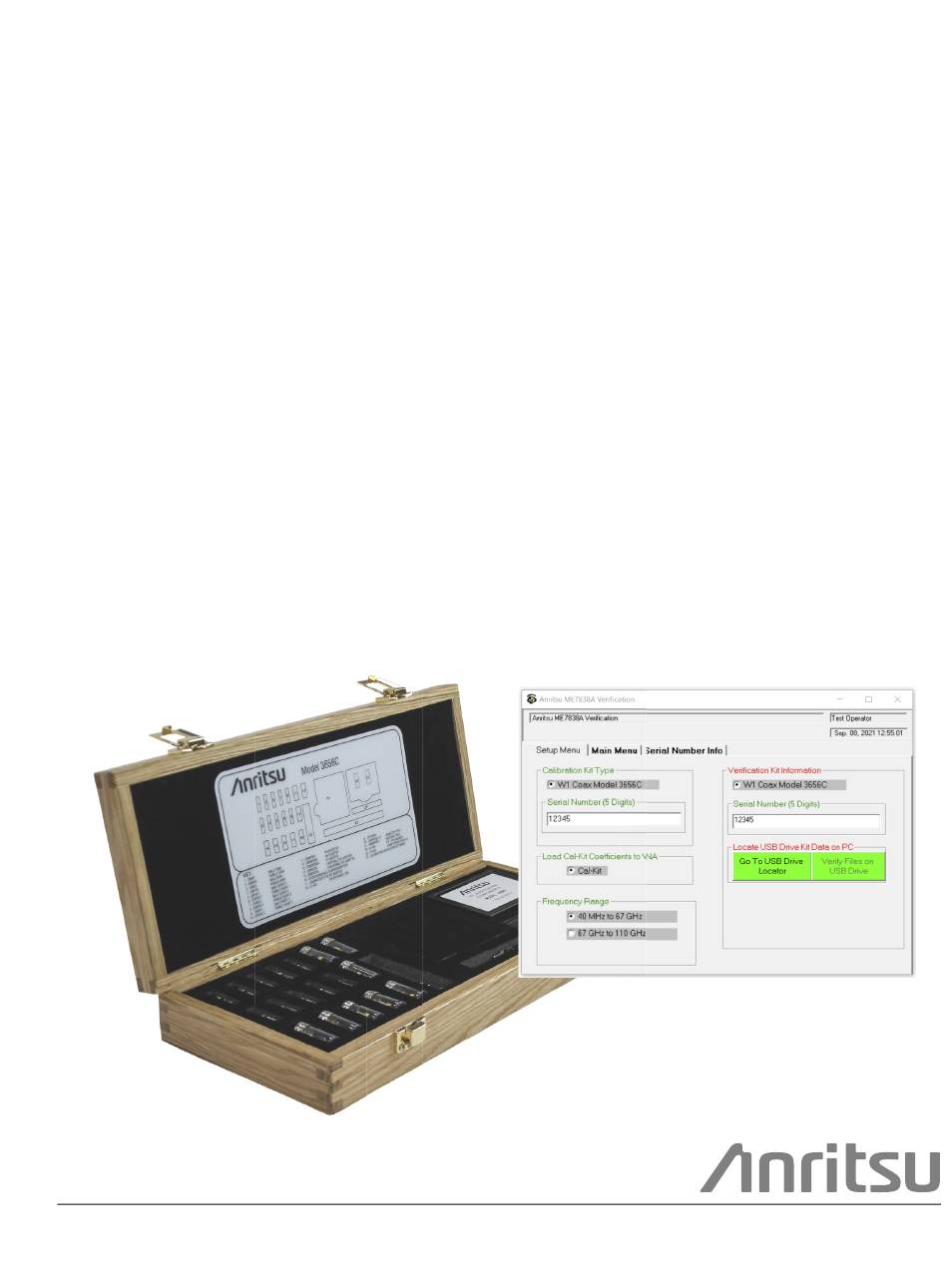

3656C W1 Calibration/Verification Kit
and 2300-616-R System Performance
Verification Software
VectorStar™ ME7838A/AX Modular Broadband VNA System with
3743A/AX mmWave Modules
VectorStar™ ME7838E/EX Modular Broadband VNA System with
3743E/EX mmWave Module
VectorStar™ ME7838A4/A4X Modular Broadband VNA System with
3743A/AX mmWave Modules
VectorStar™ ME7838E4/E4X Modular Broadband VNA System with
3743E/EX mmWave Modules
VectorStar™ ME7828A Standard Broadband VNA System
Anritsu Company
Part Number: 10410-00784
490 Jarvis Drive
Revision: A
Morgan Hill, CA 95037-2809
Published: September 2021
USA
Copyright 2021 Anritsu Company, USA. All Rights Reserved
http://www.anritsu.com
