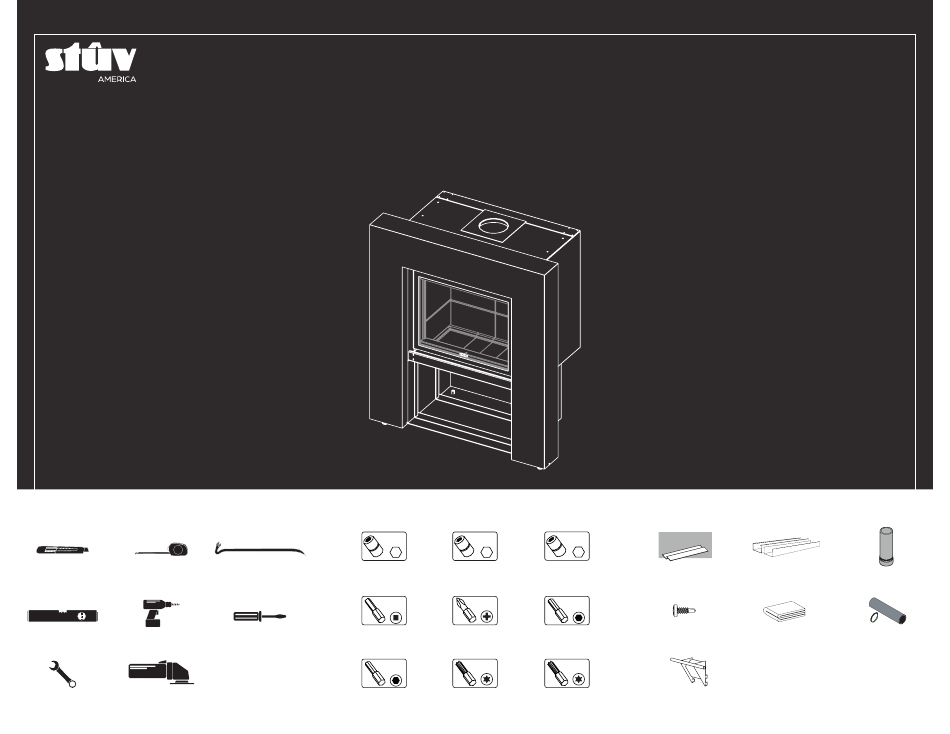

REQUIRED TOOLS
Knife with
Measuring
retractable blade
tape
Level
Impact drill
Wrench
Grinder
STÛV 16-Z
C O M B O V E R S I O N
NSTALLATION MANUAL
Keep these instructions for future reference
REQUIRED HARDWARE
7
mm
Crowbar
7 mm
hex socket
#2
Flat screwdriver
No. 2
square bit
3
mm
Torx 20 bit
8
10
mm
mm
8 mm
10 mm
hex socket
hex socket
PH2
5
mm
No. 2
5 mm
Phillips bit
hex bit
T20
T25
Torx 25 bit
Torx 30 bit
REQUIRED MATERIAL
Wall and floor
Metal
framing
finishing
Black no. 10 x 1/2"
Protective fabric or
self-drilling screw
cardboard
Stûv handle
EN
Chimney kit
Ø4'' clamping collar
and flexible duct
(option)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 16-Z and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stuv 16-Z

Summary of Contents for Stuv 16-Z

  • Page 1 STÛV 16-Z C O M B O V E R S I O N NSTALLATION MANUAL Keep these instructions for future reference REQUIRED TOOLS REQUIRED HARDWARE REQUIRED MATERIAL Knife with Measuring Crowbar 7 mm 8 mm 10 mm Wall and floor...
  • Page 2 Before installing this Stûv unit, contact the local authorities and/or your insurance company to obtain a building permit and inquire about all the requirements that need to be met. For information on all the applicable regulatory requirements, contact your local fire department before starting the installation. STÛV 16-Z...

  • Page 3: Table Of Contents

    Stûv 16-combo Dimensions Dimensions and Certification Warranty Details 5.2 Typical Installation 8.2 Warranty Form 3.2 Framework and Floor Protection 3.3 Wall Finishing 5.3 Masonry Chimney 3.4 Clearance 3.5 Fitted Television 3.6 Shelf Made of Combustible Material Air Supply STÛV 16-Z...

  • Page 4: Certification

    CERTIFICATION CERTIFICATION ..........................5 TECHNICAL SPECIFICATIONS ....................5 MARKING LABELS ......................... 6 SAFETY INSTRUCTIONS ......................7...

  • Page 5: Certification

    This can result The 16-combo is a 16-Z fireplace enhanced with a combo front panel, an H base The instructions for the installation in fire, property damage, bodily injury and a thin edge frame.

  • Page 6: Marking Labels

    MARKING LABELS PW9310302802_R5 MODELS/MODÈLES : - Fuel : Cord wood Only. - Combustible : Bois de corde seulement. CERTIFIED AND CONFORMS TO / CERTIFIÉ CONFORMÉMENT SELON : STÛV 16 16-58 16-68 The minimum clearances indicated bellow are from the insulated shell - Always close the door after the ignition.

  • Page 7: Safety Instructions

    SAFETY INSTRUCTIONS WARNING keeping a type A or ABC fire extinguisher on hand in the event of a chimney fire. 13. Do not connect this appliance to a chimney pipe serving another appliance, or to a hot air distribution system. It is essential that this Stûv be installed by a qualified professional.
  • Page 8 COMPOSANTS LIST OF COMPONENTS ....................... 9 AIR INTAKE ACCESSORIES ....................... 11 COMBO ACCESSORIES ......................12...

  • Page 9: Components

    LIST OF COMPONENTS Included Option STÛV 16-COMBO COMPONENTS...
  • Page 10 LIST OF COMPONENTS 16-58 COMBO 16-68 COMBO FW1501600001 FW1501600002 PRODUCT INCLUDED PRODUCT INCLUDED DESCRIPTION DESCRIPTION CODE OR OPTION CODE OR OPTION Insulated shell Insulated shell PW1499700012 Included PW1499700013 Included Fireplace Fireplace Included Included Flap Flap PW1499762403 Included PW1499762503 Included Base plate Base plate PW1499721100 Included...

  • Page 11: Air Intake Accessories

    AIR INTAKE ACCESSORIES CONNECTORS (BASE H) AIR DAMPER Follow the instructions provided with the H base. Follow the instructions provided with the air damper. Ø 4" WIRE 4’ 4" THREADED ROD M10 x 3 1/2’’ FINISHING WASHER M5 int. WASHER HANDLE 1’’...

  • Page 12: Combo Accessories

    COMBO ACCESSORIES THIN EDGE FRAME COMBO Front panel Follow the instructions provided with the thin edge frame 3 9/16" 5 3/4" THIN CODE EDGE 16-58 AW1300411700 22 7/8" 16-68 AW1300411800 26 3/4" 16-78 AW1300411900 30 3/4" 23 7/8" 46 3/4" 0,1345"...

  • Page 13: Dimensions

    DIMENSIONS STÛV 16-COMBO DIMENSIONS ....................14 FRAMEWORK AND FLOOR PROTECTION ................15 WALL FINISHING ......................... 16 CLEARANCE ..........................17 FITTED TELEVISION ........................18 SHELF MADE OF COMBUSTIBLE MATERIALS ..............18 AIR SUPPLY ..........................19...

  • Page 14: Stûv 16-Combo Dimensions

    STÛV 16-COMBO DIMENSIONS FRONT VIEW SIDE VIEW 22 13/16" 6" 17 1/16" 1/2" 1/8" 1 7/16" 2 13/16" 16 1/2" Glass Glass 46 1/2" 4 11/16" 16-COMBO 5/8" (± 3/4) 16-58 Z 31 3/16" 17 5/8" 22 7/8" 16-68 Z 42 1/4"...

  • Page 15: Framework And Floor Protection

    FRAMING AND FLOOR PROTECTION UNDER THE FIREPLACE All components added between the H base and the external dimensions of the NOTE insulated shell (V) must be made of a non-combustible material. Framing is not always perfectly level. We suggest that at least 1/4'' clearance be added to the dimensions listed in the table.

  • Page 16: Wall Finishing

    WALL FINISHING combustible Before installing, it is very important to know and calculate the thickness of the finished wall. All components affixed on the framework must be added together. non-combustible The total must not exceed 3" or 4", according to the chimney's diameter. mandatory 1/2"...

  • Page 17: Clearance

    CLEARANCE TOP VIEW TOP VIEW - CORNER risk zone combustible 90° non-combustible mandatory 10" One-way door 22 7/8" 98° 45° 45° 16 3/4" 48" MODEL This is an example of an installation in a 90° wall corner. This measurement may vary de pending 16-58 22 1/2"...

  • Page 18: Fitted Television

    FITTED TELEVISION SHELF MADE OF COMBUSTIBLE MATERIAL This configuration is at the user's discretion. It is possible to install a shelf or decorative object made of a combustible material Stûv America does not recommend this installation and starting at 28" from the top of the unit's opening. disclaims all liability.

  • Page 19: Air Supply

    COMBUSTION AIR The air required for combustion arrives directly from under the appliance via an outside air intake connector specially designed for the Stûv 16-Z model of the H Combustion air base (see next page for details).
  • Page 20 AIR SUPPLY COMBUSTION AIR (OPTIONS) Option 1: Connected to the outside air with a kit Option 2: Connected to the inside air, in another location near the fireplace. Although recommended, this setup is mandatory in some places. This air inlet must have a sufficient air intake (minimum ø 4"), from a crawl space, Whether it is connected to the fireplace or not, the duct leading to the outside air ventilated room (basement) or another room in which the air exchange will always must:...

  • Page 21: Installation

    INSTALLATION UNPACKING ..........................22 BASE PLATE AND CONNECTION .................... 24 REMOVING THE DOOR ......................25 INSULATED SHELL AND SMOKE OUTLET ................26 COMBO Front panel ........................30 ADJUSTING THE DOOR ......................31...

  • Page 22: Unpacking

    UNPACKING ITEMS ON PALLET IMPORTANT A. Fireplace The paint is not cured. It is therefore B. Insulated shell fairly fragile, but will harden after being C. H base heated a few times. Handle the unit with D. Combo front panel E.
  • Page 23 UNPACKING Step 4 Remove the top of the shipping base plate pallet that only contains the fireplace. Then remove each side, leaving only the base of the pallet. styrofoam Step 5 Cut the straps and carefully remove the protective plastic using a retractable knife.

  • Page 24: Base Plate And Connection

    BASE PLATE AND CONNECTION wall finishing combustible NOTE non-combustible Structures are not always perfectly non-combustible level. We suggest allowing at least mandatory 1/4" of clearance. 5/8" 5/8" 5/8" Step 10 Calculate the thickness of the min. min. min. finished wall (cement board + wall finishing) to position the appliance correctly.

  • Page 25: Removing The Door

    REMOVING THE DOOR Step 15 Locate the spring at the bottom of the door, near the rotation axis. Step 16 Disengage the spring by pushing it down and pulling it forward. Step 17 Slowly and gently lift the door to take it off its hinges.

  • Page 26: Insulated Shell And Smoke Outlet

    INSULATED SHELL AND SMOKE OUTLET NOTE The next steps are shown without the wall to make it easier to see. These steps must be followed after positioning the base plate at its final location. Step 21 Slide the unit onto the base plate previously installed at its final location.
  • Page 27 INSULATED SHELL AND SMOKE OUTLET Step 25 Place the two layers of insulation in the insulated shell and align the holes with the smoke outlet. Step 26 Pass the flange between the insulation and align the flange's three holes with the smoke outlet. CONNECTING FROM THE OUTSIDE Step 27 If it is possible to go through the outside to solidify the flange on the...
  • Page 28 INSULATED SHELL AND SMOKE OUTLET Profile's longest side Step 30 Go behind the smoke damper over the vermiculites and align the holes in the flange with the holes in the smoke outlet. Use a key to tighten the three bolts on the smoke outlet.
  • Page 29 INSULATED SHELL AND SMOKE OUTLET If the unit will be connected to a Ø7" INCLUDED chimney, do not install the transition plate. Ø6" Ø7" Put it in the recycling. If the unit will be connected to a Ø6" chimney, attach the transition plate to the insulated shell.

  • Page 30: Combo Front Panel

    COMBO Front panel Step 39 Install the levelling feet on the front panel. Screw in completely. The green arrows on the image indicate the location of the notches from which to hang the front panel. Step 40 Hang the front panel on the supports, positioning it at the back of the nuts.

  • Page 31: Adjusting The Door

    ADJUSTING THE DOOR Step 42 Put the door back on by inserting the hinges into the holes. Step 43 Check that the door is level and that it closes well. If so, re-engage the spring, then close and lock the door. If not, follow the steps on the next page to adjust the door.
  • Page 32 ADJUSTING THE DOOR Step 45 To make the door level, slightly loosen the 4 bolts holding the door hinges, at the top and bottom. A If the side opposite the rotation axis is too low, push the top hinge inward. If necessary, the bottom hinge can be pushed outward.
  • Page 33 ADJUSTING THE DOOR Step 49 To adjust the door's grip or airtightness, slightly loosen the 4 bolts holding the door filler plate reinforcements at the top and bottom. A If the grip is too tight, the door filler plate reinforcement cylinder has to be pushed outward.

  • Page 34: Chimney

    CHIMNEY DIMENSIONS AND CERTIFICATION ..................35 TYPICAL INSTALLATION ......................36 MASONRY HEARTH ........................37...

  • Page 35: Dimensions And Certification

    DIMENSIONS AND CERTIFICATION CHIMNEY DIAMETER CHIMNEY LENGTH Only used an insulated chimney pipe that complies with standard UL-103HT or It is recommended that the height of the chimney be between minimum 15' and maximum 45', measured from the top of the unit to the bottom of the rain cap. ULCS629.

  • Page 36: Typical Installation

    TYPICAL INSTALLATION INSTALLATION DIAGRAM INSTALLATION PROCEDURE Rain CAUTION Care must be taken during the chimney's installation. Shortcuts or 2’ min. 10’ compromises may result in safety hazards or even a fire. 3’ Flashing Carefully read the installation manual provided with your chimney before installing.

  • Page 37: Masonry Chimney

    MASONRY CHIMNEY The installation of a Stûv fireplace in a Once the mortar is in place, the joint ATTENTION masonry chimney still requires the between the chimney and the rigid liner If you plan to use an existing masonry To make a hole in the masonry chimney installation of a section of an chimney should not be visible in order to isolate chimney, you must have it inspected by...

  • Page 38: Use

    WOOD SELECTION ........................39 STARTING THE FIRE ........................40 RELOADING THE FIRE ......................... 42 ASH REMOVAL ..........................42...

  • Page 39: Fuel Selection

    FUEL SELECTION WOOD TYPES Humidity level Wood types Ash and beech are recommended as firewood as they dry quickly and are easy to find. They must be stored under a shelter immediately after being cut and split, otherwise they rot very quickly and lose their calorific value. They are easy to light and produce very bright, lively flames.

  • Page 40: Starting The Fire

    STARTING THE FIRE CAUTION - NOT TO BE USED CAUTION Read the safety instructions on page 7 before using the fireplace. Burn only firewood. Do not burn: Upon first use, some smoke or odours may be produced. Ventilate the room •...
  • Page 41 Allowing the door to slam could break the glass. Do not start a fire if the glass pane is broken. NOTE For this section, the 16-Z fireplace is shown for clarity. Step 2 Place the wood logs in the combustion chamber using the top-down lighting technique as shown for better combustion.

  • Page 42: Reloading The Fire

    RELOADING THE FIRE Step 1 Never leave the door handle on top of the cube shell or grip cylinder. It will get very hot and could damage the paint. Step 2 Add wood using the Stûv glove provided with the unit. Do not stir the wood or move it around while it is burning.

  • Page 43: Maintenance

    MAINTENANCE REGULAR MAINTENANCE ......................44 REPLACING COMPONENTS ...................... 45 CREOSOTE AND CHIMNEY-SWEEPING ................. 48...

  • Page 44: Regular Maintenance

    REGULAR MAINTENANCE CAUTION Do not conduct maintenance while the unit is hot. During the heating season, have your chimney regularly inspected by a profes sional. Wait until it has cooled completely. It is recommended that you have your chimney swept twice per heating season to prevent creosote build-up.

  • Page 45: Replacing Components

    REPLACING COMPONENTS Step 1 The next steps explain how to disassemble the parts that make up the door. DESCRIPTION 16-58 16-68 16-78 complete door PW1400804000 PW1400804100 PW1400804200 door frame PW1499721000 PW1499723400 PW1499725800 glass pane and seal kit PW1400601400 PW1400601500 PW1400601600 glass pane seal PW1400503300 PW1400503400 PW1400503500 gasket clamps and nuts...
  • Page 46 REPLACING COMPONENTS Step 5 Place the door on a protective fabric to protect the paint and to be able to continue disassembling it more comfortably. For all maintenance performed on the door's components, follow the next steps until you reach the component to service or change.
  • Page 47 REPLACING COMPONENTS Step 11 Only remove the upper pivot if it is damaged. If needed, use a 10 mm hex socket to unscrew the door. Step 12 The spring is supported in two places. The straight pin is behind a screw (use a 3 mm Allen key) while the spring's cylinder is wrapped around a screw (5 mm) and a pivot (10 mm).

  • Page 48: Creosote And Chimney-Sweeping

    CREOSOTE AND CHIMNEY-SWEEPING Chimney-sweeping steps Creosote is a thick, black residue that forms due to incomplete combustion of wood. Wait until the unit has cooled completely It can be brittle or smooth (vitrified). During slow combustion, wood releases tar before performing maintenance. droplets that condense on the cold chimney lining.

  • Page 49: Warranty

    WARRANTY WARRANTY DETAILS .........................50 WARRANTY FORM ........................51...

  • Page 50: Warranty Details

    WARRANTY DETAILS WARRANTY COVERAGE WARRANTY TERMS Stûv appliances are guaranteed against: This document must be returned to us, duly completed, within one month of the date of the dealer's invoice to the buyer. • manufacturing defects • paint defects on the visible parts of the unit Duration of the warranty: •...

  • Page 51: Warranty Form

    WARRANTY FORM THE APPLIANCE THE DEALER Serial no. : _______________________________________________________ Company: __________________________________________________________ Model: _________________________________________________________ Name: ______________________________________________________________ Invoice date : ____________________________________________________ Address : ___________________________________________________________ Installation date : ________________________________________________ ____________________________________________________________________ Tel no.: _____________________________________________________________ *The serial number can be found on the marking label at the bottom of the combustion chamber.
  • Page 52 Stûv fireplaces are designed by: Stûv sa – Belgique stuv.com Rue Jules Borbouse n°4 B-5170 Bois-de-Villers And manufactured in North America by: Stûv America inc. – Canada stuvamerica.com 34, Boulevard de l’ A éroport Bromont QC Canada J2L 1S6 1-514-396-3463 | 1-866-487-7888...
