Chapter 2. Installing and Set Up

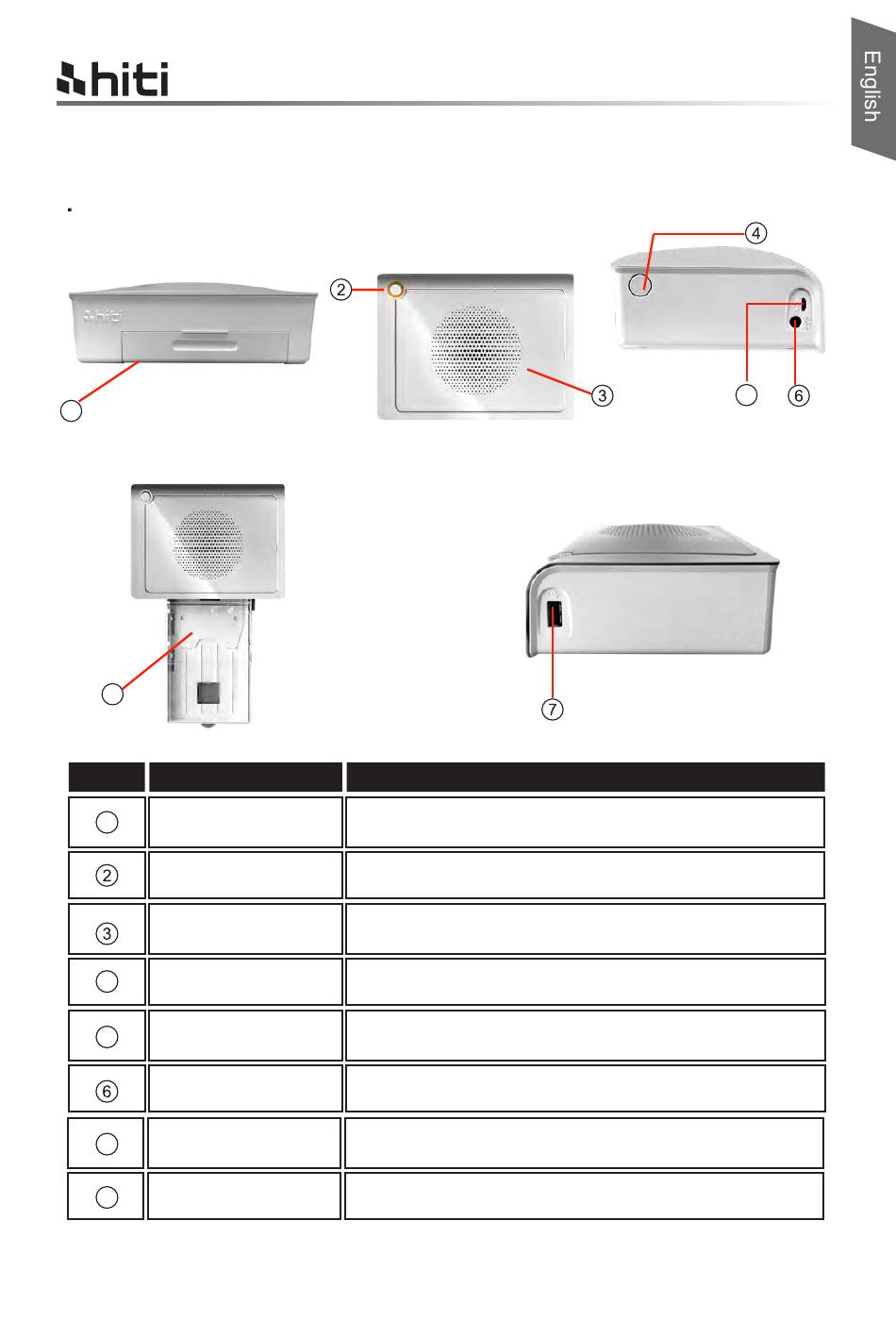

Parts Name and Function

<Front View>
1
8
NO.
Name
Paper Cassette Door
1
Power Switch
Heat Ventilation
Ribbon Door Switch
4
USB Port
5
Power Connector
7
USB Slot
Paper Cassette
8
<Front View>
Push down the door then open it. Place paper cassette here.
This switch turns on/off the power of the printer.
Don't block this to avoid over heating the printer.
Open the cover when replacing the ribbon, or when performing
maintenance.
For link PC.
To be used to connect the power cord.
To be used to connect card reader adapter.
Input/output the paper.
2 - 2
User manual
<Side View>
<Side View>
Function
5
