Summary of Contents for Gerima SMA 20 APF-25.L1

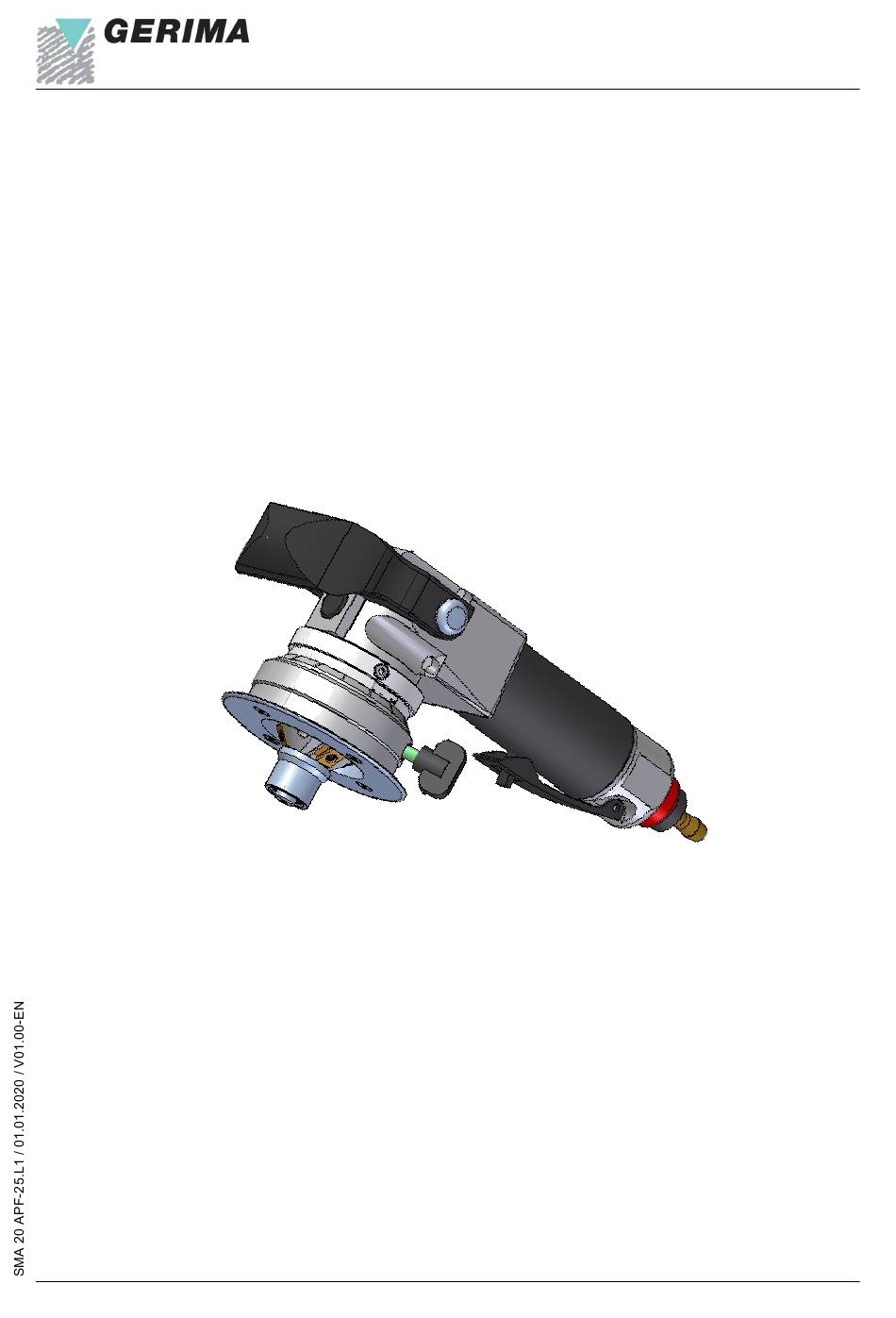

- Page 1 © Operating manual Hand-held beveling machine SMA 20 APF-25.L1 Operating manual...
-
Page 2: Preface
All rights, including translation, are reserved. No part of this manual may be reproduced in any form (print, photocopy, microfilm or any other process) without the written permission of GERIMA GmbH, St. Wendel, reproduced or distributed using electronic systems, duplicated or distributed. -
Page 3: Table Of Contents
© Directory Preface…….…………………………………………. Imprint…...………………………………………….… 2 Foreword……………………………………………... Signs and symbols ..……………………………….. Technical specification………………….………… 6 Technical data….…………………………………….. 6 Shipment….………………………….……………….. 6 Noise emission value…..………………………….… 7 Power-on time…………..………………………….… 7 Safety instructions……….………………………… 8 Basic safety instructions…………….………………. 8 Intended use………………………...……………….. 14 Settings………………...……………………..……… 15 Replacing guiding roll……………...………………... 15 Replacing carbide inserts…………………………... -
Page 4: Foreword
Please contact GERIMA for the latest product in- formation. Servicing and repair issues If you need to make a guarantee claim, if the... -
Page 5: Signs And Symbols
© Signs and symbols Please read the manual before using the ma- The information in this manual are indentified chine ! as follows: This manual has been created so that you can Danger! work with your device quickly and safely. Here is a Warning of person, machinery or brief guide on how you should read this manual: environmental damage. -
Page 6: Technical Specification
1-3 mm Aluminium 1-5 mm Handle Spindle lock Motor Air connection On-/Off-switch Height clamping lever Milling head with guiding roll Guiding plate Vernier scale Shipment 1x Basic machine SMA 20 APF-25.L1 with milling head 1x Manual 1x Torx wrench T15... -
Page 7: Noise Emission Value
© Technical manual Noise emission values in accordance with the DIN Power-on time (POT): EN 60745-1 standard: To avoid damaging the machine, it is essential to be monitor how long the machine has been Noise emission [dB (A)] Value operating continuously (‘power-on time’). certainty Emission sound pressure The compressed air that powers a pneumatic drive... -
Page 8: Safety Instructions
© Basic safety instructions Duties of the operator The following instructions must be The SMA 20 APF-25.L1 was designed read carefully in order to avoid ac- and built taking into account a risk cidents to persons and / or property... - Page 9 © Basic safety instructions Operator qualifications and protection of ma- Protective clothing: chine operators: When working on/with the machine always wear: The term ‘operator’ is used here to mean any per- son who operates, adjusts, services and/or repairs the machine. ear protectors, The employer is obliged to inform the operator about security relevant standards and to verify...
- Page 10 • Always use genuine GERIMA spare parts and acces- sories. • Repair: The machine may only be repaired by appropriately qualified technical staff or by the manufacturer’s service personnel.
- Page 11 © Basic safety instructions Pneumatically-driven power tools Regular pre-start safety precautions are generally not insulated in a way that would allow them to come into Perform the following pre-start proce- contact with an electrical power dures each time you plan to use the source.
- Page 12 © Basic safety instructions Maintenance: Maintenance or service work must • If protective guards or other safety devices have only be performed once the machi- to be removed for servicing or maintenance work, ne’s moving parts have come to they must be reinstalled immediately after the rest.
- Page 13 • The machine is covered to prevent the risk of Any alterations to the machine contact with moving parts. must have been approved by GERIMA GmbH. • However residual risks still exist. This also applies to the welding of the component parts.
-
Page 14: Intended Use
25.L1 may only be used for work and materials des-cribed in the section ‚intended use‘. Do not use the machine to work on materials containing asbestos! The SMA 20 APF-25.L1 is a hand-held, pneumati- cally powered beveling machine intended: • For machining workpieces made of steel,... -
Page 15: Settings
© Settings Replacing guiding roll / carbide inserts Adjusting the 4-fold insert type MV and the 8 bevel and radius inserts (type SX and RSX): Before replacing the machine must be The bevel and radius carbide inserts of type SX and RSX disconnected from the compressed air each have 8 cutting edges. -
Page 16: Setting The Bevel Length
© Settings Setting the bevel length: Adjusting radius: The procedure for setting the radius and bevel is identi- a leg length = bevel length a cally. Please note that only the position of the upper b leg length = bevel length b edge of the radius can be adjusted by rotating the guid- C bevel width ing plate. -
Page 17: Operating Mode
© Operating mode General: Handling: Two-handed operation: Damages caused by wrong power supply! Whatever the position of the • Check values air connection. The air machine, always use two hands to control the machine. pressure must correspondend with the specifications on the type plate of the machine. -
Page 18: Maintenance
• Wear protective gloves when changing or readjusting the carbide inserts! Repair must only be carried out by a GERIMA trained technician! Improperly repaired machines are hazzard! • Increased risk of injury • Machine does not function correctly! Hot carbide inserts and milling head! •... -
Page 19: Disposal
© Disposal Disposal of components removed from the ma- chine: All machine parts, operating and auxiliary materials must be dis- posed of in accordance with the applicable statutory provisions. -
Page 20: Technical Documentation
© Technical documentation SMA 20 APF-25.L1 0202-02-01-00-00-04 name of part order-nr. Spacer wing screw 0101.112.15-00016 Steel bush 0101.112.15-00006 Counter-ring 0101.112.15-00005 Guiding plate 0101.112.15-00004 Spindle with milling head 0109.112.16-00019 Bevel gear 0109.112.16-00005 Disc spring 0109.112.16-00008 Spacer 0109.112.16-00004 Flange 0109.112.16-00003 Gear box 0109.112.16-00001... -
Page 21: Terms Of Guarantee
GERIMA or by one of its authorized specialist retailer or representatives. Guarantee claims can be made only for genuine GERIMA parts and if the machine was used for its intended purpose. The guarantee does not cover, in particular: operational wear and tear; improper use;... -
Page 22: Ec Declaration Of Conformity
66606 St. Wendel Germany Product SMA 20 APF-25.L1, 20-234-*****, 00001-99999, 2020 We hereby declare that the above mentioned product complies with all relevant provisions of the Machinery Directive 2006/42/EC. The above product fulfills the relevant requirements of the following guidelines: ►...
