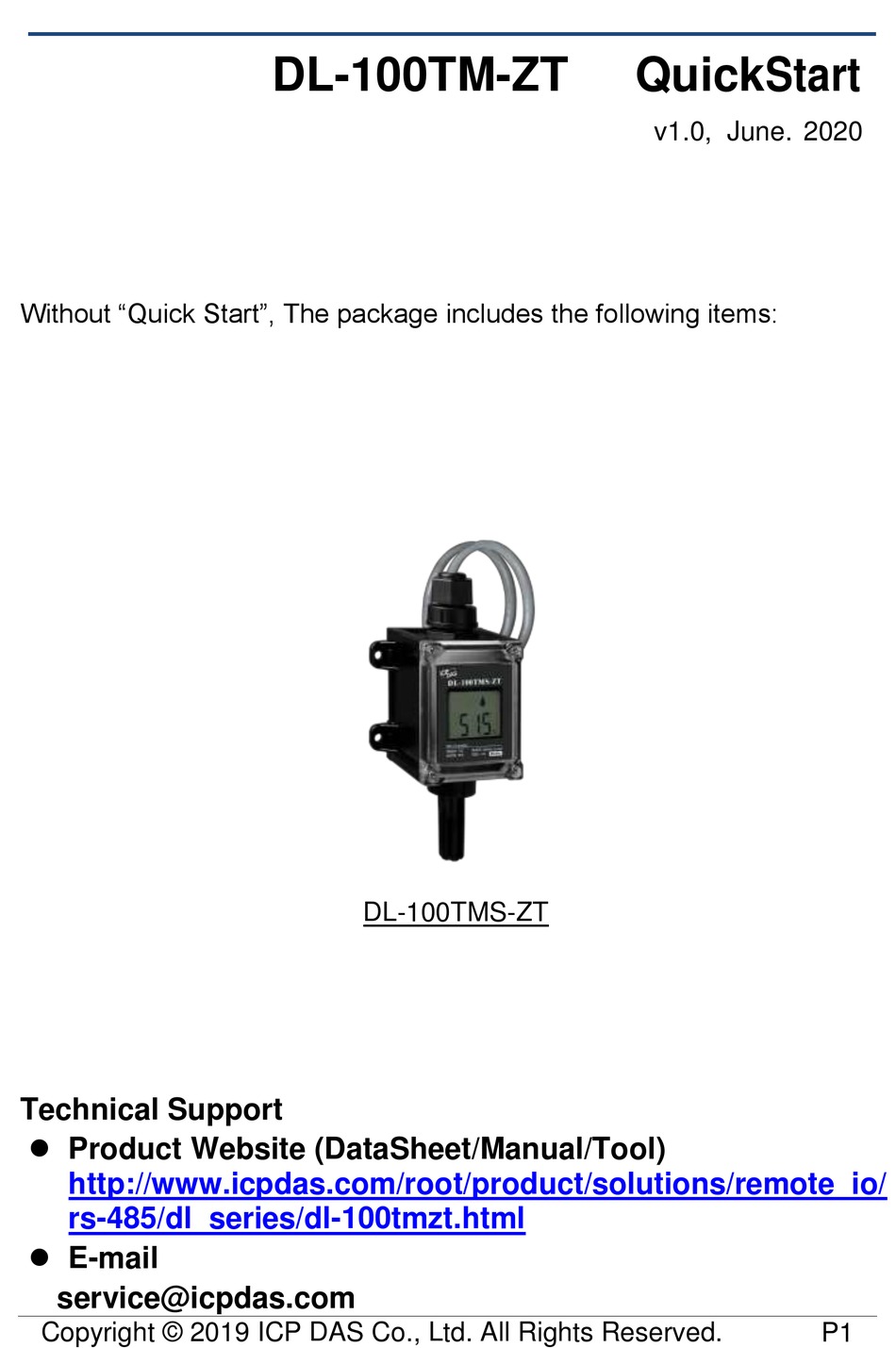

Without "Quick Start", The package includes the following items:
Technical Support
 Product Website (DataSheet/Manual/Tool)
http://www.icpdas.com/root/product/solutions/remote_io/
rs-485/dl_series/dl-100tmzt.html
 E-mail
service@icpdas.com
Copyright © 2019 ICP DAS Co., Ltd. All Rights Reserved.

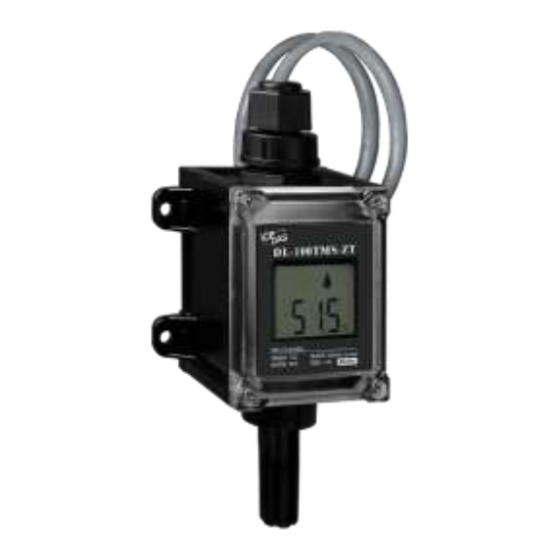

DL-100TM-ZT
DL-100TMS-ZT
QuickStart
v1.0, June. 2020
P1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DL-100TM-ZT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ICP DAS USA DL-100TM-ZT

Summary of Contents for ICP DAS USA DL-100TM-ZT

  • Page 1 DL-100TM-ZT QuickStart v1.0, June. 2020 Without “Quick Start”, The package includes the following items: DL-100TMS-ZT Technical Support  Product Website (DataSheet/Manual/Tool) http://www.icpdas.com/root/product/solutions/remote_io/ rs-485/dl_series/dl-100tmzt.html  E-mail service@icpdas.com Copyright © 2019 ICP DAS Co., Ltd. All Rights Reserved.
  • Page 2 Introduction to the Configuration Parameters 1) Pan ID： group identity for a ZigBee network, and must the same for all devices in the same ZigBee network. (Setting Range : 0x0000~0x3FFF) 2) Address/Node ID： distinguish identity of a specific the ZigBee module, and must be unique for each device connected the same ZigBee network.
  • Page 3 Communication Test As the ZigBee network is controlled by the ZigBee coordinator, the ZT-2550/ZT-2570 (ZigBee coordinator) must be configured first. Please refer to documents shown below for full details of how to configure these devices. Once configuration of the ZigBee coordinator has been completed. Set the ”Pan ID”...
  • Page 4 An overview of the Utility After launching the Utility, the program interface will be displayed, as shown below:  Clicking either the“Connection->Connect->RS-232/RS-485” menu option or the icon will create a connection from the serial port.  Clicking either the “Connection->Disconnect” menu option or the icon will disconnect the connection between the PC and the DL- 100TMS-ZT.
  • Page 5 Connecting to the DL-100TMS-ZT Module 1. Clicking either the “Connection->Connect->RS-232/RS-485” menu option or the “ ” button will open the connection selection menu, as shown below: 2. Select your COM port number and set the Model Name selection to the DL-100TMS-ZT. If you are connecting to a new module, the default address will be 01.
  • Page 6 Retrieving Records After a connection has been established between the PC and the DL- 100TMS-ZT, you can retrieve log data via the Utility software. The procedure is as follows: Either click the “Functions->Get Records” menu option or the icon and the “Load Log Data” window will be displayed. Click the “Get”...
  • Page 7 Configuration After a connection has been established between the PC and the DL-100TMS-ZT, the DL-100TMS-ZT can be configured by either clicking the “ ” icon or the “Functions->Configuration” menu option. The “Configuration” window will then be displayed showing the current configuration of the module. If any of the values are changed, click the “Set”...
