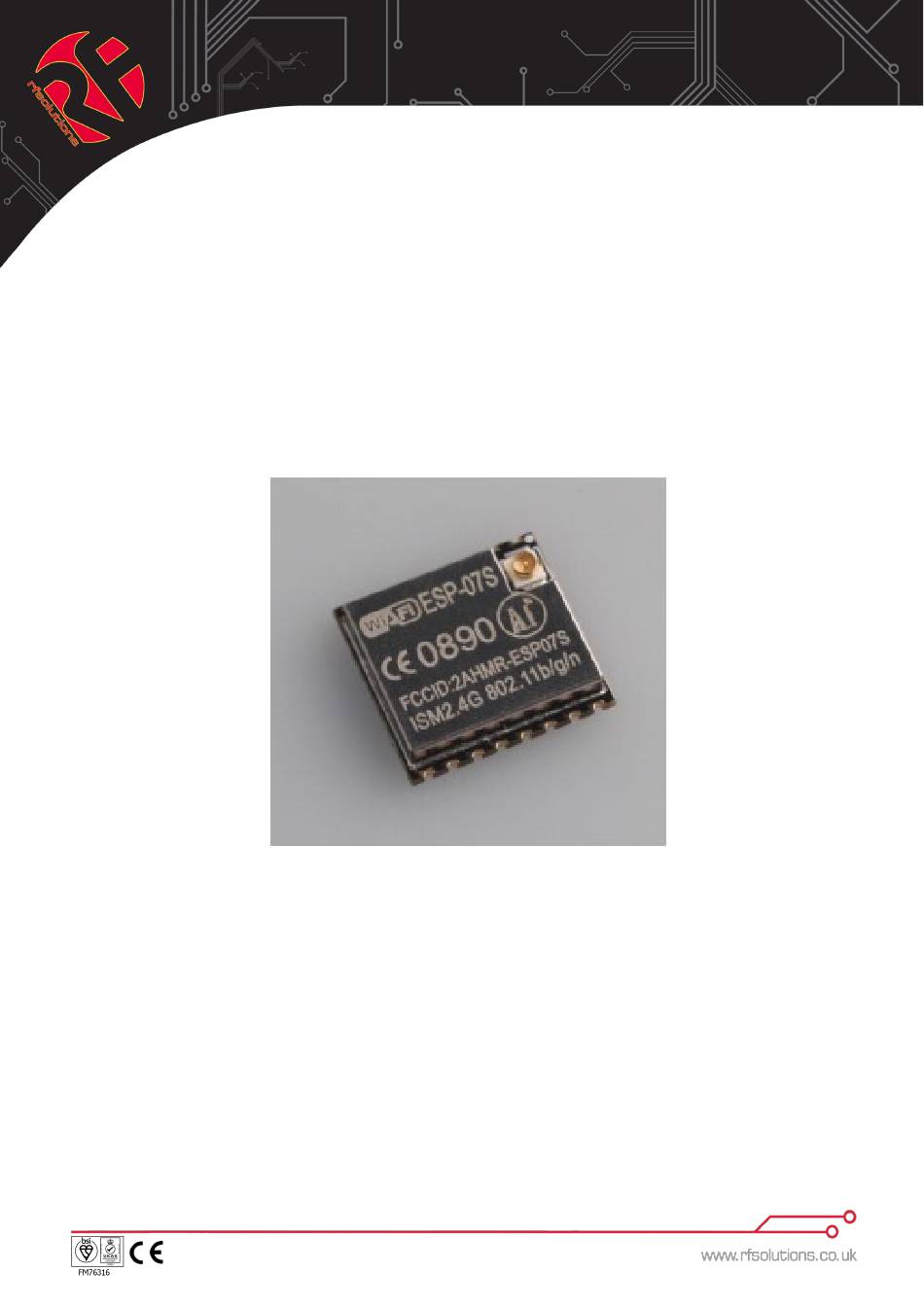

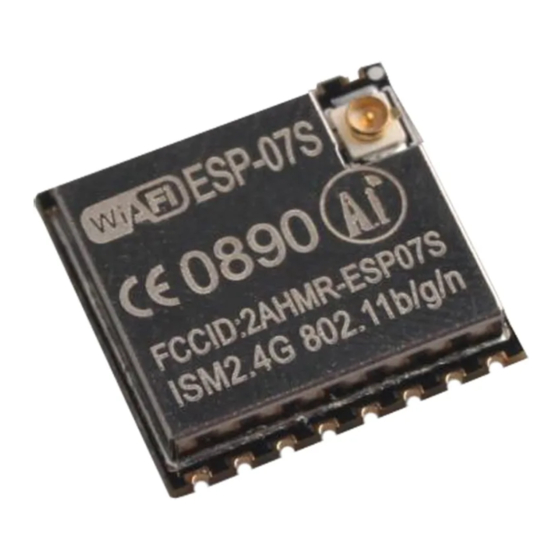

- Page 1 ESP-07S ESP-07S User Manual REV:1.0 2016.3.15 ESP-07S User Manual DS-ESP07S-1...
- Page 2 This RF Solutions radio module meets the essential requirements of the European Radio Equipment Directive 2014/53/EU and has been tested to European Harmonised Standards and CE marked where space allows. A copy of the EU Declaration of Conformity can be located on the RF Solutions Website, www.rfsolutions.co.uk/certification-i59.
-
Page 3: Table Of Contents
ESP-07S Table Of Contents 1.Preambles........................2 1.1.Features......................3 1.2.Parameters.......................4 2. Pin Descriptions………………………………………………………………………………………………...5 2.1. Interfaces………………………………………………………………………………………………6 2.2. Pin Mode………………………………………………………………………………………………..8 2.3. Antenna Interface…………………………………………………………………………………….8 3. Package information and OEM installation method……………………………………………………..9 3.1 Package information………………………………………………………………………………...10 3.2. OEM Installation method………………………………………………………………………..10 4. Absolute Maximum Ratings………………………………………………………………………………...11 4.1. Recommended Operating Conditions…………………………………………………………...11 4.2. -
Page 4: Preambles
ESP-07S User Manual 1. Preambles ESP-07S WiFi module is developed by AI-Thinker Co.,Ltd, core processor ESP8266 in smaller sizes of the module encapsulates Tensilica L106 integrates industry-leading ultra low power 32-bit MCU micro, with the 16-bit short mode, clock speed support 80 MHz, 160 MHz, supports the RTOS, integrated Wi -Fi MAC/BB/RF/PA/LNA, on-board antennas. -
Page 5: Features
ESP-07S ESP-07S User Manual 1.1. Features • 802.11 b/g/n • Integrated low power 32-bit MCU • Integrated 10-bit ADC • Integrated TCP/IP protocol stack • Integrated TR switch, balun, LNA, power amplifier and matching network • Integrated PLL, regulators, and power management units •... -
Page 6: Parameters
ESP-07S 1.2. Parameters Table 1 below describes the major parameters. Table 1 Parameters DS-ESP07S-1... -
Page 7: Pin Descriptions
ESP-07S 2. Pin Descriptions There are altogether 16 pin counts, the definitions of which are described in Table 2 below. Table 2 ESP-07S pin description DS-ESP07S-1... -
Page 8: Interfaces
ESP-07S 2.1. Interfaces Table 3 Descriptions of Interfaces DS-ESP07S-1... -
Page 9: Pin Mode
2.2. Pin Mode Table 4 Pin Mode 2.3. Antenna interface ESP-07S Modules through the IPEX interface to connect to external antenna. The antenna must be in line with the 802.11g/802.11b IEEE standard, and the antenna parameters are shown in the following table:... -
Page 10: Package Information And Oem Installation Method
3. Package information and OEM installation method The external size of theESP-07S WiFi module is 16mm*17mm*3mm, as is illustrated in Figure 4 below: Figure 3 Top View of ESP-07s WiFi Module Figure 4 Dimensions of ESP-07s WiFi Module Table 5 Dimensions of ESP-07s WiFi Module... -
Page 11: Package Information
Figure 5 Module PCB Footprint 3.2. OEM installation mathod Using ESP-07S module Please reference in front of the package information in the Layout on the main board for OEM factory. Please pay more attention Module's direction and the antenna close to the edge of board is better, the Components and layout should not be on the bottom of antenna then soldering the module. -
Page 12: Absolute Maximum Ratings
4.2. AT commend Testing 1.Hardware connection As shown in Figure 7, ESP-07S via a USB to TTL Tool connected to the computer, software tool through the serial port on the computer can be AT instruction test Figure 7 ESP-07S connect with computer... -
Page 13: At Command
ESP-07S 4.3.AT commend Espressif AT instruction set functions and methods of use AT commands set is divided into: Basic AT commands, WiFi related AT commands, TCP / IP AT 4.3.1.AT Command Description Table 8 Each Command set contains four types of AT commands. - Page 14 ESP-07S Table 9 basic AT commands AT – Test AT startup The type of this command is "executed". It's used to test the setup function of your wireless WiFi module. DS-ESP07S-1...
- Page 15 ESP-07S AT+RST – Restart module The type of this command is "executed". It’s used to restart the module. AT+GMR – View version info This AT command is used to check the version of AT commands and SDK that you are using, the type of which is "executed".
- Page 16 ESP-07S ATE – AT commands echo This command ATE is an AT trigger command echo. It means that entered commands can be echoed back to the sender when ATE command is used. Two parameters are possible. The command returns "OK" in normal cases and "ERROR" when a parameter other than 0 or 1 was specified.
- Page 17 Disclaimer: Whilst the information in this document is believed to be correct at the time of issue, RF Solutions Ltd does not accept any liability whatsoever for its accuracy, adequacy or completeness. No express or implied warranty or representation is given relating to the information contained in this document. RF Solutions Ltd reserves the right to make changes and improvements to the product(s) described herein without notice.
