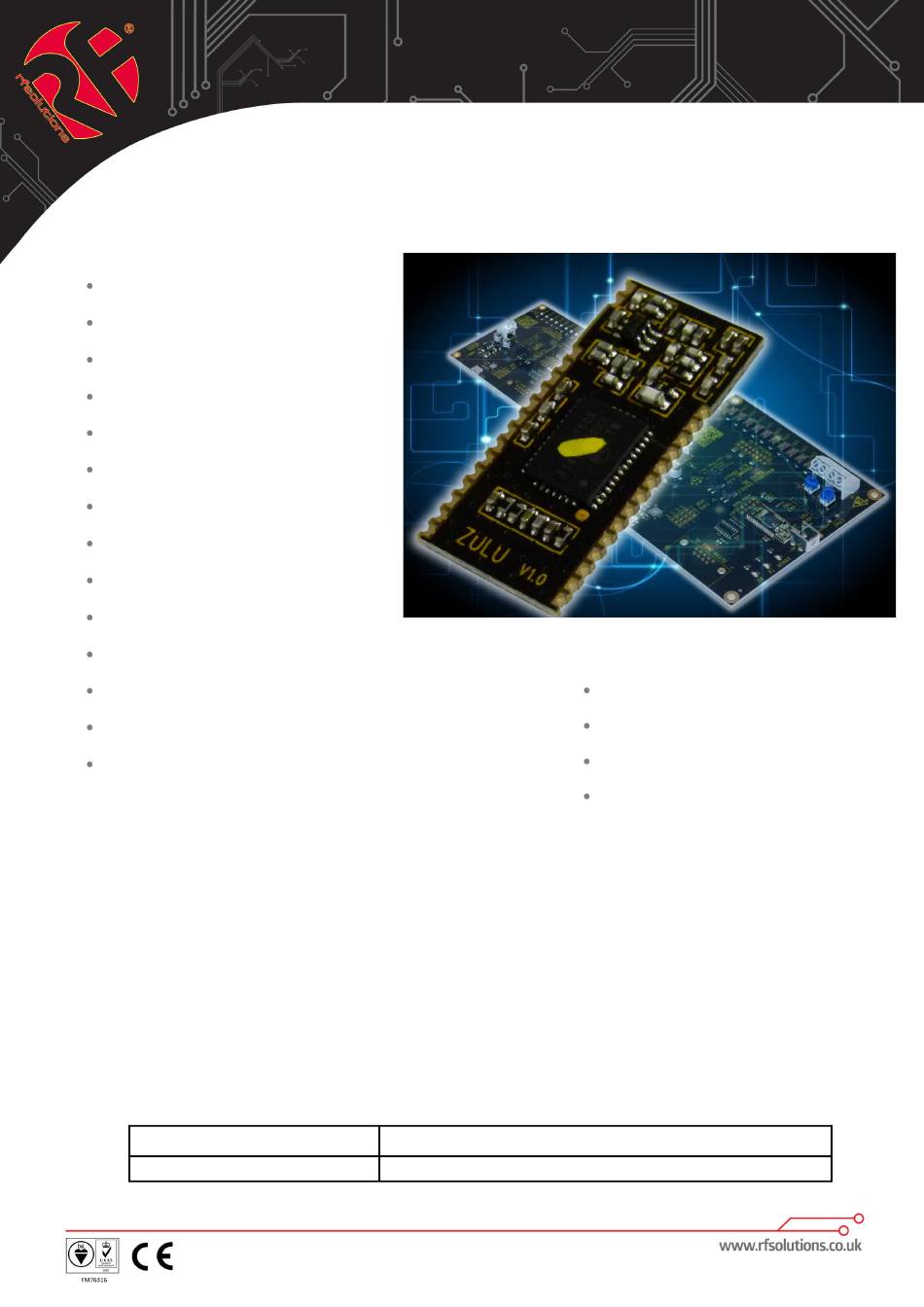

RF SOLUTIONS ZULU T Manual

Smart radio telemetry module

Advertisement

Quick Links

Features
Small Form Factor
2 Analogue I/O (10bit)
Data Reception LED
Secure Data Protocol
Easy Pairing Process
One to One operation
M100mW Transmit Power
10 Digital Input / Outputs
Range up to 2,000 Metres
Minial external components
868MHz Operating Frequency
10 Channel Transceiver Module
CE Compliant, Licence Free Use
Ultra Low Voltage 2.2—3.6V
Description
The ZULU-T Telemetry Module provides a reliable Transceiver based industrial Re-
mote Switch with up to 2,000 metres range. Two modules are combined to provide
a simple network of radio switching.
Each unit is supplied ready to operate, once paired with another Module a remote
control system is created
Connections for Power, antenna and Input / Output are the only connections re-
quired.
Ordering Information
Part No
ZULU-T868-SO
Smart Radio Telemetry Module
Radio Telemetry Module SMT Package
DS-ZULUT-7
Applications
Remote Control
Remote Networking
Remote Switching
Remote Traffic Lights
Description
ZULU T

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZULU T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RF SOLUTIONS ZULU T

  • Page 1 ZULU T Smart Radio Telemetry Module Features Small Form Factor • 2 Analogue I/O (10bit) • Data Reception LED • Secure Data Protocol • Easy Pairing Process • One to One operation • M100mW Transmit Power • 10 Digital Input / Outputs •...
  • Page 2 ZULU Telemetry Pin out Zulu An / Dig XTAL 1 I/O 1 XTAL 2 I/O 2 IRQ_OUT I/O 3 I/O 10 I/O 9 I/O 4 I/O 8 I/O 5 IRQ_IN I/O 6 I/O 7 WD_SEL CH_SEL ERR_LED TX_RX_SEL RF_TX_LED RF_RX_LED Pin Description Pin No Name...
  • Page 3 ZULU Telemetry General Description of Operation Each module can be set to act as a ‘ Transmitter’ or ‘Receiver’ A remote telemetry system is achieved when two modules are paired together, as transmitter (ZuluTx) and receiver (ZuluRx). Each time an input changes on the ZuluTx, it will transmit the status of its inputs to the paired ZuluRx(s).
  • Page 4 ZULU Telemetry The following descriptions apply to the Zulu Module in TRANSMITTER Mode When configured as a Transmitter the ZULU Module will automatically default to low power sleep mode until any input state change takes place. On receipt of an input state change the ZuluTx will transmit a packet showing the status of all inputs (multiple state changes can take place simultaneously).
  • Page 5 ZULU Telemetry Transmitter example application circuit XTAL Analogue Inputs ZULU-T RF Fault TX LED RX LED SWITCH INPUTS 8 - 10 SWITCH INPUTS 3 - 7 Notes: Watchdog is ON Channel selected is 869.500 Analogue inputs active...
  • Page 6 ZULU Telemetry The following descriptions apply to the Zulu module in RECEIVER mode Analogue outputs (pin 4, 5) If enabled the ZuluRx outputs PWM signal. The PWM may be used directly (e.g. for motor control) The PWM signal is a proportional digital output representing the analogue input. If the analogue input is 0V then the PWM output will be ‘0’...
  • Page 7 ZULU Telemetry Receiver Application Circuit XTAL Analogue Outputs ZULU-T LEARN RF Fault TX LED RX LED LED OUTPUTS 8 - 10 LED OUTPUTS 3 - 7 Notes: Watchdog is ON Channel Selected is 869.500 Analogue outputs active...
  • Page 8 ZULU Telemetry Application Example ONE to ONE Transmit Input 1 - 10 Zulu Zulu Output 1 - 10 Signal Transmitter Receiver Acknowledge In this application the outputs at the receiver will track the inputs at the transmitter. The receiver outputs are acknowledged back to the transmitter. If required the Watchdog can be enabled to inform the user if the RF system has a fault.
  • Page 9 ZULU Telemetry Mechanical Dimensions ZULU Notes 1. Pins 1.27mm pitch 2. Pin Dims 0.4mm sq 3. All dims in mm Range The antenna choice and position directly controls the system range. Keep it clear of other metal in the system. The best position by far, is protruding vertically from the top of the product. This is often not desirable for practical reasons and thus a compromise may be needed.
  • Page 10 ZULU Telemetry Technical Specifications Absolute Maximums Temperature Range: Storage –50 to +125 DC Characteristics Parameter Units Supply Voltage Voltage on any Input VDD >2.2V VDD <2.2V VDD + Max Input power (thro Antenna) Parameter Typical Units Supply Voltage Operating Temperature Zulu Tx Supply Current: When Transmitting When sleeping...
  • Page 11 ZULU Telemetry System Characteristics Parameter Typical Units Time from Zulu Tx input activation time to Zulu RX out- put Activation Time from Zulu Tx input activation time to Zulu RX out- put Relaxing...
  • Page 12 ZULU Telemetry ZuluT Evaluation Board The ZULU EVAL Boards provide a ready to go platform which can be used for evaluation or complete projects. These boards demonstrate the capabilities of ZULU Modules. Features Provides a Radio Link with; • 10 Digital Channels •...
  • Page 13 ZULU Telemetry ZuluT Evaluation Board Configuration Antenna Antenna Status LED’s Analogue ZULU Outputs Analogue ZULU RS232 Comms Module RS232 Comms (PWM) Inputs Module (not fitted as (not fitted as standard) standard) Comms Selector Link Comms Selector Link All centre to RS232, or All centre to RS232, or All Centre to USB All Centre to USB...
  • Page 14 ZULU Telemetry Pairing Process In order to pair together a Transmitter and receiver, On the Receiver Briefly press the Receiver ‘Sync Button’ Briefly operate any of the transmitter buttons For all other operation please refer to the ZULU Module operation Analogue in / PWM Out When using the analogue RF link, by turning the potentiometer VR1 or VR2, outputs 1 and 2 at the receiver will vary between 0 and 100% PWM, the EVAL-T board has these outputs con-...
  • Page 15 ZULU Telemetry Zulu evaluation board receiver schematic...
  • Page 16 ZULU Telemetry Zulu evaluation board transmitter PCB layout...
  • Page 17 RF Solutions Ltd shall not be liable for any loss or damage caused as a result of user’s own determination of how to deploy or use RF Solutions Ltd’s products. Use of RF Solutions Ltd products or components in life support and/or safety applications is not authorised except with express written approval.
