Protekt PROTON 1 Instruction Manual

ANCHOR DEVICE

INSPECTIONS

1. Before each use a visual inspection should be carried out by the user to
ensure that the anchor point is in good condition.
2. When the anchor point was engaged in fall arresting than it should be
replaced with new one or submited under detailed inspection carried out
by qualified technician. The result of inspection and permission to further
Usage shall be recorded in the Operational Sheet.
3. It is recomended that the device is periodically inspected every 12 month
after installation. The periodic inspection must be carried out by a
qualified person. The result of inspection must be recorded in the

Operational Sheet.

4. During the inspections any mechanical, chemical or thermal defects
(cracks, deformation or corrosion) should be taken into account.
5. When the anchor point was engaged in fall arresting than it should be
replaced with new one or submited under detailed inspection carried out
by qualified technician. The result of inspection should be recorded in the
Operational Sheet.
6. In case of any doubt please contact with producer or its authorised
representatives.
OPERATIONAL SHEET
Ref. number:
Name of the device:
Serial number:
Manufacturing date:
Technical examinations and repairing history
Reason for servicing /
Date Device's condition after servicing
repair
Producer:
PROTEKT, 93-403 Łódź, ul.: Starorudzka 9, tel.: (+48 42) 680 20 93,
fax.: (+48 42) 680 20 93, e-mail: protekt@protekt.com.pl
PROTON
User name:
Installation date:
Name and
Next
signature of
examination
competent
date
person

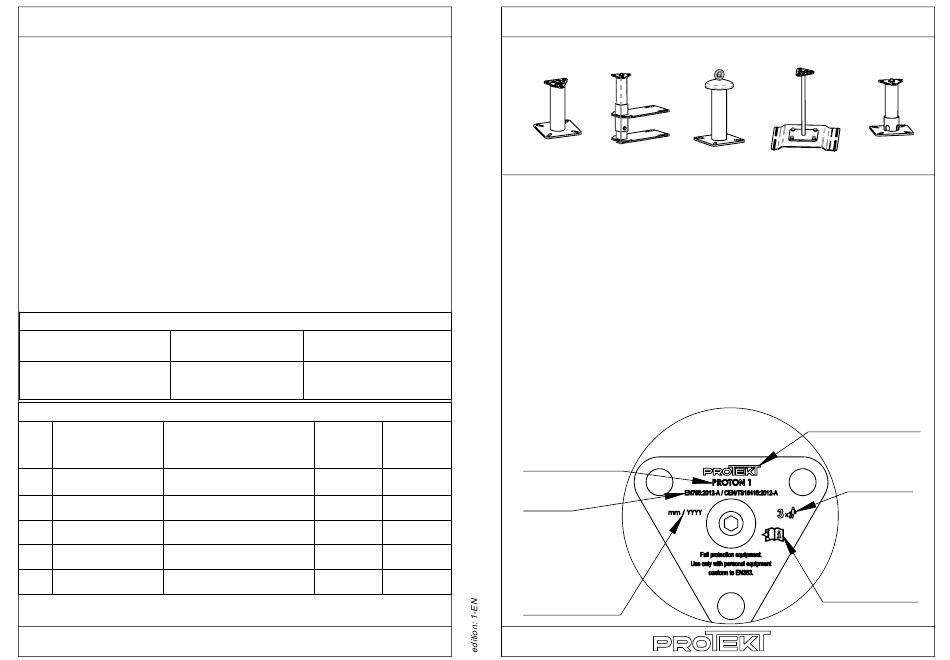

ANCHOR DEVICE
INSTRUCTION MANUAL
PROTON 1 PROTON 2 PROTON 3

PRODUCT DESCRIPTION

The PROTON range of anchor devices conform to the EN 795:2012 standard
and the FprCEN/TS16415:2012. They are designed for connecting a personal
equipment against falls from a height to a fixed construction.
The PROTON1 (as well 2, 4, 5) consist of a pole of different height equipped
with rotating plate on it's top with three openings for conecting a personal
equipment. The PROTON3, on the pole top, is eqipped with flange and single
eye for connecting personal equipment. The PROTONs: 1; 2; 3; 5 are made of
hot deep galvanized steel. The PROTON4 is made of stainless steel.
Number of simultanous users: 3person for PROTON 1;2;4;5 and 1 person for
PROTON 3.
The PROTONS anchor devices may be installed by a people who have enough
knowledge and experience in this subject. The method of installation shoud
strictly follow the "PROTON installation manual" guidelines.
MARKING
Name of the device /
reference number
Standards
Batch number
=manufacturing date
(month / year)
PROTON
PROTON 4 PROTON 5
Producer (or distributor)
marking
Number of
simultaneous
users
Read the Instruction
Manual before use.
