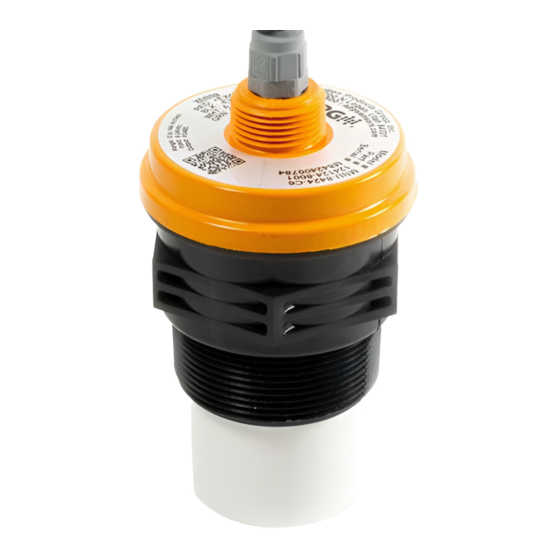

  • Page 1 LPU-2428 & RST-4101 User Manual Doc #9004794 Rev A, 04/2016 1.888.610.7664 www.calcert.com sales@calcert.com...

  • Page 2: Table Of Contents

    Calibration ............................. 6-7 Repair and Returns .......................... 7 Chapter 4: Programming and Parameter Configuration ........8 Software User Interface ......................8-9 Programming the LPU-2428 ......................10 Basic Setup Menu ........................11-12 App. Setup Menu ........................13-31 4-20 Setup Menu ........................31-32 Calibration Menu ........................33-34 Advanced Menu ........................

  • Page 3: Introduction

    The default Application setting for the LPU-2428 is Distance, which will work in a wide variety of settings. The LPU-2428 has several additional Application settings that can be configured to meet your needs.

  • Page 4: Chapter 1: Specifications And Options

    Chapter 1: Specifications and Options • Dimensions NON-METALLIC STRAIN RELIEF 3/4" NPT THREADS 7.25 2.65 [184.15 mm] [67.24mm] 2" NPT 5.06 THREADS [128.59 mm] ø2.79 [70.78mm] ø2.00 [50.80 mm] 1.888.610.7664 www.calcert.com sales@calcert.com...

  • Page 5: Specifications

    • Specifications Performance Operating Range 1 - 25 ft. (0.3 - 7.6 m) on liquids and hard, flat surfaces 1 - 10 ft. (0.3 - 3 m) on bulk solids Analog Output (Sensor) 4-20 mA Analog Output (Module) Beam Pattern 9°...

  • Page 6: Chapter 2: Installation And Removal Procedures And Notes

    Chapter 2: Installation and Removal Procedures and Notes • Tools Needed Tools are not necessary for installing the LPU itself. If you are using a stand pipe to mount your LPU, you will probably need tools to install the stand pipe, but not for the LPU. •...

  • Page 7: Mounting Instructions

    • Mounting Instructions Mounting your LPU is easy if you follow a few simple steps: • Never over-tighten the sensor. • Always screw in your sensor by hand to avoid cross-threading. Thread failure can be a problem if you damage threads by over-tightening them or by crossing threads. IMPORTANT: Do not over tighten! The sensor should be threaded in only hand tight.

  • Page 8: Software Installation

    Chapter 3: Maintenance • General Care Your LPU-2428 ultrasonic sensor is very low maintenance and will need little care as long as it was installed correctly. However, in general, you should: • Avoid applications for which the sensor was not designed, such as extreme temperatures, contact with incompatible corrosive chemicals and fumes, or other damaging environments.

  • Page 9: Troubleshooting

    • Trouble Shooting Should you have problems with your LPU-2428, here are some troubleshooting steps. • Check the received signal strength (just to left of the three Help buttons in the lower right corner. See Figure 4.32). If the signal strength is low, alternately increase Pulses and Sensitivity (Figure 4.30) until the signal strength improves.

  • Page 10: Repair And Returns

    • Repair and Returns Should your LPU-2428 ultrasonic sensor require service, please contact the factory via phone, email, or online chat. We will issue you a Return Material Authorization (RMA) number with instructions. • Phone: 888-525-7300 •...

  • Page 11: Chapter 4: Programming And Parameter Configuration

    Chapter 4: Programming and Parameter Configuration • Software User Interface The LPU-2428A / RST-4101 software user interface is one screen with five primary areas (See Figure 4.1). In the upper left are seven Menu Buttons. These buttons control the information viewed in the Display Area.
  • Page 12 Button is clicked, the corresponding Status Box will show the progress of the communication (See Figure 4.4b). The Signal Strength display indicates the strength of the communication signal being received back by the software from the LPU-2428. Figure 4.3a Figure 4.3b 1.888.610.7664...

  • Page 13: Programming The Lpu-2428

    • Programming the LPU-2428 The following menus are used to program the LPU-2428 in conjunction with the LPU-2428A software. Menus in the LPU-2428A software are navigated by clicking on the desired Menu Buttons on the left side of the screen.

  • Page 14: Basic Setup Menu

    • Basic Setup Menu Figure 4.4 Menu Parameter Options Basic Setup Units Default = Feet Feet Inches Meters Millimeters Units selects the units of measurement that will be used throughout the setup process and also for display. The selected units also determines the resolution of the display and the outputs. The resolution is: feet 0.01, inches 0.1, 0.000 meters, and millimeters 1.
  • Page 15 Fast Immediate Response Time selects the desired response time of the LPU-2428. The response time represents the maximum rate of change in target level that the sensor will accurately display. A faster response time correlates to a less stable output.

  • Page 16: App. Setup Menu

    1.00 - 25.00 Feet 12.0 - 300.0 Inches 0.305 - 7.620 Meters 305 - 7620 Millimeters Max Distance sets the maximum operating range for the LPU-2428. 25 feet is the physical limit of the LPU- 2428. (See Figure 4.5) 1.888.610.7664 www.calcert.com...
  • Page 17 Figure 4.6 App Function Parameter Options Level Full Distance Default = 1.00 Feet 0.00 - 25.00 Feet 00.0 - 300.0 Inches 0.000 - 7.620 Meters 000 - 7620 Millimeters Full Distance sets the distance from the sensor to the full level of the vessel being monitored. (See Figure 4.6) App Function Parameter Options...
  • Page 18 Figure 4.7 App Function Parameter Options Volume Tank Type Default = SCTWHB SCTWCB Tank Type selects the general geometry of the tank. (See Figures 4.7-4.11) App Function Parameter Options Volume Full Distance Default = 1.00 Feet 0.00 - 25.00 Feet 00.0 - 300.0 Inches 0.000 - 7.620 Meters 000 - 7620 Millimeters...
  • Page 19 Figure 4.8 App Function Parameter Options Volume Empty Distance Default = 25.00 Feet 1.00 - 25.00 Feet 12.0 - 300.0 Inches 0.305 - 7.620 Meters 305 - 7620 Millimeters Empty Distance sets the distance from the sensor to the empty level of the tank being monitored. (See Figures 4.7-4.11) App Function Parameter...
  • Page 20 Figure 4.9 App Function Parameter Options Volume Radius of Hemi Default = 1.00 SCTWHB 0.00 - 25.00 Feet 00.0 - 300.0 Inches 0.000 - 7.620 Meters 000 - 7620 Millimeters Radius of Hemi sets the radius of the hemisphere on the bottom (SCTWHB) or end (HCT) of a standing or horizontal cylindrical tank.
  • Page 21 Figure 4.10 App Function Parameter Options Volume Cone Height Default = 1.00 SCTWCB 0.00 - 25.00 Feet 00.0 - 300.0 Inches 0.000 - 7.620 Meters 000 - 7620 Millimeters Cone Height sets the height of the cone chute on a SCTWCB. (See Figure 4.8) App Function Parameter Options...
  • Page 22 Figure 4.11 App Function Parameter Options Volume Tank Width Default = 1.00 0.00 - 25.00 Feet 00.0 - 300.0 Inches 0.000 - 7.620 Meters 000 - 7620 Millimeters Tank Width sets the width of a rectangular (SRT) tank. (See Figure 4.9) App Function Parameter Options...
  • Page 23 App Function Parameter Options Volume Chute Width Default = 1.00 Default = 1.00 (C Width) 0.00 - 25.00 Feet 0.00 - 25.00 Feet 0.0 - 300.0 Inch 00.0 - 300.0 Inches 0.000 - 7.620 Meters 0.000 - 7.620 Meters 000 - 7620 MM 000 - 7620 Millimeters Chute Width sets the width of a chute under a rectangular (SRT) tank.
  • Page 24 Figure 4.12 Figure 4.13 1.888.610.7664 www.calcert.com sales@calcert.com...
  • Page 25 Figure 4.14 App Function Parameter Options Equaiton Equation Default = Q=KH Q=KH Q=KLH Q=K[L-XH]H Q=K[B-A/D] Equation selects the equation that best models the flow being monitored. (See Figure 4.19-4.22) App Function Parameter Options Flow Max Flow Default = 1.00 0.00 - 25.00 Feet 00.0 - 300.0 Inches 0.000 - 7.620 Meters 000 - 7620 Millimeters...
  • Page 26 Figure 4.15 Figure 4.16 1.888.610.7664 www.calcert.com sales@calcert.com...
  • Page 27 Figure 4.17 App Function Parameter Options Flow Zero Flow Default = 1.00 0.00 - 25.00 Feet 00.0 - 300.0 Inches 0.000 - 7.620 Meters 000 - 7620 Millimeters Zero Flow sets the distance from the sensor to the level of minimum flow. (See Figure 4.12-4.22) App Function Parameter Options...
  • Page 28 Figure 4.18 Figure 4.19 1.888.610.7664 www.calcert.com sales@calcert.com...
  • Page 29 Figure 4.20 App Function Parameter Options Flow Exponent n / n1 Default = varies Exponent n or n1 sets the value of the (first) exponent for the channel being monitored. The range for n or n1 varies for each application. Flume configurations have selectable widths that provide appropriate n or n1 values.
  • Page 30 Figure 4.21 Figure 4.22 1.888.610.7664 www.calcert.com sales@calcert.com...
  • Page 31 App Function Parameter Options Flow - Flume Throat Width Default = 1.00 Cut Throat 0.00 - 25.00 Feet 00.0 - 300.0 Inches 0.000 - 7.620 Meters 000 - 7620 Millimeters Throat Width sets the width of a Cut Throat flume. Length and width combinations can be selected from the right side of the screen.
  • Page 32 App Function Parameter Options Flow - Equation Constant D Default = 10.000 Q=K[B-A/D] 0 - 10e308 Constant D sets the value of the D constant in the flow equation Q=K[B-A/D] . (See Figures 4.22) App Function Parameter Options Linearization Table Max Distance Default = 1.00 Feet 0.00 - 25.00 Feet...
  • Page 33 Figure 4.23 Figure 4.24 1.888.610.7664 www.calcert.com sales@calcert.com...

  • Page 34: Setup Menu

    Transducer PSI to Milliamp Chart 0-5 PSI milliamp Feet 0-10 PSI milliamp Feet 0-15 PSI milliamp Feet 0-100 PSI milliamp Feet 11.6 10.4 23.1 13.6 34.7 16.8 10.4 46.2 20.0 11.6 12.0 11.6 11.6 57.8 13.6 13.9 10.4 13.9 69.3 15.2 16.2 11.5...
  • Page 35 Figure 4.26 Menu Parameter Options 4-20 Setup Fail Safe Default = Hold Hold 3.8 mA 22mA Fail Safe sets the output condition that the sensor will revert to in the event of a loss of echo condition. If Fail Safe is set to Hold, the sensor will hold the last reading until the signal is regained. (See Figure 4.26) Menu Parameter Options...

  • Page 36: Calibration Menu

    20 ma 20 ma 4 ma 4 ma Zero 20mA Max. Zero 20mA Max. Point Setpoint Setpoint Distance Point Setpoint Setpoint Distance Figure 4.27 Figure 4.28 • Calibration Menu Menu Parameter Options Calibration Min mA Value Default = 4.00 4.00 - Max mA Value Min mA Value sets the minimum current output of the sensor.

  • Page 37: Advanced Menu

    Figure 4.29 • Advanced Menu Menu Parameter Options Advanced Temp. Comp. Default = ON ON / OFF Temperature Compensation activates or deactivates the internal temperature compensation circuit. The speed of sound changes with changes in temperature, therefore changes in temperature can affect distance measurements.
  • Page 38 Figure 4.30 Menu Parameter Options Advanced Sensitivity Default = 100% 0 - 100% Sensitivity sets the amount of gain applied to the recieved signal. For gain control settings Auto Sense, Hard Target, and Soft Target, this setting limits the maximum gain applied by the sensor. (See Figure 4.30) Menu Parameter Options...

  • Page 39: Utilities Menu

    Menu Parameter Options Advanced Blanking Default = 1.00 (ft) 1.00 - 25.00 Feet 12.0 - 300.0 Inches 0.305 - 7.620 Meters 305 - 7620 Millimeters Blanking sets the Blanking distance, which is the zone from the sensor to a point where the first echo will be accepted.
  • Page 40 Figure 4.31 Menu Parameter Options Utilities File System Default = None Sensor to File File to Sensor Compare Sensor to File None File System allows the user to edit, save, and load text files containing sensor parameters. (See Figure 4.31) Menu Parameter Options...
  • Page 41 Figure 4.31a All of the information and options on this screen are for advanced users only. Everything necessary to operate the LPU-2428 and the LPU-2428A Software is available through the regular menus. 1.888.610.7664 www.calcert.com sales@calcert.com...

  • Page 42: Totalization Menu

    • Totalization Menu Figure 4.32 App Function Parameter Options Flow Totalization Totalization Totelization NO Reset Reset Totalization is a submenu available only when Flow is the selected Application/OutFunc. The sensor writes to two totalizers--one of which can be reset--and updates the totals to the LPU-2428A software in one minute increments.

  • Page 43: Chapter 5: Hazardous Location Drawing And Certification

    Chapter 5: Hazardous Location Drawings and Certification • Intrinsically Safe Wiring Diagram 1.888.610.7664 www.calcert.com sales@calcert.com...

  • Page 44: Hazardous Location Wiring Diagram

    • Hazardous Location Wiring Diagram 1.888.610.7664 www.calcert.com sales@calcert.com...

  • Page 45: Csa Certificate Of Compliance

    • CSA Certificate of Compliance C ertificate of C ompliance C ertificate : M aster C ontract : (@(()*) '7)*+* P roject : D ate I ssued : '7+5.5* 0 "% '@& '.(( I ssued to : A utomation P roducts G roup I nc 1025 W est 1700 N orth L ogan , UT 84321 A ttention : K arl R eid...
  • Page 46 C ertificate : M aster C ontract : (@(()*) '7)*+* P roject : D ate I ssued : '7+5.5* 0 "% '@& '.(( CLASS 2258 04 - PROCESS CONTROL EQUIPMENT - I ntrinsically S afe , E ntity - F or H azardous L ocations CLASS 2258 84 - PROCESS CONTROL EQUIPMENT - I ntrinsically S afe , E ntity - F or H azardous L ocations - C ertified to US S tandards...
  • Page 47 C ertificate : M aster C ontract : (@(()*) '7)*+* P roject : D ate I ssued : '7+5.5* 0 "% '@& '.(( 0C0 !   ('6('6.( '..)  " # ":# %# ! " % E " /# ! $ # " %   &...
  • Page 48 C ertificate : M aster C ontract : (@(()*) '7)*+* P roject : D ate I ssued : '7+5.5* 0 "% '@& '.(( J  ! #  # "# %!  " #  & ! #   L #$# # # " ! %% !"  "...
