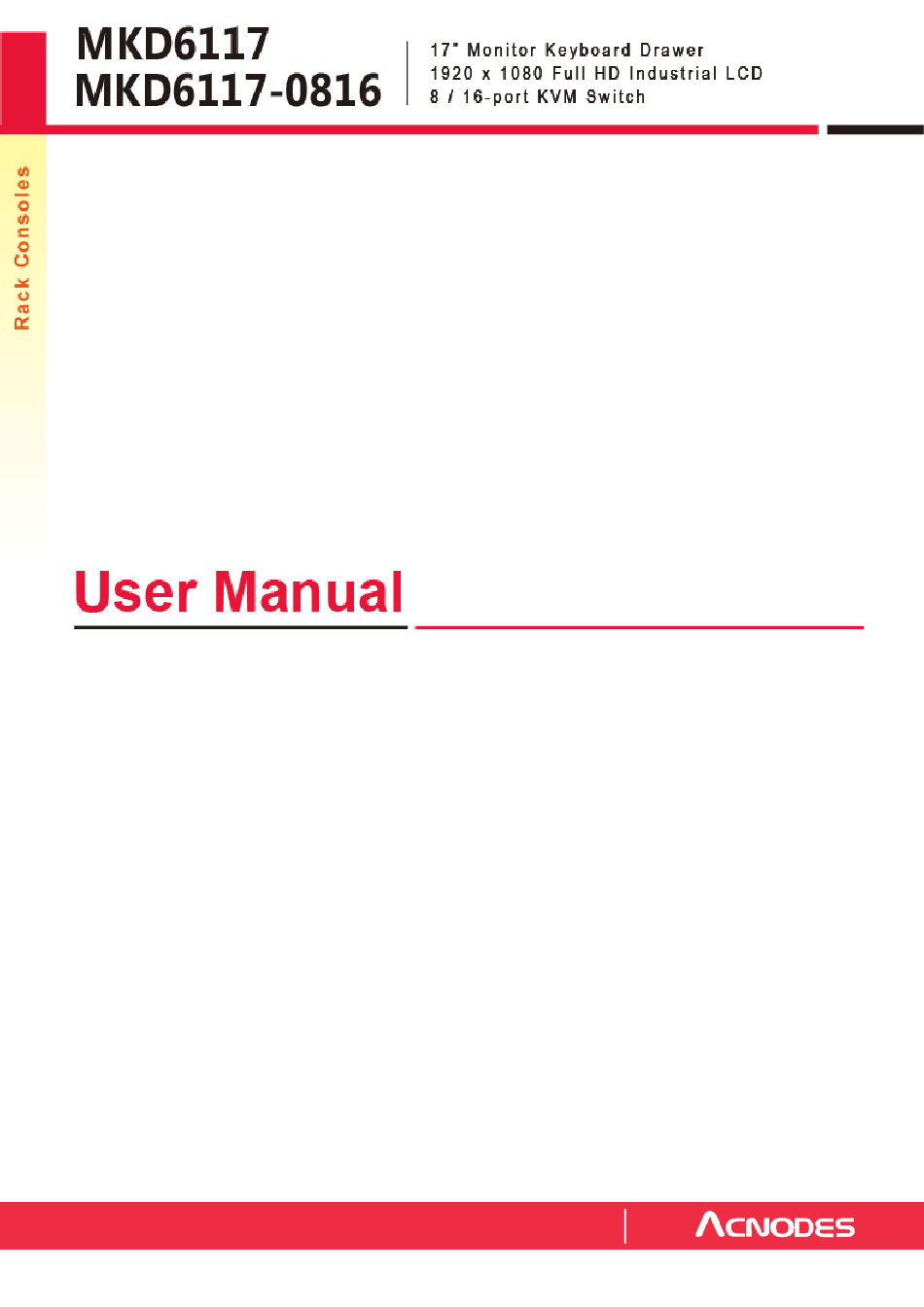

Acnodes MKD6117 User Manual

Acnodes MKD6117 User Manual

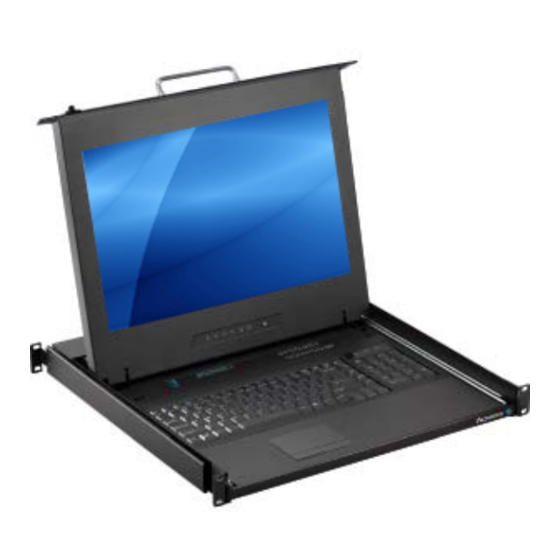

17" monitor keyboard drawer 1920 x 1080 full hd industrial lcd 8 / 16-port kvm switch

Advertisement

Quick Links

All rights reserved. Product description and product specifications are subject to change without
notice. For l a stest product information, please v i s it Acnodes' website at www.acnodes.com
14628 Central Ave. Chino, CA 91710
Tel: 909. 597. 7588
Fax: 909. 597. 1939
© C opyright 2016 Acnodes C orp.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MKD6117 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Acnodes MKD6117

  • Page 1 All rights reserved. Product description and product specifications are subject to change without notice. For l a stest product information, please v i s it Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA 91710 Tel: 909. 597. 7588 Fax: 909. 597. 1939...
  • Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
  • Page 3: Table Of Contents

    Contents MKD6117 / MKD6117-0816 < Part. 1 > Package Content Structure Diagram & Dimension P.1 - 2 Installation < Part. 2 > Specifi cations / OSD Product Specifi cations P.4 - 5 Keyboard / Mouse Specifi cations On-screen Display Operation ( OSD ) P.7 - 8...
  • Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
  • Page 5: Package Content

    < Part 1 > < 1.1 > Package Content MKD6117 / MKD6117-0816 unit X 1 - Power adapter & Power cord X 1 - M6 screw, cage nut & cup washer X 8 < 1.2 > Structure Diagram Carry handle...
  • Page 6 Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight MKD6117 441.6 x 550 x 44 mm 595 x 764 x 125 mm 11.6 kg 15.7 kg MKD6117-0816 17.4 x 21.7 x 1.73" 23.4 x 30.1 x 4.9”...
  • Page 7: Installation

    < 1.3 > Installation - How to install Installation Slides Step ■ Insert the left and right rear mounting bracket into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■...
  • Page 8: Product Specifi Cations

    < Part 2 > < 2.1 > Product Specifi cations Panel Size ( diagonal ) 17.3-inch Widescreen TFT color LCD Panel Display pixel ( dots x lines ) 1920 x 1080 Brightness ( typ. ) Contrast Ratio ( typ. ) 600:1 Color 1.07 Billion, 10-bit...
  • Page 9 Physical Product ( W x D x H ) 441.6 x 550 x 44 mm Specifi cation 17.4 x 21.7 x 1.73 inch Packing ( W x D x H ) 595 x 764 x 125 mm 23.4 x 30.1 x 4.9 inch Net Weight 11.6kgs / 25.5 lbs Gross Weight...
  • Page 10: Keyboard / Mouse Specifi Cations

    < 2.2 > Keyboard / Mouse Specifi cations G keyboard integrated with touchpad Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time Software support MS Windows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC Linux / Mac Supporting layouts America...
  • Page 11: On-Screen Display Operation ( Osd )

    < 2.3 > On-screen Display Operation ( OSD ) Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu...
  • Page 12 < 2.3 > On-screen Display Operation ( OSD ) Auto adjust : Automatically adjust sizes, centers and fi ne tunes the video signal to eliminate waviness and distortion. Clock : Adjust the clock value Phase : Adjust the phase value H.
  • Page 13 Ports Layout < Part 3 > KVM KVM Rear Kit back MKD6117: 8-port KVM MKD6117-0816: 16-port KVM...
  • Page 14: Kvm Port Connection

    < 3.1 > KVM port connection USB Servers ■ 6 / 10 / 15 ft KVM cable ■ Support PS/2 or USB server Proprietory DB-15 KVM ports Console Drawer KVM Rear Kit KVM cable support PS/2 Servers USB Servers PS/2 or USB USB KVM Cable Item Code PS/2 KVM Cable Item Code CD-6...
  • Page 15: Specifi Cations

    < 3.2 > Specifi cations ▀ KVM Port 8 or 16 Number of ports: Proprietory DB-15 KVM ports Connector: PS/2 or USB KVM cable, up to 6, 10 & 15 feet Connectivity: 17.3" rack console Local Console ▀ ▀ Management Multilingual OSD: English, France, German, Spanish, Italian, Russian, Simplifi...
  • Page 16: Kvm Usage

    < 3.3 > KVM Usage KVM Button Power ON ■ Turn off all servers and KVM switches ■ Make sure all cables / connectors are properly connected ■ Recommend Power ON sequence is monitor, KVM switch fi nally computer Front Panel - Port LED Indications Bank no.
  • Page 17: Password

    < 3.4 > Password The password is enabled by default, the default password is “00000000” eight zeros (Do not use “0” on number pad) ■ Enable password Scroll Lock + Scroll Lock + U Press the KVM hotkey Scroll Lock + Scroll Lock + P Logout the KVM by pressing the hotkey In SUPERVISOR level, enter “00000000”...
  • Page 18: Kvm Osd

    < 3.5 > KVM OSD OSD Menu OSD operation next to the system name The PC is powered on next to the system name The PC is selected Access F1 MAIN MENU Logout the OSD menu Previous menu Cancel / Quit Enter Complete / Switch to selected port Switch to previous or next port...
  • Page 19: Kvm Hotkey & Remote Console Hotkey

    < 3.6 > KVM Hotkey & Remote Console Hotkey Local Console Hotkey Function Scroll Lock + Scroll Lock + Space Bar Calling OSD menu Right-button mouse + Esc Calling OSD menu Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock + Switch to next port Scroll Lock + Scroll Lock +...

This manual is also suitable for:

Mkd6117-0816
