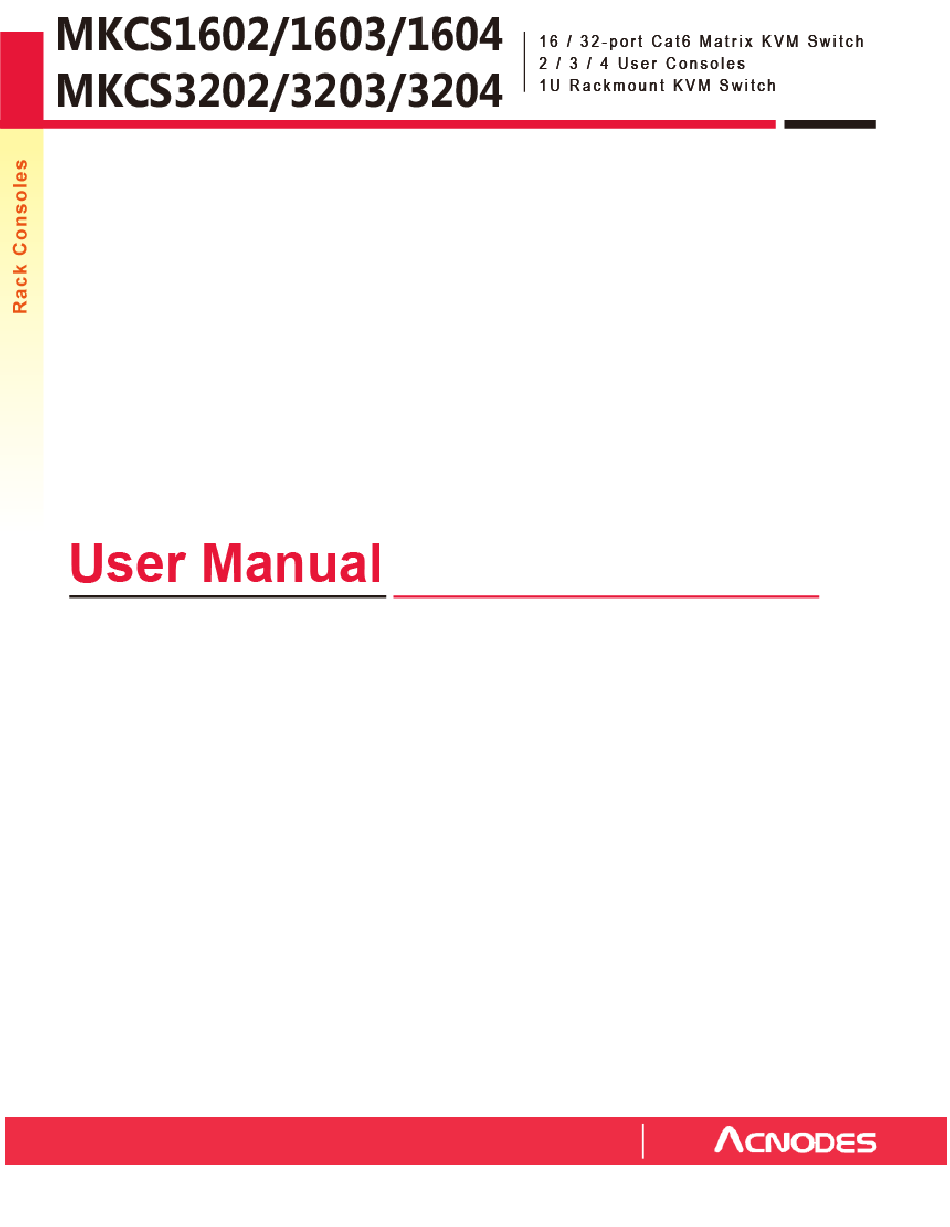

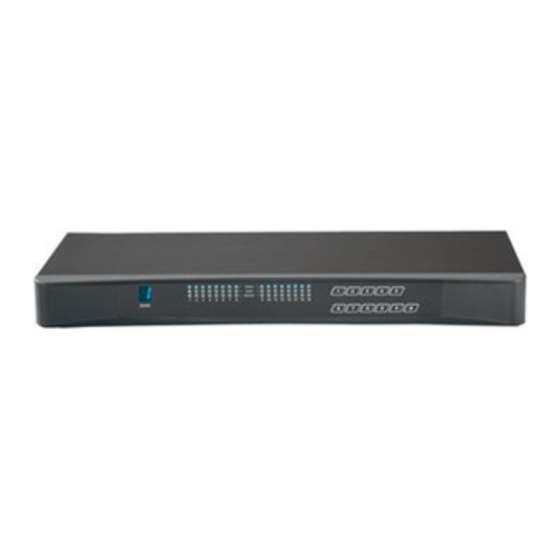

Acnodes MKCS3203 User Manual
16 / 32-port cat6 matrix kvm switch, 2/3/4 user consoles, 1u rackmount kvm switch
Hide thumbs
Also See for MKCS3203:
- User manual (15 pages) ,
- User manual (21 pages) ,
- User manual (15 pages)
Advertisement
Quick Links
All rights reserved. Product description and product specifications are subject to change without notice.
For l a stest product information, please v i s it Acnodes' website at www.acnodes.com
14628 Central Ave. Chino, CA 91710
Tel: 909. 597. 7588
Fax: 909. 597. 1939
© C opyright 2015 Acnodes C orp.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Acnodes MKCS3203
Summary of Contents for Acnodes MKCS3203
- Page 1 All rights reserved. Product description and product specifications are subject to change without notice. For l a stest product information, please v i s it Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA 91710 Tel: 909. 597. 7588 Fax: 909. 597. 1939...
- Page 2 Legal Information Legal Information First English printing, October 2002 First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness contents.
-
Page 3: Table Of Contents
Contents < Part 1 > Matrix Cat6 KVM MKCS1602 MKCS1603 MKCS1604 MKCS3202 MKCS3203 MKCS3204 Package contents P.1 - 2 KVM port & Cat6 dongle connection Remote & Local console connection P.4 - 5 KVM Cascade Specifications < Part 2 > Usage... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
- Page 5 Part 1. Matrix Cat6 KVM < 1.1 > Package Contents MKCS 1602 / MKCS 3202 • MKCS 1602 or MKCS 32 02 KVM unit x 1 • Mounting set w / bracket & screw s x 1 KV M uni t •...
- Page 6 MKCS1602 Loc al Console Remot e Console 1 Power Cascade MKCS3202 MKCS1603 Local C onsole Remot e Console 1 Power Remot e-2 Casc ade MKCS3203 MKCS1604 Rem ote-3 Local C onsole Remote Console 1 Power Rem ote-2 Casc ade MKCS3204...
-
Page 7: Kvm Port & Cat6 Dongle Connection
< 1.2 > KVM port & Cat6 dongle connection USB Servers DG-100SD DVI-USB dongle CAT 5 / 6 cable max. 40 meters DVI-D Cat6 KVM port PS/2 Servers USB Servers DG-100S DG-100 PS/2 VGA-USB dongle VGA-PS/2 dongle CAT 5 / 6 cable VG A max. - Page 8 < 1.3 > Local console & remote console connection Remote Receiver USB consol e 3 CAT 5 / 6 cable max. 150m Remote Receiver USB consol e 1 CAT 5 / 6 cable max. 150m Remote Local Remote Ca t6 Cat6 Console 3 console...
- Page 9 How to use a receiver to connect a remote console Receiver Local Computer Monitor Remote I/O Front Power Rear Local Remote K/B Mouse Button Button KVM switch The receiver provides a hotkey function for remote console. Monitor Remote Console Local computer Combo cable ( Optional setup )
-
Page 10: Kvm Cascade
< 1.4 > KVM Cascade ¦ Cascade up to 8 levels, 256 servers ¦ Cascading multiple KVM with CMC-8 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of MKCS1602 /3202 or MKS802 /1602. When multiple matrix KVMs cascade together, the master KVM at level 1 will take all control of other slave KVM switches (e.g. -
Page 11: Specifications
2 x USB type connector for keyboard & mouse ¯ Cat6 Remote Console Number of remote port: 1 for MKCS1602 / MKCS3202 2 for MKCS1603 / MKCS3203 3 for MKCS1604 / MKCS3204 Monitor port: DB15-pin VGA, up to 1600 x 1200 Keyboard & mouse port: 2 x USB type connector for keyboard &... -
Page 12: Part 2 > Usage
Part 2. U sa ge 2.1 K VM B u tton P ow er O N ¦ Tu rn o ff a ll serve rs a nd KV M switch e s ¦ M ake su re a ll ca ble s / con n ect ors are p ro pe rly co nn e cte d ¦... -
Page 13: Password
2.2 Password The password is enabled by default, the default password is “00000000” eight zeros (Do not use “0” on number pad) ¦ Enable password Scroll Lock + Scroll Lock + U Press the KVM hotkey Scroll Lock + Scroll Lock + P Logout the KVM by pressing the hotkey In SUPERVISOR level, enter “00000000”... -
Page 14: Kvm Osd
2.3 KVM OSD OSD Menu OSD operation next to the system name The PC is powered on next to the system name The PC is selected Access F1 MAIN MENU Logout the OSD menu Previous menu Cancel / Quit Enter Complete / Switch to selected port Switch to previous or next port PgUp/PgDn... - Page 15 2.4 KVM Hotkey & Remote Console Hotkey Local Console Hotkey Function Scroll Lock + Scroll Lock + Space Bar Calling OSD menu Right-button mouse + Esc Calling OSD menu Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock + Switch to next port Scroll Lock + Scroll Lock + PgUp / PgDn...
