All rights reserved. Product description and product specifications are subject to change without notice.
For l a stest product information, please v i s it Acnodes' website at www.acnodes.com
14628 Central Ave. Chino, CA 91710
Tel: 909. 597. 7588
Fax: 909. 597. 1939
© C opyright 2015 Acnodes C orp.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Acnodes MKP804

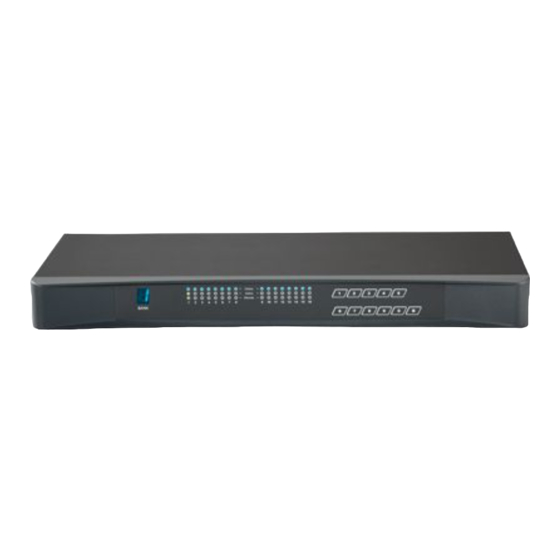

Summary of Contents for Acnodes MKP804
- Page 1 All rights reserved. Product description and product specifications are subject to change without notice. For l a stest product information, please v i s it Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA 91710 Tel: 909. 597. 7588 Fax: 909. 597. 1939...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part 1 > Matrix DB-15 MKP802 MKP804 MKP1602 MKP1604 Package contents KVM port connection IP, Remote & Local console connection P.3 - 4 IP console setting KVM Cascade Specifications < Part 2 > Usage KVM Button Password P.9 - 10 KVM OSD P.11 - 12... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Part 1 > Matrix
< 1.1 > Package Contents MKP802 / 1602 MKP804 / 1604 • MKP802 or MKP1602 or MKP804 or MKP1604 KVM unit x 1 • Mounting set w/ bracket & screws x 1 KVM uni t • Powe r adapter w/ power cord ( for KVM ) x 1 •... -
Page 6: Kvm Port Connection
< 1.2 > KVM port connection USB Servers Combo KVM cable support PS/2 or USB server Combo KVM port Combo KVM cable support PS/2 or USB server PS/2 Servers 6 / 10 / 15 ft Combo KVM cable Support PS/2 or USB server... -
Page 7: Ip, Remote & Local Console Connection
< 1.3 > IP, Remote & Local console connection Network d evice hub or router CA T 5 / 6 cable max. 100m Remote Receiver USB console CA T 5 / 6 cable max. 150m Local Remote Cat6 console Cons ole Network d evice hub or router CA T 5 / 6 cable... - Page 8 How to use a receiver to connect a remote console Receiver Local Computer Monitor Remote I/O Front Power Rear Local Remote Mouse Button Button KVM switch The receiver provides a hotkey function for remote console. Monitor Remote Console CE-6 Cat6 cable Local computer Combo cable...
-
Page 9: Ip Console Setting
< 1.4 > IP cons ole setting A f ter th e cab le con n ect io n , p lea se ta ke th e fo llo w in g ste p s to co n figu re th e IPK V M : 1 . -
Page 10: Kvm Cascade
< 1.5 > KVM Cascade ¦ Cascade up to 8 levels, 240 servers ¦ Cascading multiple KVM with CMC-8 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of MKS802 / 1602 or MKCS1602 / 3202. When multiple matrix KVMs cascade together, the master KVM at level 1 will take all control of other slave KVM switches (e.g. -
Page 11: Specifications
RJ45 via Cat5 / Cat5e / Cat6 cable up to 500 feet IP Remote Console ¯ Number of IP console: 1 for MKP802 / MKP1602 2 for MKP804 / MKP1604 User management: 15-user login, 1 x active user Browser: Internet Explorer, Firefox, Safari... -
Page 12: Part 2 > Usage
Part 2. U sa ge 2.1 K VM B u tton P ow er O N ¦ Tu rn o ff a ll serve rs a nd KV M switch e s ¦ M ake su re a ll ca ble s / con n ect ors are p ro pe rly co nn e cte d ¦... -
Page 13: Password
2.2 Password The password is enabled by default, the default password is “00000000” eight zeros (Do not use “0” on number pad) ¦ Enable password Scroll Lock + Scroll Lock + U Press the KVM hotkey Scroll Lock + Scroll Lock + P Logout the KVM by pressing the hotkey In SUPERVISOR level, enter “00000000”... -
Page 14: Kvm Osd
2.3 KVM OSD OSD Menu OSD operation next to the system name The PC is powered on next to the system name The PC is selected Access F1 MAIN MENU Logout the OSD menu Previous menu Cancel / Quit Enter Complete / Switch to selected port Switch to previous or next port PgUp/PgDn... -
Page 15: Kvm Hotkey & Remote Console Hotkey
2.4 KVM Hotkey & Remote Console Hotkey Local Console Hotkey Function Scroll Lock + Scroll Lock + Space Bar Calling OSD menu Right-button mouse + Esc Calling OSD menu Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock + Switch to next port Scroll Lock + Scroll Lock + PgUp / PgDn...
