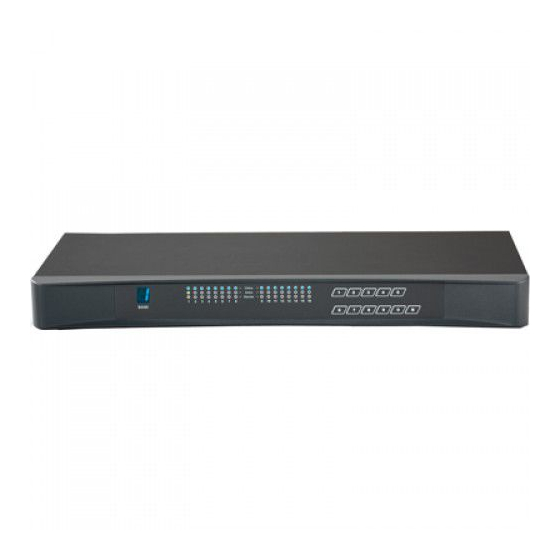

Summary of Contents for Acnodes MKS803

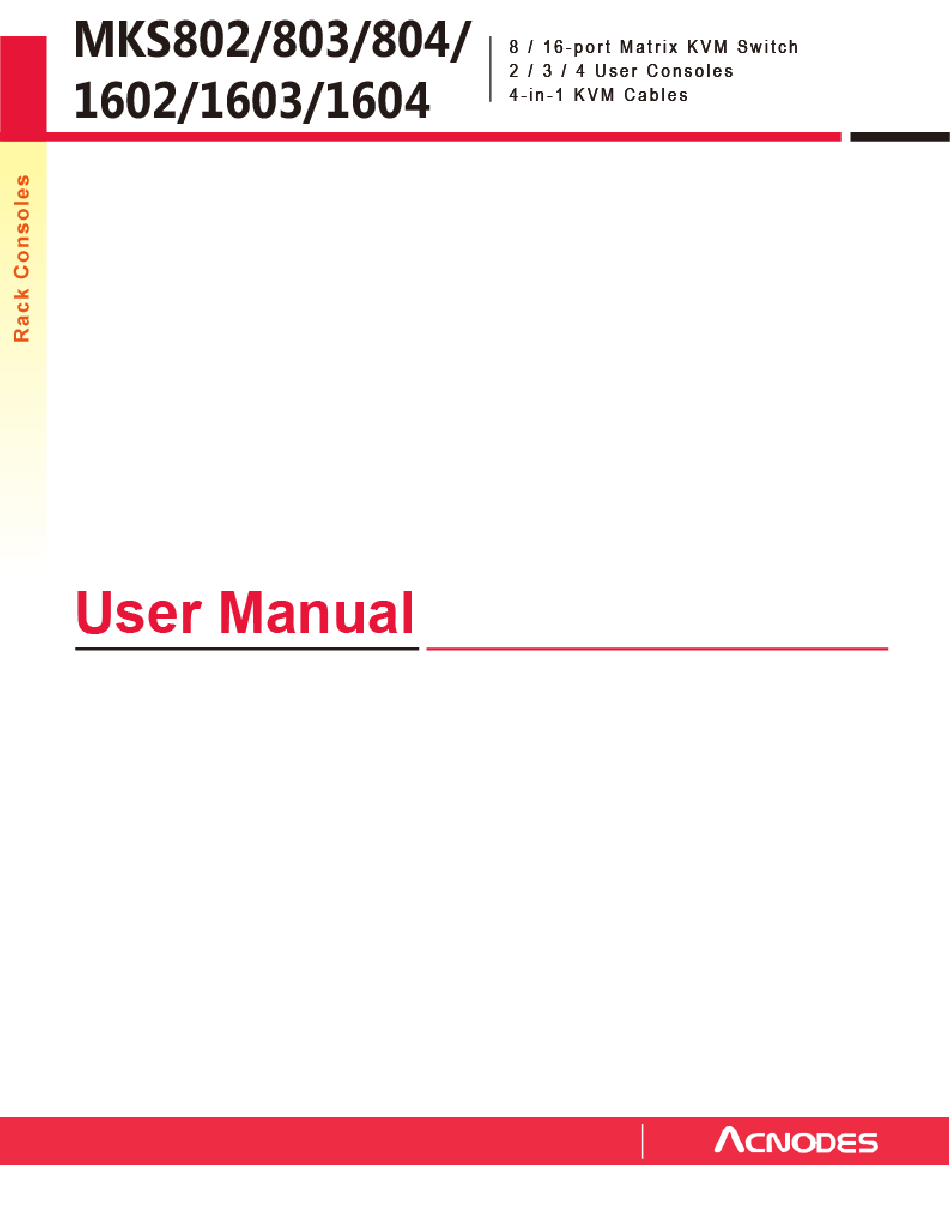

- Page 1 All rights reserved. Product description and product specifications are subject to change without notice. For l a stest product information, please v i s it Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA 91710 Tel: 909. 597. 7588 Fax: 909. 597. 1939...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part 1 > Matrix DB-15 KVM MKS802 MKS803 MKS804 MKS1602 MKS1603 MKS1604 Package contents P.2 - 3 KVM port connection P.4 - 5 Remote & Local console connection KVM Cascade Specifications < Part 2 > Usage KVM Button Password P.10... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Part 1 > Matrix Db-15 Kvm
Pa rt 1 . Matrix DB-15 K VM < 1.1 > Pa cka ge Contents M K S802 / 1602 • MKS 802 o r MKS1602 KVM un it x 1 • Mou n tin g set w / b racket & screw s x 1 KVM u n it •... - Page 6 MKS802 Local Cons ole Remote Cons ole 1 Power Cascade MKS1602 MKS803 Loc al Console Remote Cons ole 1 Power Rem ote-2 Casc ade MKS1603 MKS804 Remote-3 Loc al Console Remote Console 1 Power Remote-2 Cascade MKS1604...
-
Page 7: Kvm Port Connection
< 1.2 > KVM port connection USB Servers Combo KVM cable support PS/2 or USB server Combo KVM port Combo KVM cable support PS/2 or USB server PS/2 Servers 6 / 10 / 15 ft Combo KVM cable Support PS/2 or USB server... - Page 8 < 1.3 > Local console & remote console connection Remote Rece ive r US B console 3 CA T 5 / 6 c ab le m a x. 15 0 m Remote US B console 1 Rece ive r CA T 5 / 6 c ab le m a x.
- Page 9 How to use a receiver to connect a remote console Receiver Local Computer Monitor Remote I/O Front Power Rear Local Remote Mouse Button Button KVM switch The receiver provides a hotkey function for remote console. Monitor Remote Console CE-6 Cat6 cable Local computer Combo cable...
-
Page 10: Kvm Cascade
< 1.4 > KVM Cascade ¦ Cascade up to 8 levels, 240 servers ¦ Cascading multiple KVM with CMC-8 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of MKS802 / 1602 or MKCS1602 / 3202. When multiple matrix KVMs cascade together, the master KVM at level 1 will take all control of other slave KVM switches (e.g. -
Page 11: Mks802 Mks803 Mks1602 Mks1603
2 x USB type connector for keyboard & mouse Cat6 Remote Console ¯ Number of remote port: 1 for MKS802 / 1602 2 for MKS803 / 1603 3 for MKS804 / 1604 Monitor port: DB15-pin VGA, up to 1600 x 1200 Keyboard & mouse port: 2 x USB type connector for keyboard &... -
Page 12: Part 2 > Usage
Part 2. U sa ge 2.1 K VM B u tton P ow er O N ¦ Tu rn o ff a ll serve rs a nd KV M switch e s ¦ M ake su re a ll ca ble s / con n ect ors are p ro pe rly co nn e cte d ¦... -
Page 13: Password
2.2 Password The password is enabled by default, the default password is “00000000” eight zeros (Do not use “0” on number pad) ¦ Enable password Scroll Lock + Scroll Lock + U Press the KVM hotkey Scroll Lock + Scroll Lock + P Logout the KVM by pressing the hotkey In SUPERVISOR level, enter “00000000”... -
Page 14: Kvm Osd
2.3 KVM OSD OSD Menu OSD operation next to the system name The PC is powered on next to the system name The PC is selected Access F1 MAIN MENU Logout the OSD menu Previous menu Cancel / Quit Enter Complete / Switch to selected port Switch to previous or next port PgUp/PgDn... -
Page 15: Kvm Hotkey & Remote Console Hotkey
2.4 KVM Hotkey & Remote Console Hotkey Local Console Hotkey Function Scroll Lock + Scroll Lock + Space Bar Calling OSD menu Right-button mouse + Esc Calling OSD menu Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock + Switch to next port Scroll Lock + Scroll Lock + PgUp / PgDn...
