EEI–2672

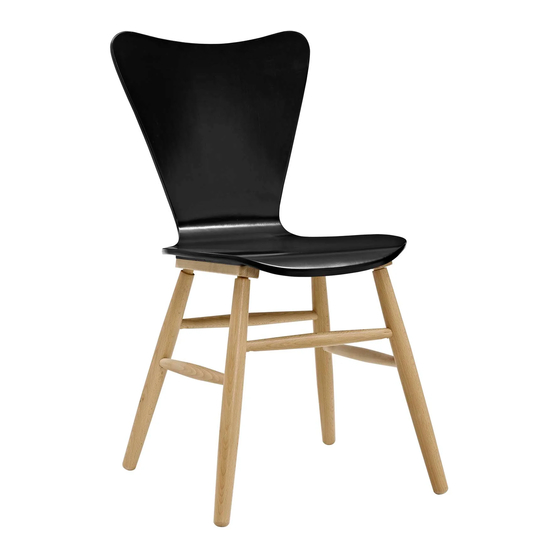

CHAIR
Thank you for purchasing the MODWAY Chair！
Before you start, here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
2.Owing to the size and weight of the chair, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or the instruction until you have checked all the components and
hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe and
environmentally friendly way.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
6.Please keep all fitting out of reach of children.
Component:
1
Chair Body
x1
Customer Service 908-368-1025︱www.modwayfurniture.com
4
2
2
Left Leg
x1
Hardware:
A
B
C
1
4
3
3
Right Leg
Bolt M6x25mm
Allen Wrench M4
Screw M4x30mm
PHILLIPS HEAD SCREW DRIVER
NOT PROVIDED
4
x1
Stretcher
Page 1 of 3
x 6
x 1
x4
x2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for modway EEI-2672
Summary of Contents for modway EEI-2672
- Page 1 EEI–2672 CHAIR Thank you for purchasing the MODWAY Chair！ Before you start, here is some helpful advice: 1.We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step instructions. 2.Owing to the size and weight of the chair, we recommend that it is assembled by two adults, on a carpeted or padded area, in the room that it is intended for.
- Page 2 EEI–2672 CHAIR STEP 1: Please put Left Leg (2) and Right Leg (3) upside down on a carpeted or padded area. Insert Stretcher (4) into the pre-dilled holes on Left Leg (2) and Right Leg (3)as shown. STEP 2: Position the assembled Left Leg (2), Right Leg (3), and Stretchers (4) to the bottom of Chair Body (1) as shown. Insert 3 pieces of Bolt (A) into the holes on bottom of Chair Body (1) through the holes on Left Leg (2).
- Page 3 EEI–2672 CHAIR STEP 3: Secure Stretchers (4) to Left Leg (2) and Right Leg (3) by using 4 pieces of Screw (C). Use Phillips Head Screw Driver (Not provided) to tighten Screw (C) clockwise until secure. Use Allen Wrench (B) to tighten Bolts (A) from step 2 clockwise until secure. Hardware &...
