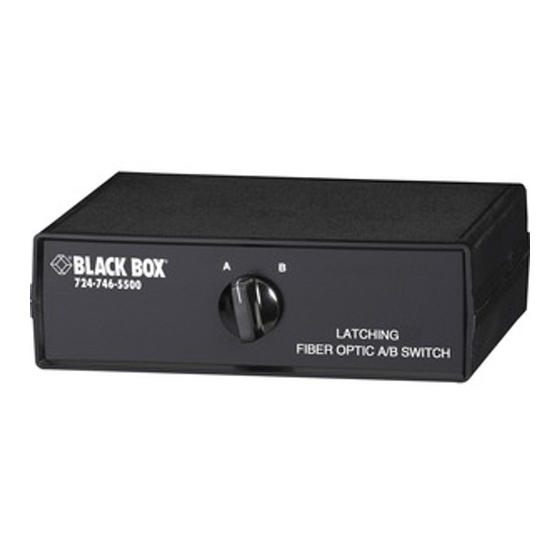

Fiber Optic A/B Switch with Loopback
This all-optical, fiber optic, latching-style A/B
switch maintains the connection even when
power is removed.
SW1009A features SC connectors.
SW1010A has ST connectors.
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) •
Customer
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 •
Support
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 •
Information
Web site: www.blackbox.com • E-mail: info@blackbox.com
BLACK BOX
January 2010
SW1009A
SW1010A
®
