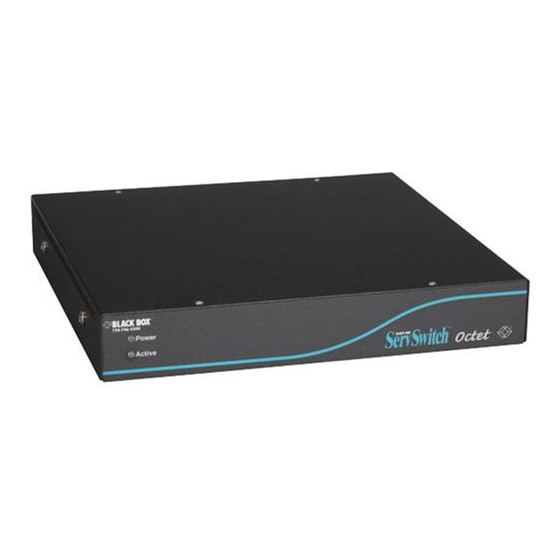

- Page 1 TEXT TEXT TEXT Pod Switch Mode ServSwitch Octet Series Technical Bulletin Doc. Number: 590-653-501A...
- Page 2 POD SWITCH MODE Pod Switch Mode Introduction Created for broadcast and studio environments, Pod Switch mode is designed to meet the ® needs of Octet switching system users who have multiple monitors in their work area. When Pod Switch mode is enabled on the user station, one monitor will continuously display video from the local target device while the second monitor will display video from a remote target device.
- Page 3 SERVSWITCH™ OCTET TECHNICAL BULLETIN using the pod switch hotkey, keyboard and mouse control can be “switched” between the target devices displayed on Monitor A and Monitor B. In addition, the video channel will remain constant for each monitor, allowing the user to view the target devices simultaneously.
- Page 4 POD SWITCH MODE Pod Switch Mode Commands Command Result show pod switch mode Display an OSD message showing Pod Switch mode status To enable Pod Switch mode: Press the hotkey sequence to display the Command Line. Num Lock + - is the default Command Line hotkey sequence. For more information about the Command Line, see the ServSwitch Octet Installer/User Guide.
- Page 5 SERVSWITCH™ OCTET TECHNICAL BULLETIN remote target devices, you will need to connect to a remote target device through the OSD interface before you may pod switch to the local target device. • Make sure your Octet switching system is configured to allow for pod switching; see Configuration on page 1 for more information.
