9.5. Creation of IP streams published to the network

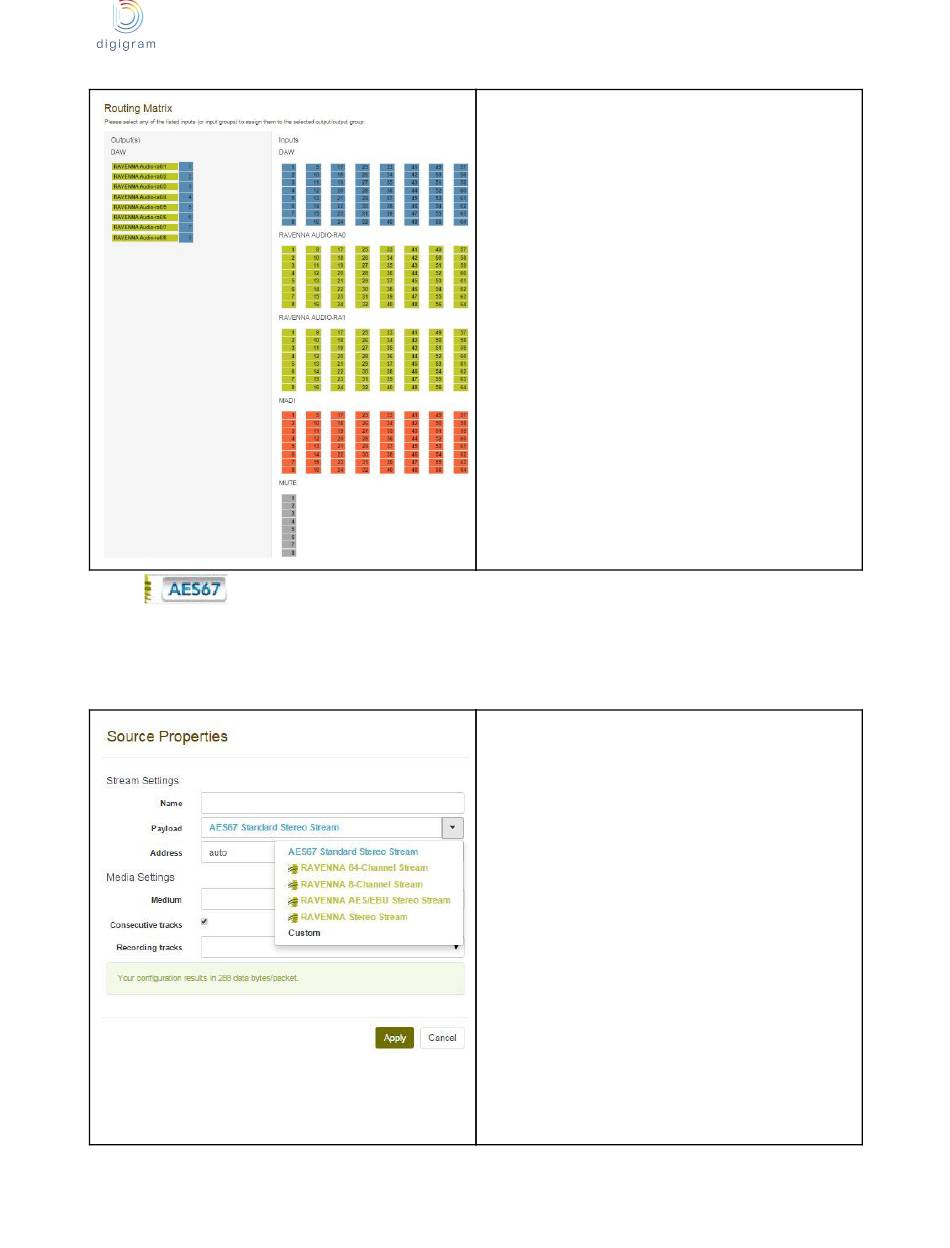

To declare an RAVENNA/AES67 stream to be published to the network, click on "Create source" from the "Sources"
section.
The inputs can then be selected on the right part of the
window.
Inputs can be selected from the four input ports:
DAW​ : This section allows for the selection of the audio
inputs that come from the playback devices.
RAVENNA AUDIO­RA0​ : This section allows for the
selection of the audio inputs that come from AoIP
streams on Eth0.
RAVENNA AUDIO­RA1​ : This section allows for the
selection of the audio inputs that come from AoIP
streams on Eth1.
MADI ​ ( optional): This section allows for the selection of
the audio inputs that come from the MADI input.
Note that for a given group, all the inputs come from the
same input port.
Mute​ : Allows muting all the channels of the group.
Stream settings
Name​ : Enter a name to identify the stream to be
generated on the network (e.g. From My Automation). A
default name is automatically entered, and is taken
from the RAVENNA node Name (in the headline).
Payload​ : This is an internal RTP value which informs
subscribers about the nature of the content. Possible
values are:
LX­IP ​
u ser Manual v1.04
● AES67 Standard Stereo Stream: AES67stereo
stream
● RAVENNA 64­Channel stream: RAVENNA stream
with 64 channels.
● RAVENNA 8­Channel stream: RAVENNA stream
with 8 channels.
● RAVENNA AES/EBU Stereo Stream: AM824 format
= 24­bit audio + 8­bit meta data as used with
AES/EBU
● RAVENNA Stereo Stream: 24­bit samples
● Custom: allows defining an other format
configuration (payload, number of channels, frame
size, DSCP, and Payload ID)
Note for DSCP: Select a QoS (Quality of Service)
value from the drop­down menu ­ EF
(46), AF41 (34), AF31 (26) or Standard (0); the
