LX1616ESe / LX6464ESe
User manual
LX1616ESe
LX6464ESe
EtherSound PCI Express Sound Cards
User manual v0.99

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LX1616ESe and is the answer not in the manual?

Questions and answers

Summary of Contents for Digigram LX1616ESe

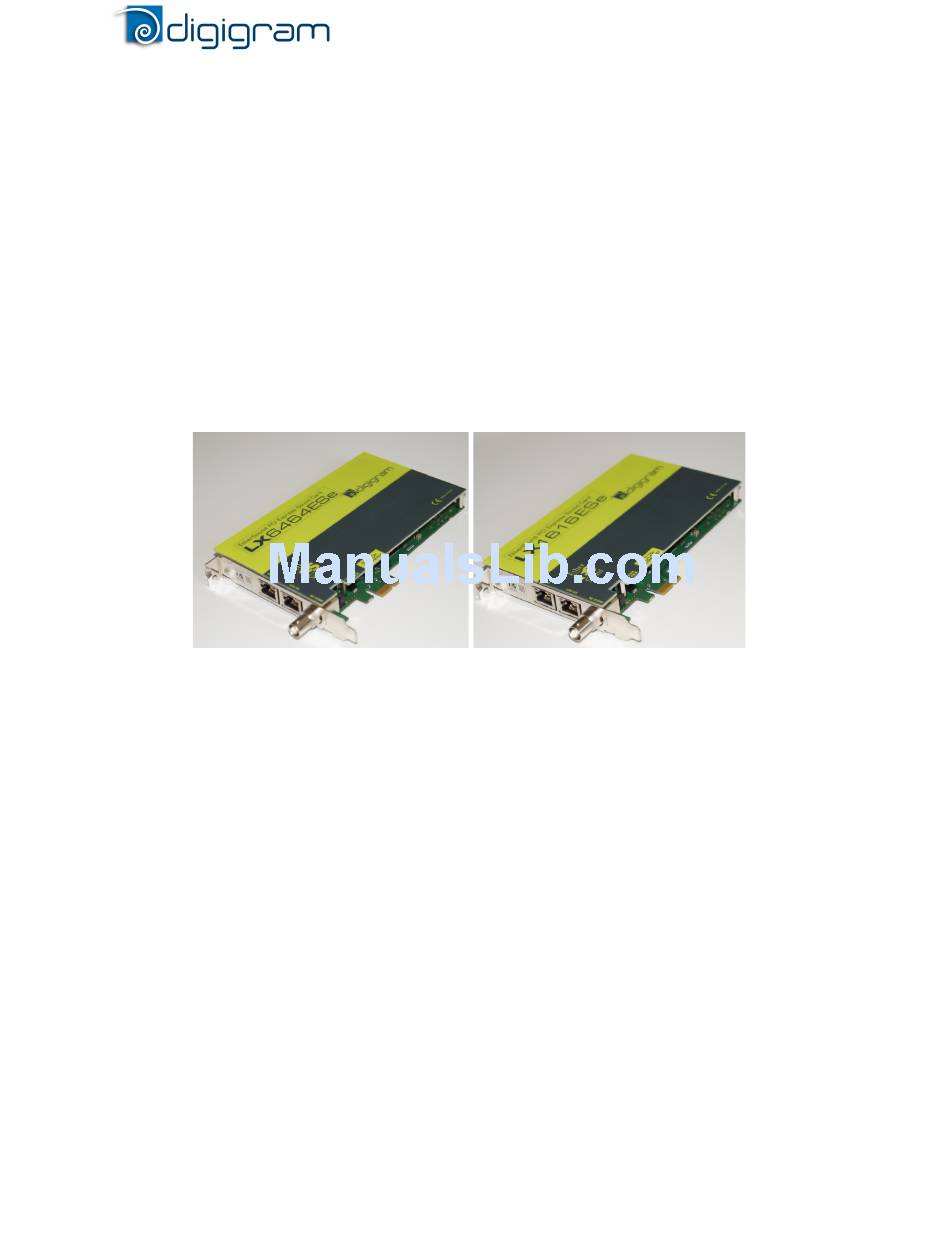

  • Page 1 LX1616ESe / LX6464ESe User manual LX1616ESe LX6464ESe EtherSound PCI Express Sound Cards User manual v0.99...
  • Page 2 No portion of this manual may be reproduced without prior written consent from Digigram. The copyright protection claimed here includes photocopying, translation and/or reformatting of the information contained in this manual. While every effort has been made to ensure accuracy, Digigram is not responsible for errors and omissions, and reserves the right to make improvements or changes in the products and programs described without notice.
  • Page 3: Table Of Contents

    LX1616ESe / LX6464ESe User manual Table of contents INFORMATION FOR THE USER IMPORTANT NOTICE FEATURES LX1616ESe main hardware features LX6464ESe main hardware features Main software features EtherSound features REQUIREMENTS Minimum requirements Software requirements Supported operating systems HARDWARE INSTALLATION Installing the card...
  • Page 4: Information For The User

    To ensure that the use of this product does not contribute to interference, it is necessary to use shielded I/O cables. The user is cautioned that any changes or modifications not expressly approved by Digigram could void the user’s authority to operate this equipment.
  • Page 5: Features

    1 standard Word Clock input with selectable input impedance On the LX1616ESe, EtherSound I/Os can b e added b y up to three b undles of 16/16 channels through a software key. For this option, please contact your system supplier.
  • Page 6: Requirements

    PC with one free PCI Express slot (x1, x2, x4, x8, x16, x32). CPU power and memory required depend on the operating system and on the software applications used. Software requirements LX1616ESe and LX6464ESe require installation of the drivers included in the LXES Kit version 1.12 or higher. This kit includes: ●...
  • Page 7: Software Installation

    Please visit the Digigram web site at www.digigram.com for the most recent driver. In case you run a specific application developed or installed by a Digigram Partner, this application might require the use of a given driver version. In this case, make sure that the updated driver has been approved by your supplier.
  • Page 8 LX1616ESe / LX6464ESe User manual ● In the “Custom Setup” window, the “Drivers for the LX6464ESe board” are displayed; by default, both WDM DirectSound and ASIO LX are installed. ASIO driver installation can be selected/unselected. Next. ● In the “Ready to Install the Program Window”, click on Install to start copying the files.
  • Page 9: Removing The Driver Under Windows Xp And Windows Server 2003

    User manual Note: The “DirectSound Device Builder” application can b e launched at any time once the driver of the LX6464ESe installed (<Start>, <Programs>, <Digigram>, <Digigram Control Center>). It is necessary to reb oot the computer to apply the changes.
  • Page 10: How To Check The Installation

    Digigram Control Center The Digigram Control Center panel can be started from the menu <Start><Programs><Digigram>. The “General Information” tab displays all the Digigram driver packages installed on the computer, with their version. The LXES tab displays the LX cards installed in the computer: card type, serial number, MAC address, firmware version “General information”...
  • Page 11: Windows Xp And Server 2003

    LX1616ESe / LX6464ESe User manual ● If there is another free PCI Express slot, insert the card in it, and power on the computer. ● Check again if the card is detected as decribed above. ● If the card is not detected in any PCI Express slot of this computer, you may try it in another computer.
  • Page 12: Directsound Control Panel

    For help on how to use this control panel, please refer to its on-line help. Clock and routing The clock management as well as the assignment of devices to EtherSound channels (“I/O mapping”) are done through Digigram’s EScontrol application, or a specific control application designed by one of Digigram’s development partners.
  • Page 13: Specifications

    LX1616ESe / LX6464ESe User manual SPECIFICATIONS Configuration LX1616ESe & LX6464ESe ® Bus/Format PCI EXPRESS (PCIe ) x1 (x2, x4, x8, x16, x32 compatible) Size 169 mm x 99 mm x 20 mm Power requirements 0.4 A / 0.12 A (+3.3 V / +12 V) Operating: 0°C / +50°C •...
  • Page 14: Ethersound

    LX1616ESe / LX6464ESe User manual EtherSound LX1616ESe & LX6464ESe Technology ES-100 Functions Compatible with Ring Redundancy mode Can generate the audio network clock in all modes Network clock frequencies Can generate a 48 KHz audio clock for the EtherSound network supported Can synchronize on an EtherSound network at either 44.1 or 48 kHz...
  • Page 15: Appendix

    LX1616ESe / LX6464ESe User manual APPENDIX LX1616ESe/LX6464ESe schematic diagram Connectors J1: RJ-45 connector - EtherSound IN J2: RJ-45 connector - EtherSound OUT J3: BNC connector - Word Clock IN J4: Jumper – WordClock input impedance selection ● High impedance: ●...
