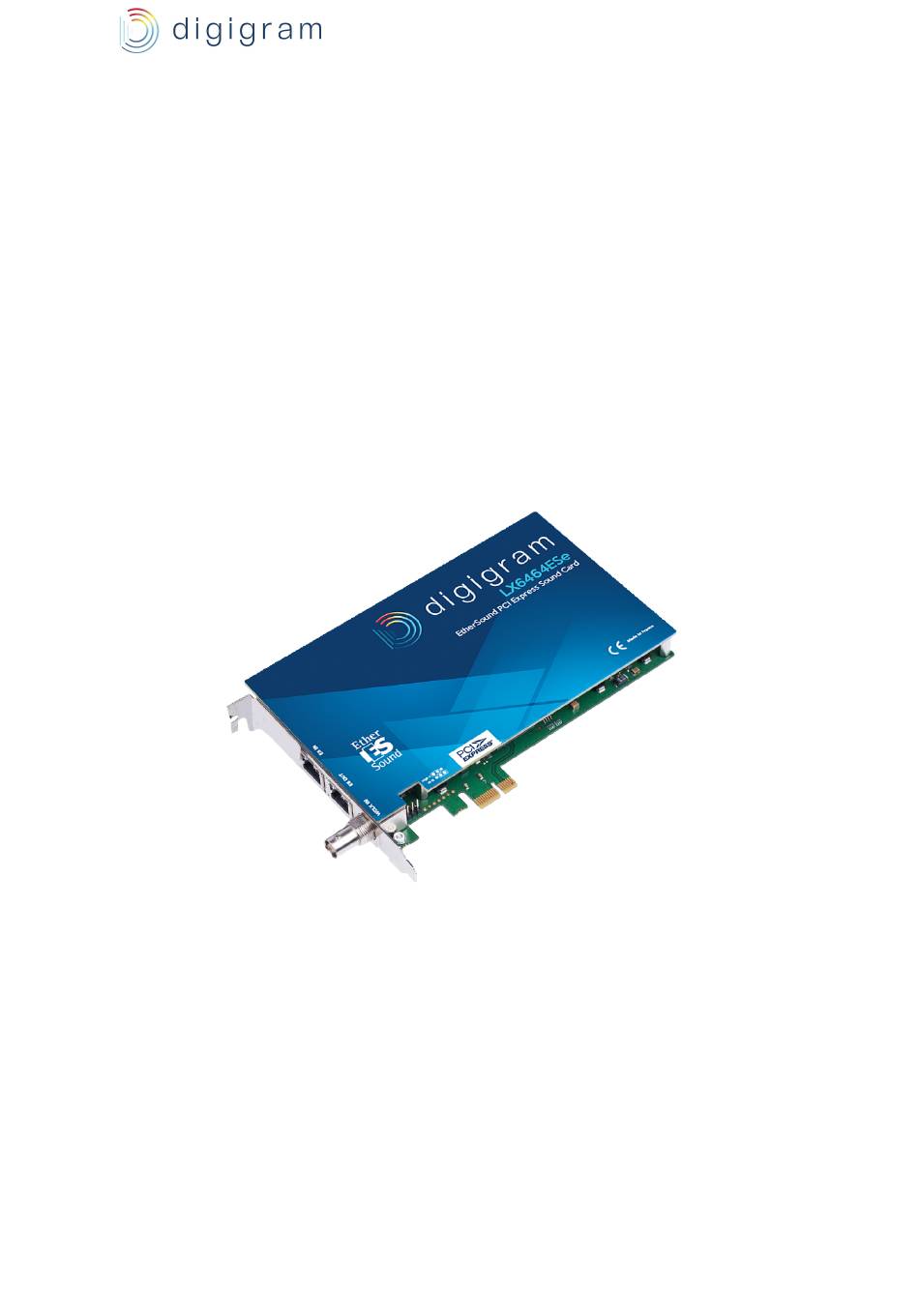

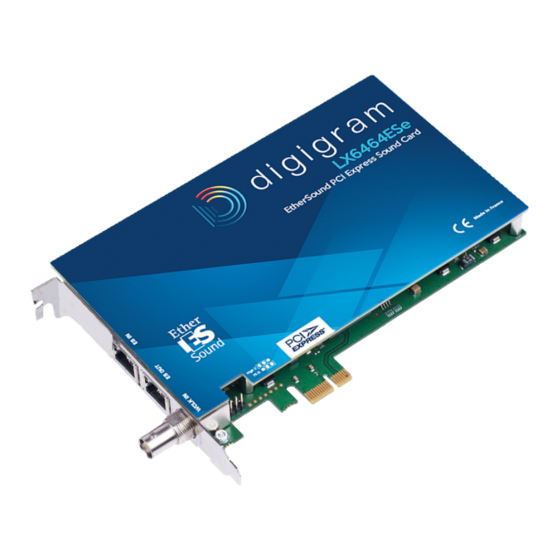

- Page 1 LX6464ESe & LX1616ESe user guide LX6464ESe LX1616ESe EtherSound PCI Express Sound Cards User guide v1.00...
-
Page 2: Table Of Contents
LX6464ESe & LX1616ESe user guide Table of Contents 1 Information for the user 2 Features 2.1 LX1616ESe main hardware features 2.2 LX6464ESe main hardware features 2.3 Main software features 2.4 EtherSound features 3 Requirements 3.1 Minimum requirements 3.2 Software requirements 3.3 Supported operating systems... -
Page 3: Information For The User
To ensure that the use of this product does not contribute to interference, it is necessary to use shielded I/O cables. The user is cautioned that any changes or modifications not expressly approved by Digigram could void the user’s authority to operate this equipment. Warning: Electrostatic discharge (ESD) can damage several components on the board. -
Page 4: Features
LX6464ESe & LX1616ESe user guide 2 Features LX1616ESe and LX6464ESe are audio cards for PCI EXPRESS x 1 ( PCIe ® ) bus, and can be inserted in PCIe ® (x1, x4, x8 ou x16) slots. -
Page 5: Requirements
CPU power and memory required depend on the operating system and on the audio application used. 3.2 Software requirements LX1616ESe and LX6464ESe require installation of the drivers included in the LXES Kit version 1.12 or higher. This kit includes: ●... - Page 6 LX6464ESe & LX1616ESe user guide ● In the “ C ustom Setup ” window, the “Drivers for the LX6464ESe board” are displayed. In case you do not need the ASIO driver to be installed, click on the arrow on the left of “ASIO LX”, and select “This feature will not be available”.
-
Page 7: Removing The Driver Under Windows
<Digigram Control Center>). It is necessary to reboot the computer to apply the changes. ● From the “Digigram drivers” window that is displayed, in the LX-ES tab, select the processing granularity of the card, expressed in samples. A granularity of 64 samples is the default value (recommended). Under DirectSound, selecting a lower value (32) will decrease the latency, but may limit the number of devices that can be used simultaneously without dropouts. -
Page 8: How To Check The Installation
Once the driver and the card are installed according to the procedure described in this manual, you can verify that the card works correctly as follows. ● Open the Digigram Control Center panel from the Start menu, Digigram group. The LX card should be listed. ●... - Page 9 If the ASIO option has been selected during installation, the card is visible through any ASIO compliant application, and through the ASIO control panel. The ASIO control panel can be launched from the Start menu, Digigram group, ASIO ES settings. If the card is not displayed in the Digigram Control Center panel: ●...
-
Page 10: Directsound Mixer Panel
The ASIO driver parameters can be configured from the “ASIO ES Settings” panel, available from < Start> , < Programs> , < Digigram> , < Digigram ASIO ES Settings> . It can also be launched directly from the ASIO software applications, as most of them feature a “Preferences” or equivalent menu allowing to configure the ASIO devices to be used. -
Page 11: Clock And Routing
Clicking on this button allows selecting the channels that are managed by the ASIO driver. By default, all the channels are enabled. 9 Clock and routing The clock management as well as the assignment of devices to EtherSound channels (“I/O mapping”) are done through Digigram EScontrol application, or a through a third party EtherSound management application. -
Page 12: Specifications
LX6464ESe & LX1616ESe user guide 10 Specifications Configuration LX1616ESe LX6464ESe TM ( PCIe ® PCI EXPRESS ) x1 Bus/Format (x2, x4, x8, x16, x32 compatible) 111.15mm* x 169 mm x 20 mm Size (*) including the PCIe connector Power requirements 0.4 A / 0.12 A... - Page 13 LX6464ESe & LX1616ESe user guide EtherSound LX1616ESe LX6464ESe Technology ES-100 Compatible with Ring Redundancy mode Functions Can generate the audio network clock in all modes Can generate a 48 KHz audio clock for the EtherSound Network clock frequencies network supported Can synchronize on an EtherSound network at either 44.1...
-
Page 14: Schematic Diagram
LX6464ESe & LX1616ESe user guide 11 Schematic diagram 12 Connectors J1: RJ-45 connector - EtherSound IN J2: RJ-45 connector - EtherSound OUT J3: BNC connector - Word Clock IN J4: Jumper – WordClock input impedance selection ● High impedance: ●...
