Summary of Contents for Euromaid EFS54FC-SGB

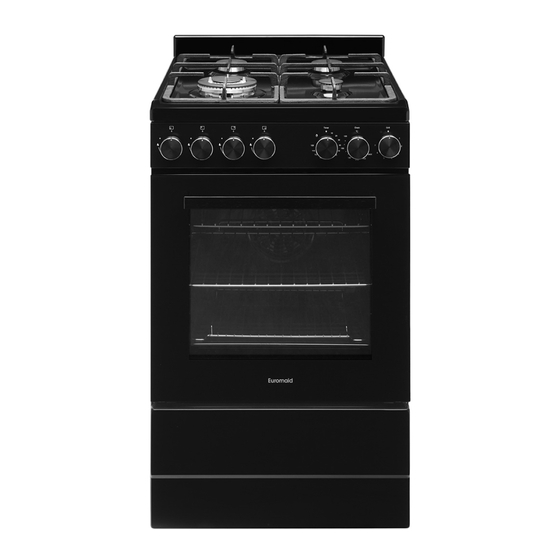

- Page 1 User Manual Description: 54cm Freestanding Gas Cooker MODEL NO. EFS54FC-SGB euromaid.com.au PG 1 USER MANUAL...
-
Page 3: Table Of Contents
CONTENTS Conditions of use................... Safety precautions..................Other important safety information............Warnings for use of oven, and appliance hob.......... Installation, cleaning and servicing............Product description ..................First time use of the appliance..............Using the oven....................Using the burners of your cooker..............Getting to know your oven................. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. •... -
Page 5: Warnings For Use Of Oven, And Appliance Hob
WARNINGS FOR USE OF OVEN & APPLIANCE HOB OVEN WARNINGS • DO NOT push down or apply any weight on open oven door. • DO NOT place dishes on open door of oven • DO NOT line oven with foil or place anything on the bottom of the oven while baking to avoid permanent damage, as trapped heat will crack or craze the enamel floor of the oven cavity liner. -
Page 6: Product Description
PRODUCT DESCRIPTIONS DESCRIPTION OF GAS COOKER 1. Cast Iron Trivets 2. Gas burners 3. Control Panel 4. Oven Door 5. Splashback 6. Burning baffle 7. Front panel 8. Anti slip feet CONTROLS Front Control Panels 1. Burner Control Knob 2. Oven Grill Control Knob 3. -
Page 7: First Time Use Of The Appliance
FIRST TIME USE OF THE APPLIANCE PREPARING YOUR APPLIANCE FOR THE FIRST TIME • Please wipe out the oven interior prior to operation with warm soapy water and polish dry with a soft clean cloth. • New appliances can have an odour during first operation from components manufactured with the aid of oils. -
Page 8: Using The Oven
USING THE OVEN Oven Safety Warnings • Always follow the instructions for putting the shelves and side racks into the oven, to avoid accidents. • Do not line the oven with foil, it will damage the enamel. • Do not place cookware or anything else on the bottom of conventional oven model as trapped heat will damage the oven •... - Page 9 Oven Cooking Guide The following is intended as a rough guide. It is often required to set oven 10-20 degrees above or below this guide to get the result you want. Also adjustments are needed for the cooking time to suit personal expectations.
- Page 10 UNDERSTANDING COOKING PROBLEMS Problem Causes What to do Uneven cooking Incorrect shelf position Select shelf that puts food in centre of oven Oven tray too large Remove oven tray. Use smaller trays or dishes Trays not in centre Put trays in centre Oven fan causing uneven browning or small Rotate food during cooking, or use cakes to lean over...
-
Page 11: Using The Burners Of Your Cooker
USING THE BURNERS BURNER SAFETY WARNINGS • Do not use pots and pans which are unsteady, as these could overbalance. • Do not use mats, heat diffusers or wok stands. These will cause a temperature build-up which can damage the cook top. •... -
Page 12: Getting To Know Your Oven
1. Rapid Burner Used for normal cooking. 2. Semi-rapid Burner Used with middle size pots and pans. 3. Auxiliary Burner Used for simmering. Used with small pots and pans. To conserve gas, place the pan centrally over the burner and adjust the flame so that it does not go past the edges of the cookware, GET TO KNOW YOUR OVEN The appliance is tested with Natural gas at the pressure of 10 mbar. -
Page 13: Fitting Oven Accessories And Cleaning
FITTING OVEN ACCESSORIES AND CLEANING Safety Warnings About Cleaning • Always make sure that the cooker is turned off before cleaning. • Always clean cooker immediately after use. • Do not use steam cleaners. These may cause moisture build-up. • Do not use caustic- based cleaners. - Page 14 Cleaning The Oven • Open door fully. • Remove oven shelves and side racks. • Clean in hot soapy water. Cleaning The Oven Door / How To Remove The Oven Door For a more thorough clean, you can remove and disassemble the oven door. Proceed as follows: •...
-
Page 15: Solving Problems
Remove shelf and insert as per Household fuse blown or power diagram Clock display off supply is off Check fuses, power supply NOTE: Only Euromaid Authorised service agents should carry out servicing otherwise warranty may be void. PG 15 USER MANUAL... -
Page 16: Installing Cooker - Power Connections
INSTALLING COOKER - POWER CONNECTIONS Electrical Connection The appliance is supplied fitted with a power cord and 3 pin plug. Install the cooker so that the plug is easily accessible. Plug the 3-pin plug into a properly earthed, 10A general purpose power outlet preferably on a separate dedicated circuit. -
Page 17: Installing The Gas Cooker
INSTALLING THE GAS COOKER Unpacking Do not fit the burner crowns, burner caps and trivets until after the cooker has been installed. Locating The Cooker This appliance must be installed by an authorised person in accordance with this instruction manual, AS/NZS 5601 –... -
Page 18: Connection To The Gas Supply
CONNECTION TO THE GAS SUPPLY This appliance is suitable for connection with rigid pipe or flexible hose. The isolating manual shut-off valve connection point must be accessible when the appliance is installed. For connection with a flexible hose assembly. The flexible ose assembly must be certified to AS/NZS 1869 class B or D. 10mm internal diameter, be kept as short as possible (not exceedomg 1200mm), must not be in contact with the floor or any hot or sharp surfaces. -
Page 19: Testing The Operation Of The Gas Cooker
TESTING THE OPERATION OF THE GAS COOKER NOTE: You must test the cooker after instalation, before you hand it over to the customer. You must have a manometer and a connecting tube.. Checking Gas Supply • Check the manometer zero point is correct. •... -
Page 20: Installing Your New Cooker
INSTALLING YOUR NEW COOKER • The cooker MUST BE installed and serviced only by an authorised person. • A certificate of compliance must be supplied by installer and is to be kept by the customer. • The packing materials must be removed before you install the cooker. •... -
Page 21: Technical Specifications
TECHNICAL SPECIFICATIONS Model EFS54FC-SGB Oven capacity (L) Voltage (v) 220-240 Frequency (Hz) 50-60 Power (W) 1200-1400 Burner power (MJ/h) NG 39.24 / LPG 39.24 Product dimension (mm) 540*630*910 Package size (mm) 590*712*960 PG 21 USER MANUAL... -
Page 22: Manufacturer's Guarantee
In the case of Euromaid products used for personal, domestic or household purposes, a period of 2 years from the date the product is purchased as a brandnew product from a retailer located in Australia / New Zealand. - Page 23 MANUFACTURER GUARANTEE 4. How to make a claim. You may make a claim under this warranty through our website, contacting our customer care line or via email. Contact details for Glen Dimplex Australia and New Zealand can be found at the end of this document.
- Page 24 NOTES PG 24 USER MANUAL...
- Page 25 READ THE INSTRUCTION BOOKLET BEFORE INSTALLING AND USING THE APPLIANCE. The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance. The manufacturer is not responsible for any inaccuracies, due to printing or transcription errors, contained in this manual.
