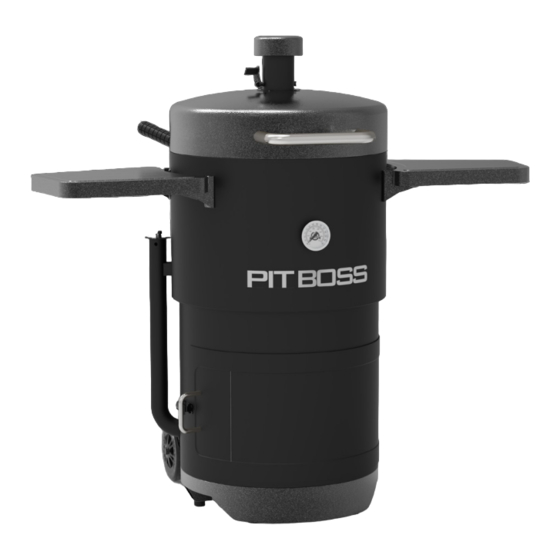

Pit Boss CHAMPION PBV24CB Owner's Manual

Charcoal barrel smoker
Hide thumbs Also See for CHAMPION PBV24CB:
Table of Contents

Advertisement

Quick Links

CHAMPION
CHARCOAL
BARREL SMOKER
IMPORTANT, READ CAREFULLY, RETAIN FOR
FUTURE REFERENCE. MANUAL MUST BE
READ BEFORE OPERATING!
For outdoor and household use only. Not for commercial use.
WARNING: PLEASE READ THE ENTIRE MANUAL BEFORE
INSTALLATION AND USE OF THIS APPLIANCE. FAILURE TO FOLLOW
THESE INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE,
BODILY INJURY OR EVEN DEATH. CONTACT LOCAL BUILDING
OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION
INSPECTION REQUIREMENTS IN YOUR AREA.
O W N E R ' S M A N U A L
ITM#0256542
MODEL: PBV24CB
PART: 10859
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHAMPION PBV24CB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pit Boss CHAMPION PBV24CB

Summary of Contents for Pit Boss CHAMPION PBV24CB

  • Page 1 O W N E R ' S M A N U A L ITM#0256542 MODEL: PBV24CB PART: 10859 CHAMPION CHARCOAL BARREL SMOKER IMPORTANT, READ CAREFULLY, RETAIN FOR FUTURE REFERENCE. MANUAL MUST BE READ BEFORE OPERATING! For outdoor and household use only. Not for commercial use. WARNING: PLEASE READ THE ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS APPLIANCE.

  • Page 2: Safety Information

    SAFETY INFORMATION MAJOR CAUSES OF APPLIANCE FIRES ARE A RESULT OF POOR MAINTENANCE AND A FAILURE TO MAINTAIN REQUIRED CLEARANCE TO COMBUSTIBLE MATERIALS. IT IS OF UTMOST IMPORTANCE THAT THIS PRODUCT BE USED ONLY IN ACCORDANCE WITH THE FOLLOWING INSTRUCTIONS. Please read and understand this entire manual before attempting to assemble, operate or install the product.
  • Page 3 5. It is highly recommended that you use lump charcoal in your smoker. It burns for longer and produces less ash, which can restrict the airflow. Do not use coal in this product. Charcoal not included. Do not use spirit, petrol, gasoline, lighter-fluid or kerosene for lighting or refreshing a fire in your unit. Keep all such liquids well away from the appliance when in use.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Safety Information ............2 COPYRIGHT NOTICE Parts & Specs ..............5 Copyright 2021. All right reserved. No part of this manual may be copied, transmitted, transcribed, stored in a retrieval Assembly Preparation ............6 system, in any form or by any means without expressed written permission of, Assembly Instructions DANSONS EUROPE...

  • Page 5: Parts & Specs

    PARTS & SPECS Part# Description Chimney Assembly (x1) Thermometer (x1) Lid Handle (x1) Barrel Body (x1) Body Bracket Handle (x2) Side Shelf (x2) Side Shelf Bracket - Left (x2) Side Shelf Bracket - Right (x2) Air Intake Pipe (x2) Air Intake Silicone Pad (x2) Hanging Rack (x1) Cooking Grid (x3) Heat Diffuser Plate (x1)

  • Page 6: Assembly Preparation

    If any part is missing or damaged, do not attempt to assemble. Shipping damage is not covered under warranty. Contact your dealer or Pit Boss® Grills Customer Care for parts.

  • Page 7: Mounting The Body Bracket Handles

    2. MOUNTING THE BODY BRACKET HANDLES Parts Required: Body Bracket Handle (#5) Screw (#D) Locking Washer (#G) Washer (#H) Installation: • Insert the open end of a Body Bracket Handle into the top end of the Body Bracket, pushing it in until the mounting holes align. Secure using two washers, locking washers, and screws.

  • Page 8: Mounting The Door Handle

    5. MOUNTING THE DOOR HANDLE Parts Required: Door Handle (#20) Screw (#E) Installation: • First, open the Charcoal Refill Door. Pull the end of the Door Buckle to release the Door Buckle latch that seals the Charcoal Refill Door. Note illustration 5A.

  • Page 9: Installing The Side Shelves

    8. INSTALLING THE SIDE SHELVES Parts Required: Side Shelf (#6) Step Screw (#J) Installation: • Align and position one Side Shelf onto the Side Shelf Brackets on one side of the Barrel Body. From underneath, secure a step screw into each corner, as shown in illustration.

  • Page 10: Placing The Cooking Components

    11. PLACING THE COOKING COMPONENTS Parts Required: Hanging Rack (#11) Cooking Grid (#12) Heat Diffuser Plate (#13) Installation: • Open the Lid of the Barrel Body. Insert the Heat Diffuser Plate into the lowest position inside the Barrel Body, directly above the Charcoal Basket.

  • Page 11: Operating Instructions

    OPERATING INSTRUCTIONS UNDERSTANDING AIRFLOW The heart of your smoker lies in the relationship between the Air Intake Pipes and the Chimney dampers. Opening the dampers allows more air to flow through the body of the smoker, allowing the charcoal to burn very hot and create firey embers. To cook at lower temperatures, keep the Air Intake Pipes and the Chimney dampers open only a small distance, allowing for minimal airflow and maximum heat retention in the Barrel Body of the smoker.

  • Page 12: Using Wood Pellets For Flavoring

    Pit Boss® hardwood pellets produce less than 1% of ash, an entire 40 lb (18 kg) bag of pellets will only turn into half a cup of ash, which makes clean up a breeze.

  • Page 13: Extinguishing The Smoker

    IMPORTANT: Do not use water to extinguish the charcoal as this could damage the Charcoal Basket. CARE & MAINTENANCE Any Pit Boss® unit will give you many years of flavorful service with minimum cleaning. Follow these cleaning and maintenance tips to service your smoker: 1.

  • Page 14: Tips & Techniques

    TIPS & TECHNIQUES Follow these helpful tips and techniques, passed on from Pit Boss® owners, our staff, and customers just like you, to become more familiar with your smoker: 1. FOOD SAFETY • Keep everything in the kitchen and cooking area clean. Use different platters and utensils for the cooked meat than the ones you used to prepare or transport the raw meat out to the smoker.

  • Page 15: Troubleshooting

    TROUBLESHOOTING Proper cleaning and maintenance will prevent common operational problems. When your griddle is operating poorly, or on a less frequent basis, the following troubleshooting tips may be helpful. For FAQ, please visit www.pitboss-grills.com . You may also contact your local dealer or Customer Care for assistance. WARNING: Ensure the smoker is completely cooled prior to any inspection, cleaning, maintenance or service work.

  • Page 16: Replacement Parts

    REPLACEMENT PARTS Part# Description Part# Description Chimney Lid (x1) Wheel Axle Pin (x2) Chimney Stack (x1) Wheel Washer (x2) Barrel Lid (x1) Wheel Locking Pin (x2) Upper Lid Hinge (x1) Screw (x4) Lower Lid Hinge (x1) Screw (x16) Lid Handle (x1) Screw (x2) Side Shelf (x2) Locking Washer (x4)

  • Page 17: Warranty

    CONDITIONS All charcoal smokers by Pit Boss® Grills, manufactured by Dansons, carry a limited warranty from the date of sale by the original owner. The warranty coverage begins on the original date of purchase and proof of date of purchase, or copy of original bill of sale, is required to validate the warranty. Customers will be subject to parts, shipping, and handling fees if unable to provide proof of the purchase or after the warranty has expired.
  • Page 18 IMPORTANT For all questions, inquiries, or customer support, please contact Genesis International Corporation Pty Ltd. +61 8 9248 9822 | service@genesiscorp.com.au WARNING: THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING CARBON MONOXIDE, WHICH IS A COMBUSTION BY-PRODUCT KNOWN TO CAUSE CANCER, BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM.
