B. THREE-POINT HITCH
(CAT. II, III, IIIN)

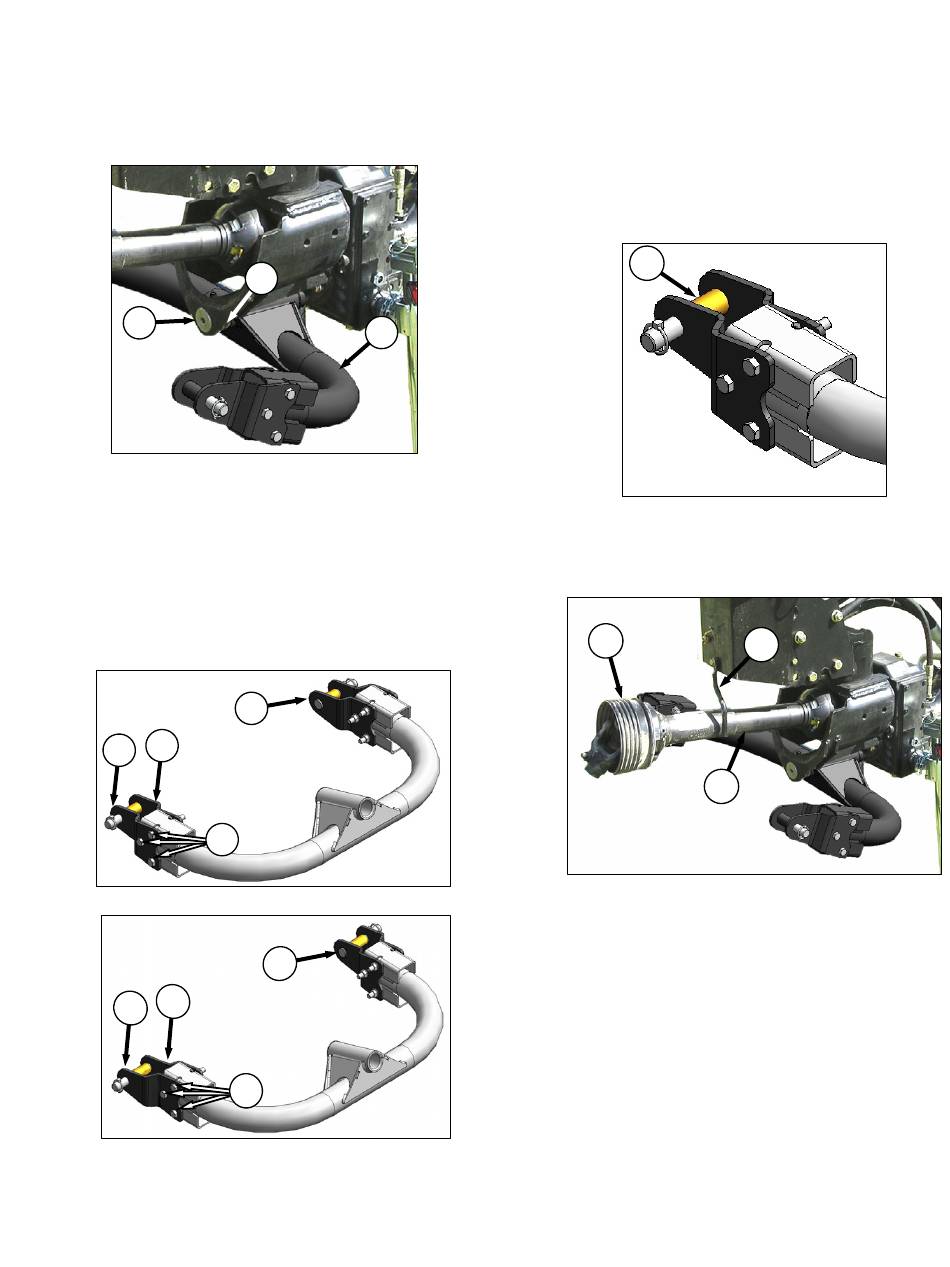

I. INSTALL THREE-POINT HITCH YOKE
B
a. Attach the three-point hitch adapter (A) to the
Articulating Power Tongue (APT) with pin (B).
The installation is similar to that described in the
previous section.
b. Secure pin (B) with clevis pin (C), washers, and
cotter pin.
c. The arms on the adapter (A) can be set up to
suit category II and IIIN, or category III tractor
hitch arms:
G
F
E
Category II or IIIN
G
F
E
Category III
1. Remove pins (D).
2. Remove bolts (E), three per side.
169001
UNLOADING AND ASSEMBLY
C
A
D
D
3. Flip outer plate (F) and inner plate (G) on
each arm.
The inner plate (G) has a smaller joggle
than the outer plate (F). Always maintain
the proper locations.
4. Reinstall bolts (E).
5. Replace pins (D).
H
Bushings (H) on pins can be removed to
suit hole size in tractor hitch arms.
J
d. Assemble PTO driveline male half (J) onto PTO
shaft (K) on APT. Push male half so that PTO
shaft is at its fully compressed length.
e. Locate PTO shaft in hook (L).
21
IMPORTANT
NOTE
L
K
