Step 10. Attach Articulating Power Tongue (Apt) - MacDon A30-D Unloading And Assembly Instructions

STEP 10. ATTACH ARTICULATING
POWER TONGUE (APT)
CAUTION
Keep hands clear when lowering APT.

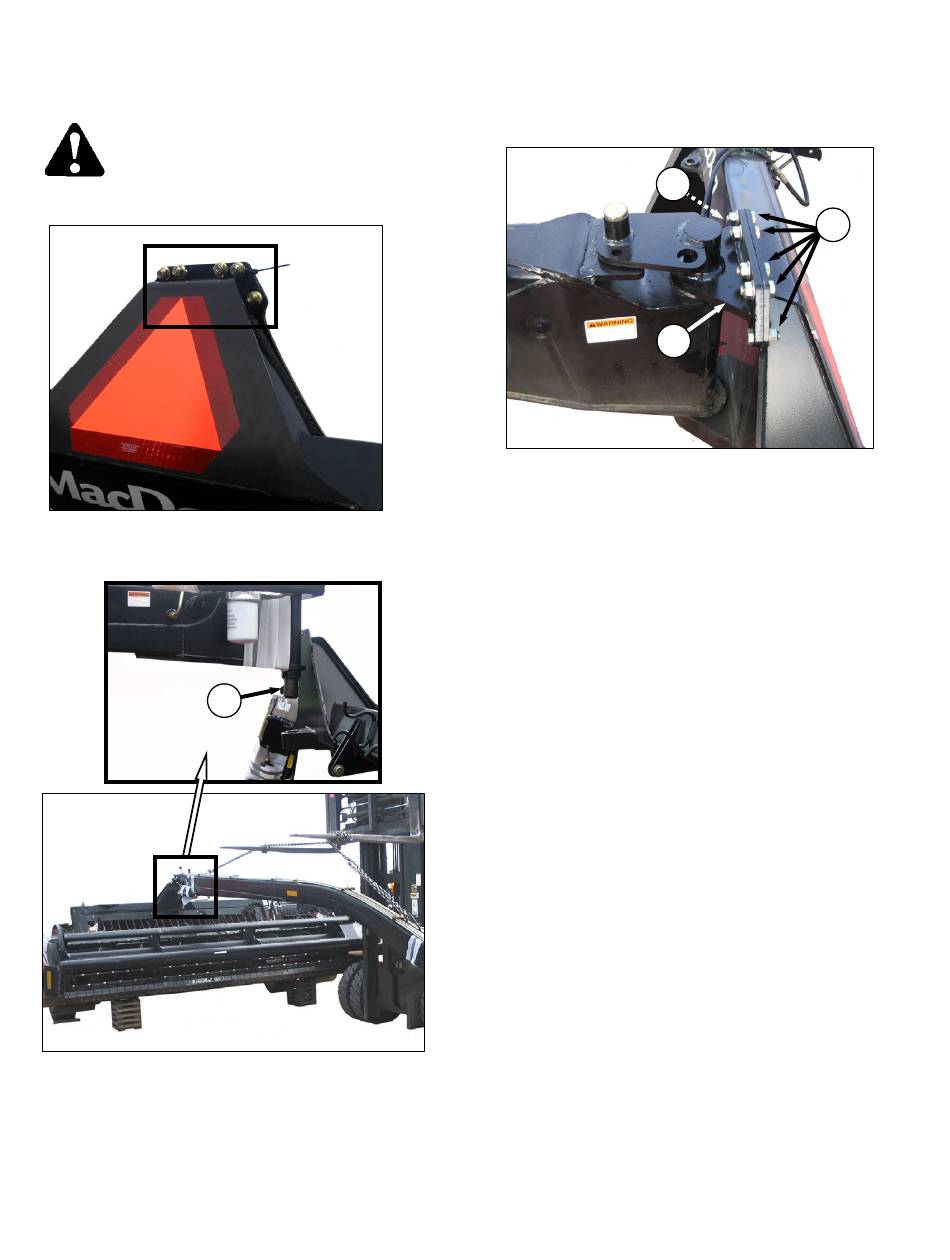

a. Remove six bolts and nuts from frame, and
retain for reinstallation.
b. Using a forklift or equivalent, manoeuvre APT
into position, and install pivot pin (A) into mower
conditioner carrier frame.
Use the jack to adjust the pitch of the APT
for proper alignment when installing
pivot pin.
169001
UNLOADING AND ASSEMBLY
A
NOTE
Pin may need to be tapped into final
position with a hammer due to the tight
clearances.
c. Secure pivot pin (A) to frame by installing six
5/8 x 1.75 long Gr. 8 bolts (B) with lock nuts
removed at step a. Install bolts with heads
facing aft.
d. Torque to 200 ft·lbf (271 N·m).
16
NOTE
B
B
A
Revision F
