STEP 8.

REMOVE SHIPPING

CHANNELS AND

BLOCKING

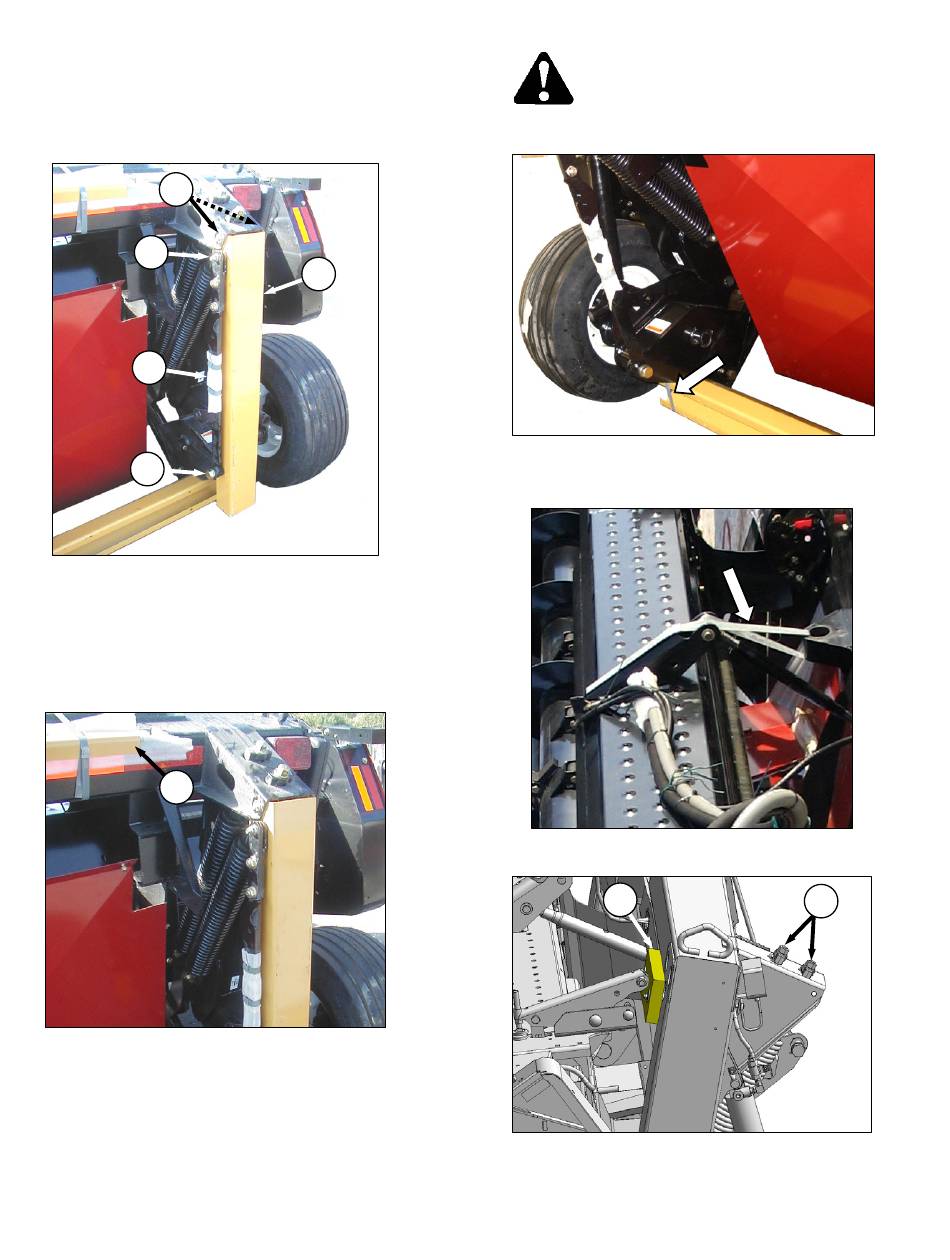

a. Remove bolts (A) and (B), and remove banded

link and arm (C) from shipping channel (D) at

each float spring mount. Retain bolts (A) and (B)

for reinstallation.

b. Remove

bolts

(E),

channel (D). Discard.

c. Remove banding, and remove the two shipping

angles (F). Discard.

169001

UNLOADING AND ASSEMBLY

and

remove

shipping

CAUTION

Keep feet clear when removing banding.

d. Remove banding at ends of shipping beam, and

let beam fall to ground.

e. Remove banding at center-link location.

Loosen float springs by turning bolts (H)

counterclockwise on both sides of frame, so that

blocks (G) can be removed.

Revision F
