ZyXEL Communications WX3100-TO Quick Start Manual

WX3100-TO

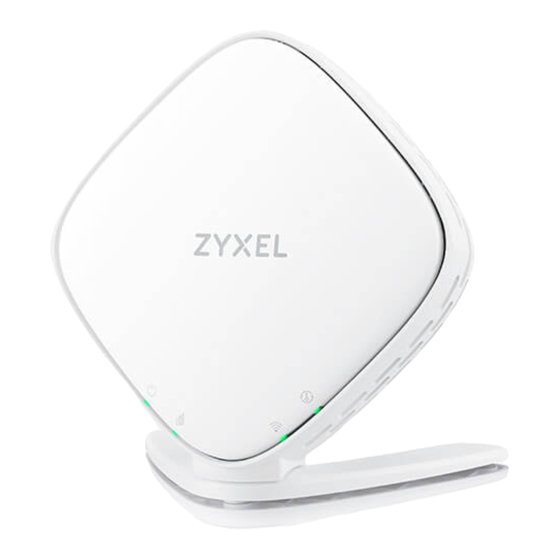

Dual-Band Wireless AX1800 Gigabit Extender

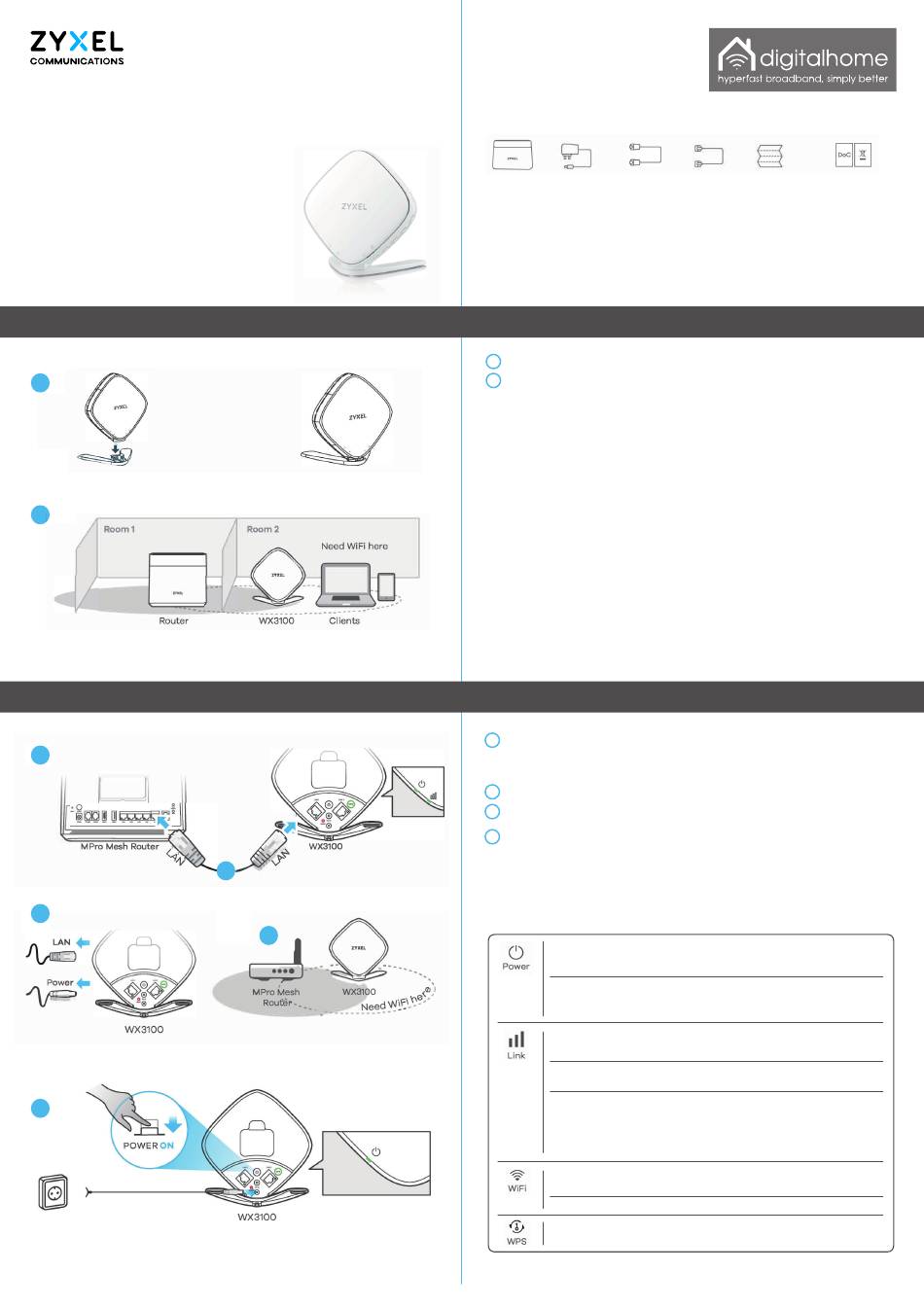

Quick Start Guide
Preparing to use the WX3100
1
2
Setting up your Extender - Option 1
1
2
4
1 / 2
1
3
Wait until the power LED
turns steady green
Package Contents
Device Power Cable Ethernet Cable
If you need any assistance please call us on
0333 0155156 or email help@digitalhomeuk.com
1 Attach the bracket to the bottom of the WX3100 as shown.
2 Consider where you want to place the WX3100 to extend your wireless
network. The extender needs to be placed close to, but not in the Wi-Fi
blackspot, as it still needs to connect to the router to create the mesh
network. This way it also maximises the coverage available.
There are two ways to set up your extender.
1
Firstly use the included Ethernet cable to connect the WX3100 LAN port
to the original MPro Mesh Router LAN port. Plug in the power adaptor
and wait until the POWER and LINK LEDs are steady green.
2
Then unplug the Ethernet and power cable from the WX3100.
Place the WX3100 where you want to extend your wireless network.
3
4
Plug in the power adapter. Make sure your LINK LED is steady green
(preferred) or amber.
For more details on the LEDs, please refer to the LED table below.
To add more extenders to your network, repeat from step 1.
Note:
You do not need to plug in the Ethernet cable in this step.
Green
On - Power is on or the MPro Mesh configuration process is done.
Blinking - The WX3100 is starting up or under the MPro Mesh
configuration process.
Red On - The WX3100 detects a system error.
Blinking (Fast) - The WX3100 is upgrading firmware.
Blinking (Slow) - The Easy Mesh process has failed.
With Wireless Connection
Green On - The WiFi connection to the MPro Mesh router is good.
Amber
On - The signal is too strong. We suggest moving the WX3100
away from the MPro Mesh Router.
Red On - The signal is too weak. Move theWX3100 closer to the
MProMesh Router.
With Wired Connection
Green
On - The Ethernet cable is connected to the WX3100 LAN port.
Green
On - The WiFi connection to the MPro Mesh router is good.
Blinking - The WX3100 is transmitting/receiving WiFi data.
Off - 2.4G/5G WiFi is disabled.
Amber Blinking - The WPS is in process.
Off - The WPS process is done.
Phone Cable Quick Start Guide Declaration of Conformity
Safety Warnings
