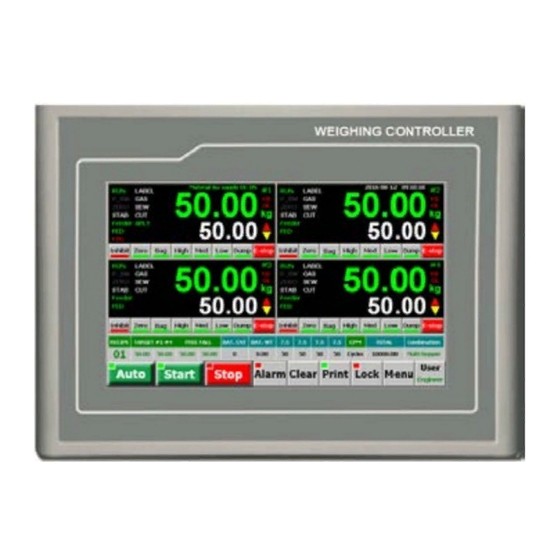

BST106-M10[GH] Weighing Controller
For: Increment Ration Packing Scale [4-scale]
[Respective/Combination Packing]
Operation Manual V6.1
Changsha Supmeter Technological Co.,Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BST106-M10(GH) and is the answer not in the manual?

Questions and answers

Related Manuals for Supmeter BST106-M10(GH)

Summary of Contents for Supmeter BST106-M10(GH)

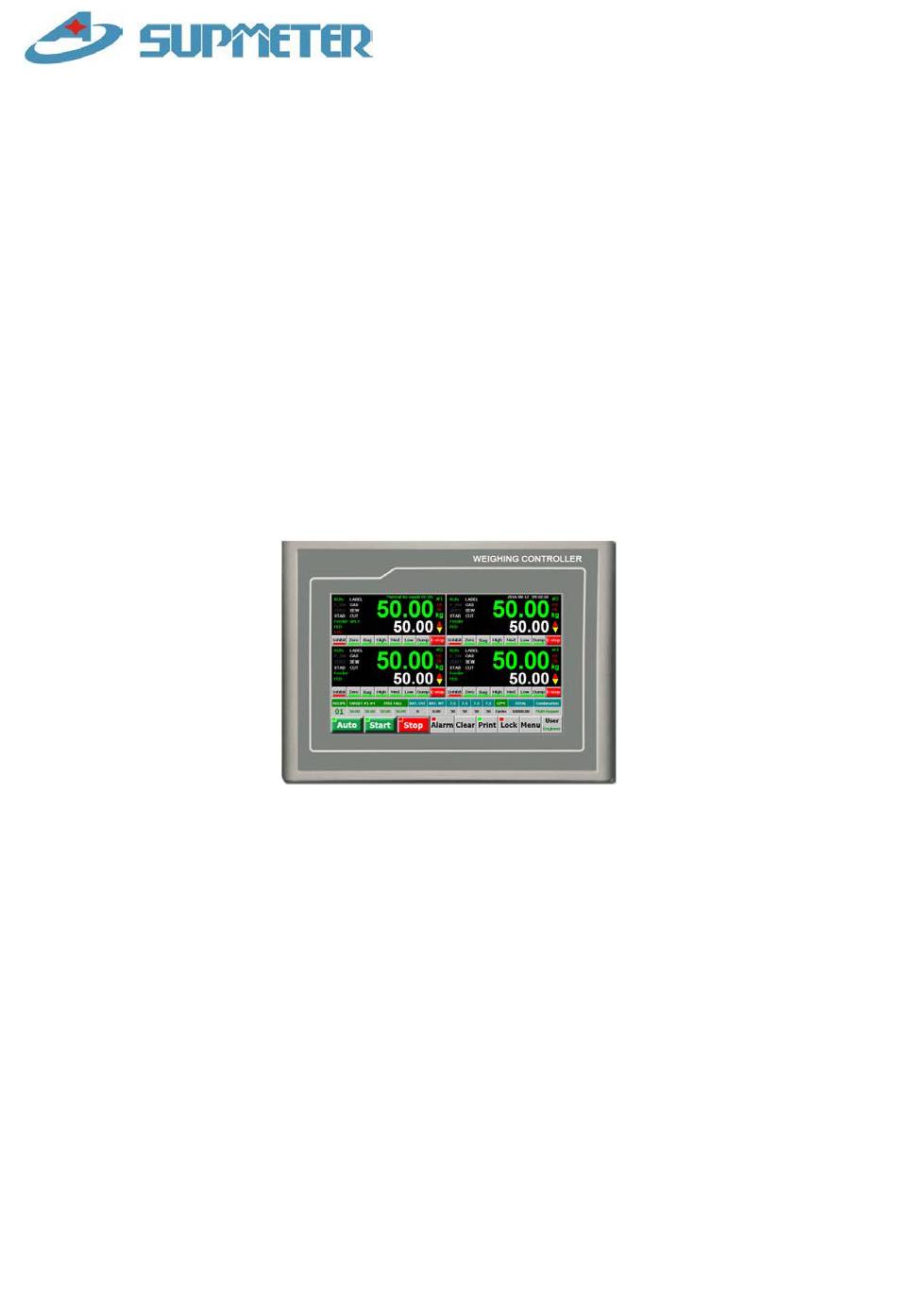

  • Page 1 BST106-M10[GH] Weighing Controller For: Increment Ration Packing Scale [4-scale] [Respective/Combination Packing] Operation Manual V6.1 Changsha Supmeter Technological Co.,Ltd.
