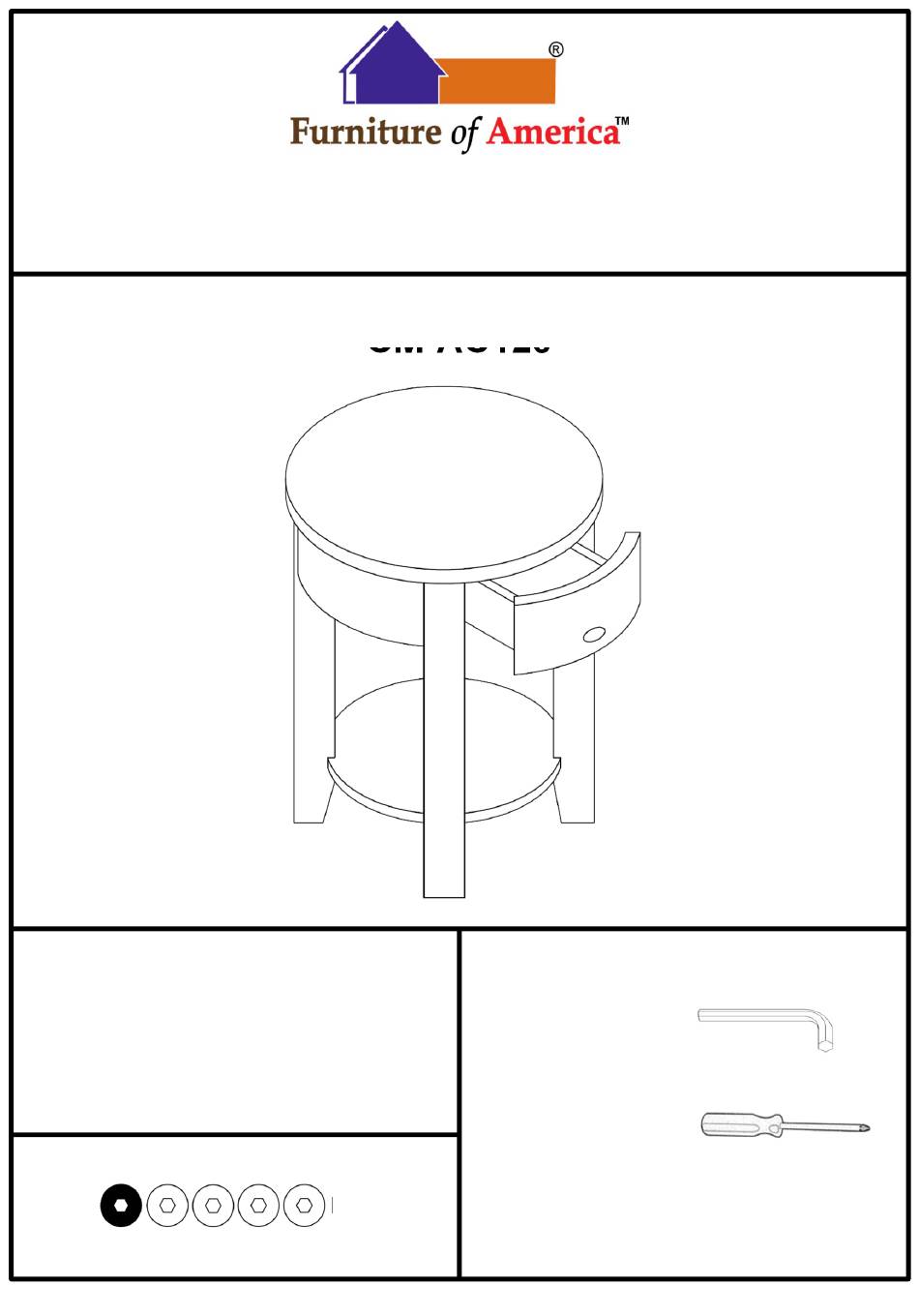

Assembly Instructions

CM-AC120

ASSEMBLY RATING

The Assembly Rating is a 5-point system that

shows the degree of effort needed in

Allen Wrench

assembling a specific product (with 1 being

(Included)

easy and 5 being difficult). For some

products, two persons are recommended.

Phillips Screwdriver

(Not Included)

DIFFICULT

EASY

Page 1 of 6

Rev.14-03-18

Table of Contents

Do you have a question about the CM-AC120 and is the answer not in the manual?

Page 1 Assembly Instructions CM-AC120 ASSEMBLY RATING Tools Required for Assembly: The Assembly Rating is a 5-point system that shows the degree of effort needed in Allen Wrench assembling a specific product (with 1 being (Included) easy and 5 being difficult). For some products, two persons are recommended.
Page 2 Page 2 of 6...
Page 3 Before you begin, please read Page 2 of “Assembly and Care Advice”. And remember, do not tighten until each step is completed or instructed. Parts List Hardware List #1 x 1 pc #A x 8 pcs Table Top Bolt 1/4”x1-3/8” #2 x 4 pcs #B x 8 pcs Flat Washer...
Page 4 Remove the drawer out of the table top (#1) Step 1 until assembly is completed. Step 2 Carefully place the table top (#1) #A x 4 pcs facing down on a protective #B x 4 pcs surface. Align the leg (#2) with #C x 4pcs the 2 pre-drilled holes onto the Enlarged...
Page 5 Align and insert the support shelf (#3) with Step 3 the pre-drilled holes of the two legs (#2). Step 4 #A x 4 pcs Enlarged Align the third leg (#2) with the #B x 4 pcs #C x 4 pcs pre-drilled holes onto the table top (#1) AND the support shelf (#3).
Page 6 Insert 4 screws (#E) through the support shelf Step 5 (#3) and using a Phillips screwdriver to secure the support shelf (#3) with the legs (#2). Enlarged #E x 4 pcs Turn right (clockwise) to tighten Carefully turn the completed table upright. Insert the Step 6 drawer back into the table top.
