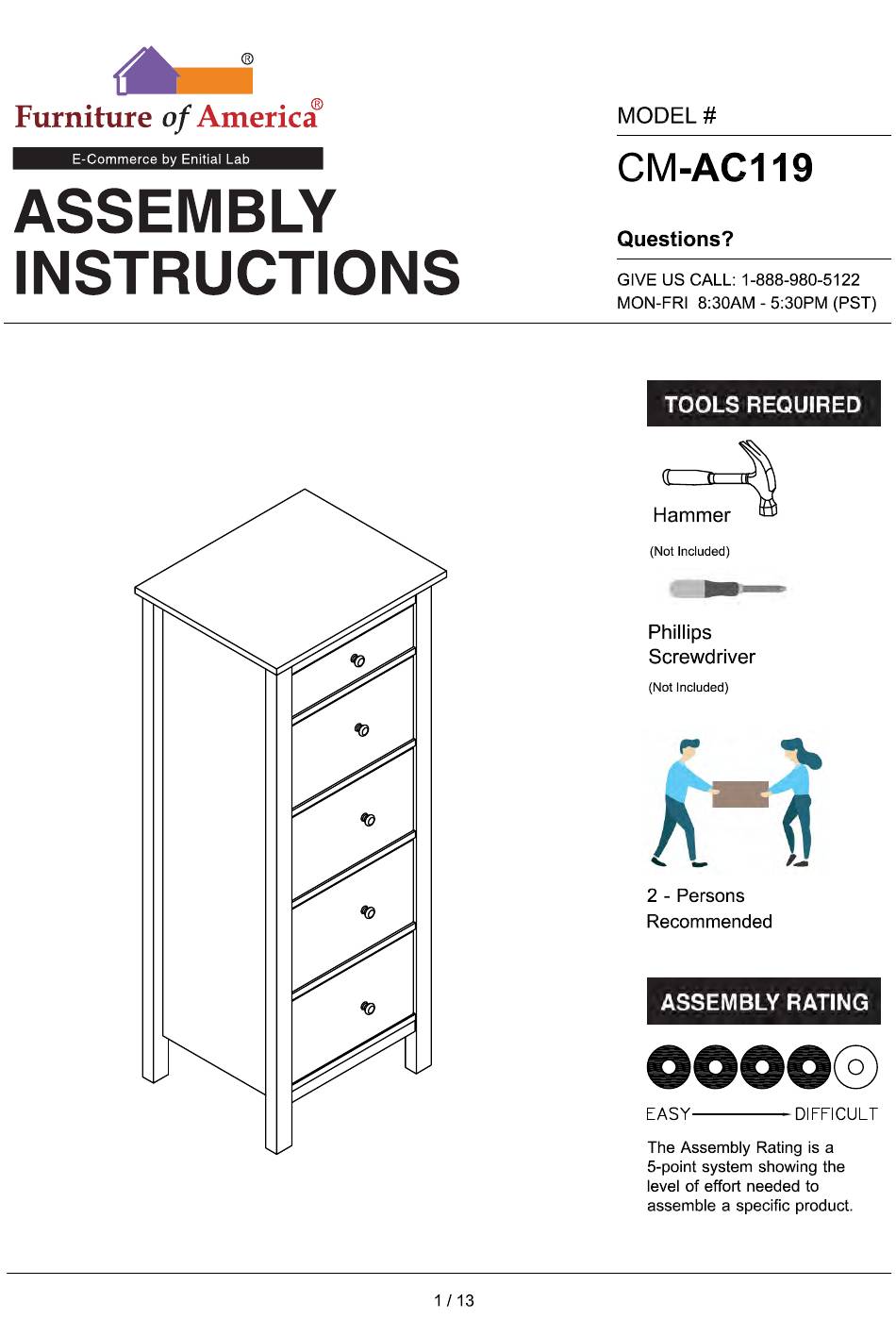

- Page 1 VERSION # 20-08-20...
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 IT IS THE USER'S RESPONSIBILITY TO MAINTAIN THE FURNITURE. THE HARDWARE MAY LOOSEN OVER TIME AND MAY CAUSE THE FURNITURE TO BE WOBBLY AND UNABLE TO SUPPORT ITS INTENDED WEIGHT CAPACITY. THIS MAY LEAD TO COLLAPSE AND MAY CAUSE SERIOUS INJURY. 4 / 13...
- Page 5 CAM LOCK FASTENER ASSEMBLY INSTRUCTIONS Note : Every cam lock bolt must have a cam lock connector in order to fasten the cam bolt parts together. cam lock screwdriver Screw the cam Insert the cam bolt into the bolt into panel. bolt hole of joint panel.
- Page 7 Bracket The Restraint Strap Small Screw...
- Page 8 Please refer to page 5 on how to tighten cam locks (#B) onto cam bolts (#A).
- Page 10 Apply a small dab of glue on the end of the dowels (#D) before inserting the dowels (#D) to dowel holes on the panels.
- Page 12 2pcs Align product to the wall, than mark the wall on where the wall mount is going to be placed. Use a drill to create a hole onto the marked wall that is no bigger than the plastic insert. Insert in plastic inserts to the hole in the wall, then secure bracket to plastic insert by using screw.
- Page 13 13 / 13...
