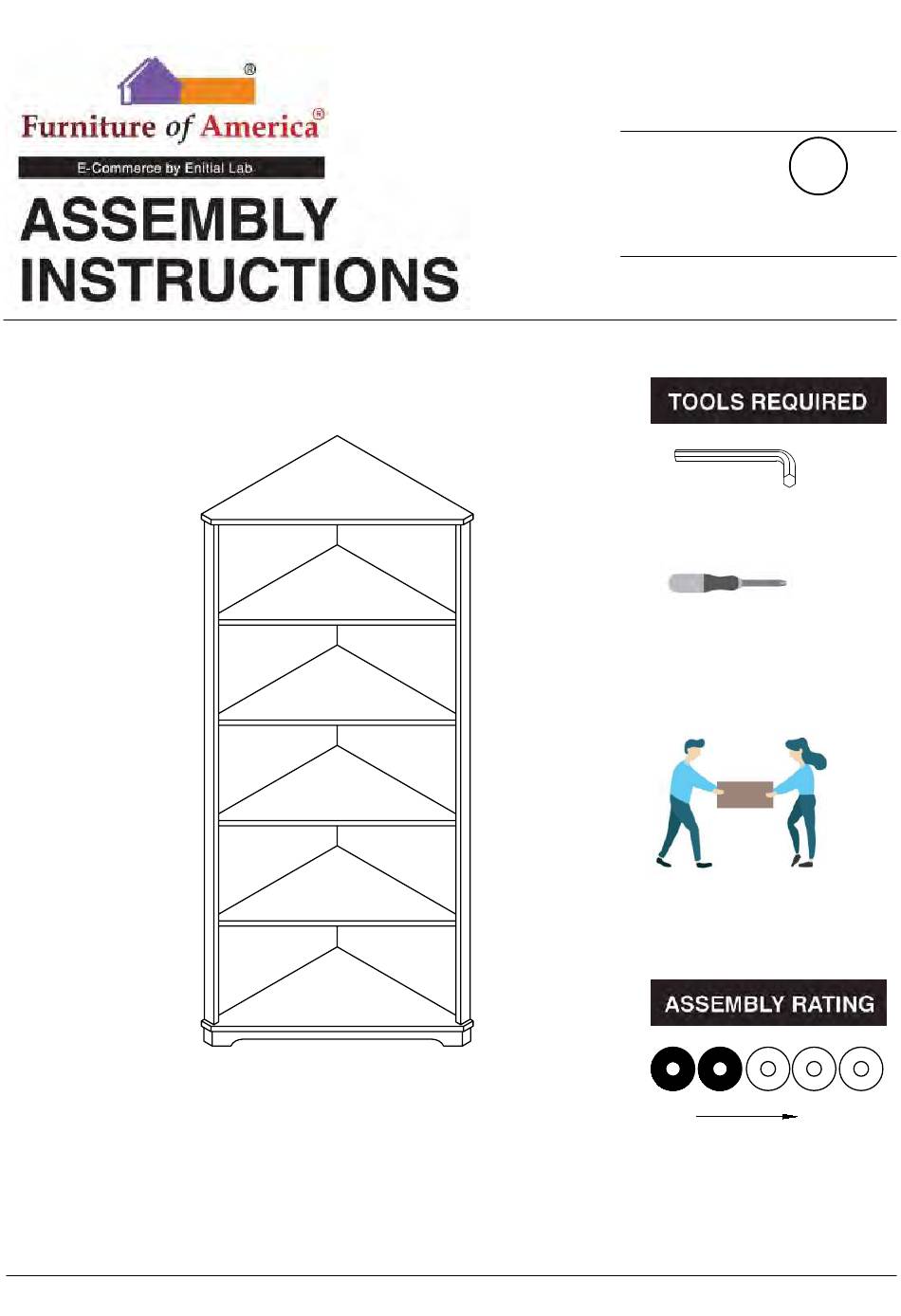

VERSION # 20- 10-13
1 / 1 1
MODEL #
CM-AC806 VN
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America Rockwall CM-AC806
Summary of Contents for Furniture of America Rockwall CM-AC806
- Page 1 MODEL # CM-AC806 VN Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 1 1...
- Page 5 CAM LOCK FASTENER ASSEMBLY INSTRUCTIONS Note : Every cam lock bolt must have a cam lock connector in order to fasten the cam bolt parts together. cam lock screwdriver Screw the cam Insert the cam bolt into the bolt into panel. bolt hole of joint panel.
- Page 6 BOOKCASE CM-AC806 VN #1 1pc #2 1 pc #3 1pc #4 4 pcs Top Panel Left Side Panel Right Side Panel Divider Shelf #5 1pc Bottom Panel #B 2 8pcs #C 26 pcs #D 1Set #A 2 8pcs Anty Tip Kit Cam-Bolt Cam-Lock Wood Dowel...
- Page 7 ASSEMBLY INSTRUCTIONS Part #1 x1pc Part #2 x 1 pc Part #3 x1pc Part # 5 x1pc Hardware #A x 2 8pcs 7 / 1 1...
- Page 8 ASSEMBLY INSTRUCTIONS Part #4 x 4 pcs Hardware # B x 8pcs Hardware # C x 8pcs Insert dowels (#C) to side panels (#2). Align shelves (#4) to the side panel (#2), then secure by using cam locks (#B) Hardware # B x 12 pcs Insert dowels (#C) to the side panel Hardware # C x 10 pcs (#3), then align side panel (#2) with...
- Page 9 ASSEMBLY INSTRUCTIONS Insert dowels (#C) to top and bottom panels Hardware # B x 4 pcs (#1,5), then align top and bottom panels (#1,5) to the unit. Secure by using cam locks Hardware # C x 8 pcs (#B). Hardware # B x 4 pcs Secure by using cam locks (#B).
- Page 10 ASSEMBLY INSTRUCTIONS H ardware #D x 1Set 10 / X X X X X X X 1 1...
- Page 11 11/11...
