3M PPS HVLP Quick Start Manual

3M™ Performance Spray Gun HVLP – Gravity
Maximum Operating Pressure: 20 psi | 1.38 bar

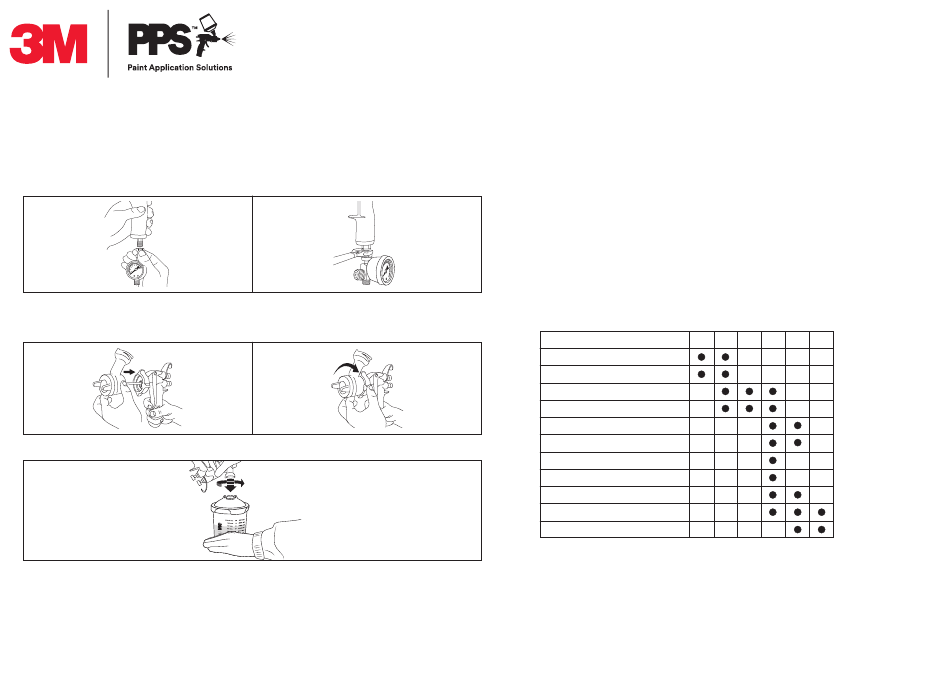

Assembly
1
Attach the supplied air flow valve to the bottom of the gun.
2
Attach the nozzle to the spray gun with the locking collar fully connected. Note: It is easier to install
the nozzle while pulling the trigger backward toward the spray gun handle. To remove the nozzle
from the spray gun, reverse the process.
3
Attach 3M™ PPS™ Series 2.0 spray cup to nozzle. See back for directions.
4
Once the spray gun is properly assembled you may attach the air line.
For additional questions, contact your local 3M representative or: 1 877 MMM CARS (666-2277)
See manual for additional use and health and safety information.
WARNING! Do not immerse spray gun or nozzles in cleaning solvents or gun washers. The maximum operational air pressure of this HVLP spray gun is 20 PSI.
Recommended Set Up Starting Points
Fan Control Knob: Open 2 rotations from closed position
Fluid Control Knob: Open 4 rotations from closed position
Air Flow control valve: 18-20 psi / 1.24 – 1.37 Bar
Nozzle Recommendation
*Starting points only, refer to Paint Manufacture for recommendation on fluid tip size
2.0
High Viscosity Coatings
Sprayable Fillers
High Build Primer
Primer Surfacer
Wet on Wet Primer
Primer Sealer
Direct Gloss
Single Stage Top Coat
Solvent Base Color
Clearcoat
Waterborne Base Coat
1.8 1.6 1.4 1.3 1.2
