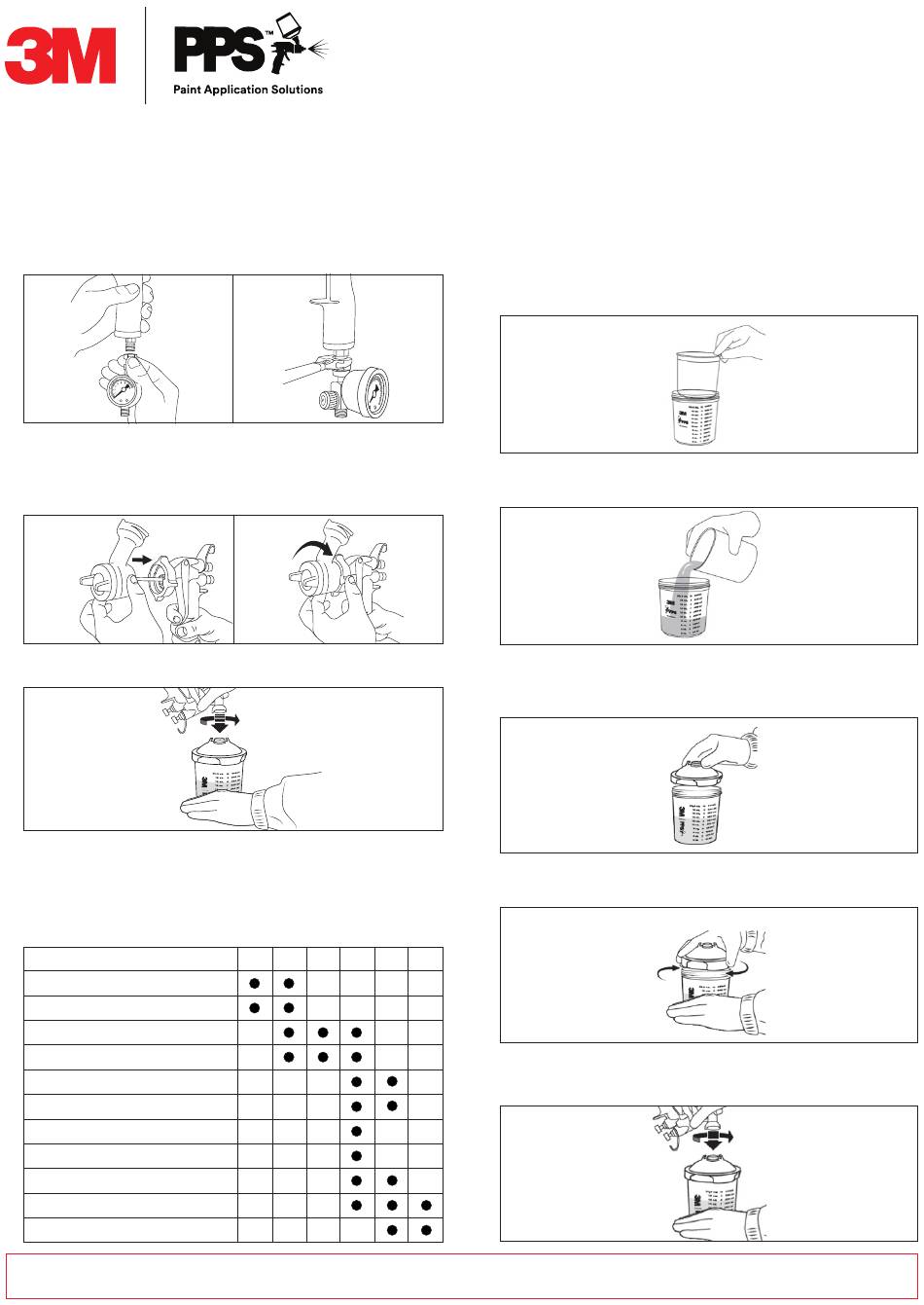

3M PPS 2.0 Series Quick Start Manual

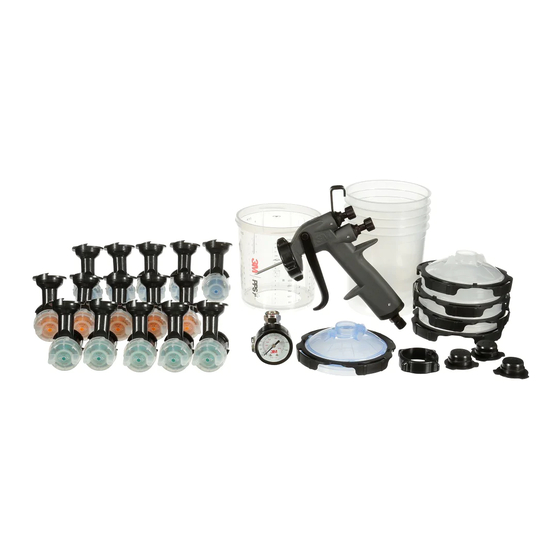

3M™ Performance Spray Gun HVLP – Gravity
Maximum Operating Pressure: 20 psi | 1.38 bar

Assembly

1
Attach the supplied air flow valve to the bottom of the gun.
2
Attach the nozzle to the spray gun with the locking collar fully
VOLTAIRE 13
connected. Note: It is easier to install the nozzle while pulling
the trigger backward toward the spray gun handle. To remove
the nozzle from the spray gun, reverse the process.
3
Attach 3M™ PPS™ Series 2.0 spray cup to nozzle.
VOLTAIRE 5
4
Once the spray gun is properly assembled you may attach the
air line.

Nozzle Recommendation

*Starting points only, refer to Paint Manufacture for
recommendation on fluid tip size
High Viscosity Coatings
Sprayable Fillers
High Build Primer
Primer Surfacer
Wet on Wet Primer
Primer Sealer
Direct Gloss
Single Stage Top Coat
Solvent Base Color
Clearcoat
Waterborne Base Coat
WARNING! Do not immerse spray gun or nozzles in cleaning solvents or gun washers. The maximum operational air pressure of this
HVLP spray gun is 20 PSI.
VOLTAIRE 14
VOLTAIRE 6
VOLTAIRE 19
2.0 1.8 1.6 1.4

Recommended Set Up Starting Points

Fan Control Knob: Open 2 rotations from closed position
Fluid Control Knob: Open 4 rotations from closed position
Air Flow control valve: 18-20 psi / 1.24 – 1.37 Bar
Adding the 3M
Spray Cup System Components
1
Insert the 3M™ PPS™ Series 2.0 Spray Cup System disposable
liner into the 3M™ PPS™ Series 2.0 Spray Cup System mixing cup.
2
Pour material to be sprayed into the 3M™ PPS™ Series 2.0
Spray Cup System mixing cup. Stir as needed.
3
Place the 3M™ PPS™ Series 2.0 Spray Cup System lid with
built-in filter on top of the 3M™ PPS™ mixing cup with liner
and snap into place.
4
Turn until tight. Insert 3M™ PPS™ Series 2.0 Spray Cup Sys-
tem sealing plug prior to shaking or sealing.
1.3 1.2
5
Attach spray gun to filled 3M™ PPS™ Series 2.0 Spray Cup
System cup.
PPS Series 2.0
™ ™
