3M PPS Series 2.0 Manual

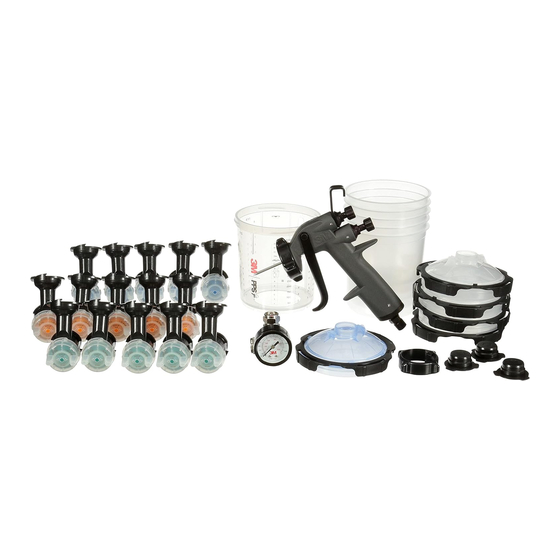

3M™ Performance Spray Gun HVLP – Gravity
Maximum Operating Air Pressure: 20 psi | 1.38 bar

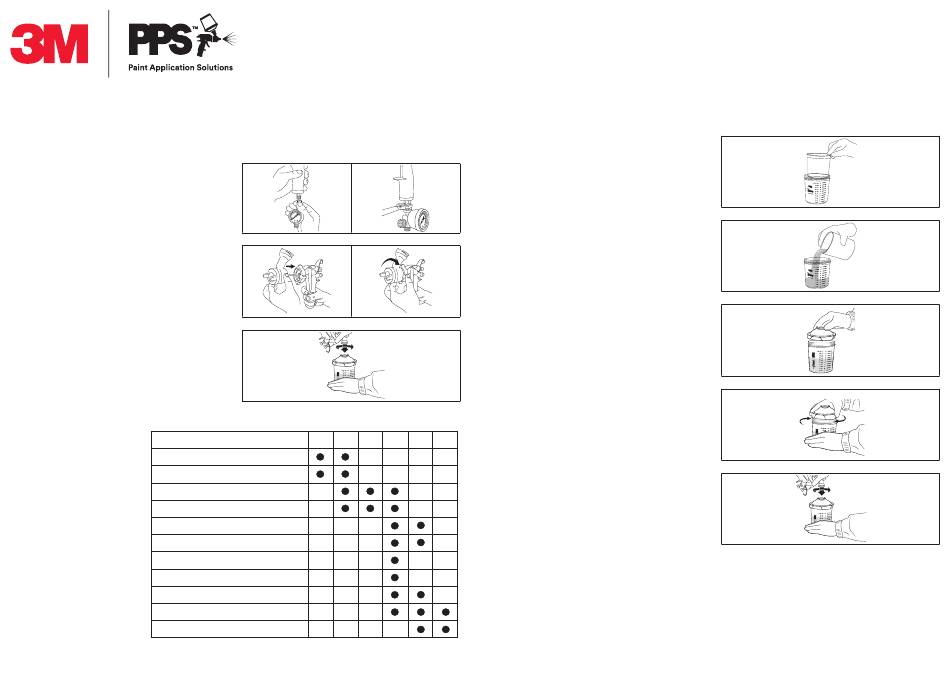

Assembly
1
Attach the supplied air flow valve to the
bottom of the gun.
2
Attach the nozzle to the spray gun with
the locking collar fully connected. Note:
It is easier to install the nozzle while pulling
the trigger backward toward the spray gun
handle. To remove the nozzle from the spray
gun, reverse the process.
3 Attach 3M™ PPS™ Series 2.0 spray cup
to nozzle.
4
Once the spray gun is properly assembled
you may attach the air line.
Nozzle Recommendation
High Viscosity Coatings
* Starting points only, refer
Sprayable Fillers
to Paint Manufacture for
recommendation on fluid
High Build Primer
tip size
Primer Surfacer
Wet on Wet Primer
Primer Sealer
Direct Gloss
Single Stage Top Coat
Solvent Base Color
Clearcoat
Waterborne Base Coat
WARNING! Do not immerse spray gun or nozzles in cleaning solvents or gun washers. The maximum operational air pressure of this HVLP spray gun is 20 psi/ 1.38 bar.
See manual for additional use and health and safety information.
Recommended Set Up Starting Points
Fan Control Knob: Open 2 rotations from closed position
Fluid Control Knob: Open 4 rotations from closed position
Air Flow control valve: 18-20 psi / 1.24 – 1.37 Bar
Adding the 3M
System Components
1
2
3
4
1.8 1.6 1.4 1.3 1.2
2.0
5
PPS Series 2.0 Spray Cup
™ ™
Insert the 3M™ PPS™ Series 2.0 Spray Cup
System disposable liner into the 3M™ PPS™
Series 2.0 Spray Cup System mixing cup.
Pour material to be sprayed into the 3M™
PPS™ Series 2.0 Spray Cup System mixing
cup. Stir as needed.
Place the 3M™ PPS™ Series 2.0 Spray Cup
System lid with built-in filter on top of the
3M™ PPS™ mixing cup with liner and snap
into place.
Turn until tight. Insert 3M™ PPS™ Series
2.0 Spray Cup System sealing plug prior to
shaking or sealing.
Attach spray gun to filled 3M™ PPS™ Series
2.0 Spray Cup System cup.
