HZ862400TX
Hendrik Display-Top Apothecary
Cabinet
Assembly Instructions
PO#:
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the HZ862400TX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SEI HZ862400TX

Summary of Contents for SEI HZ862400TX

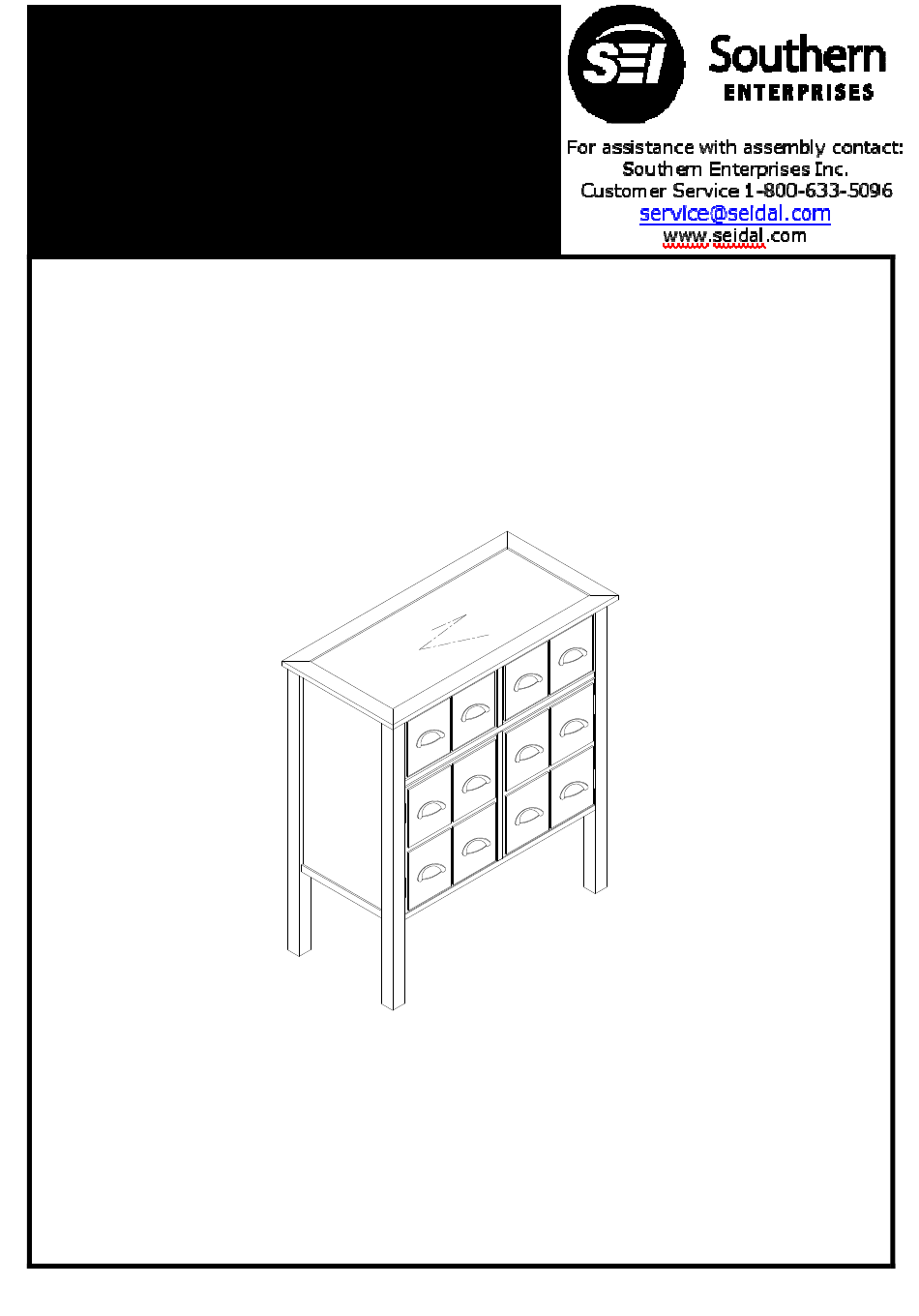

  • Page 1 HZ862400TX Hendrik Display-Top Apothecary Cabinet Assembly Instructions PO#: Page 1...

  • Page 2: Parts List

    Hendrik Display-Top Apothecary Cabinet Parts List Please check packaging for all parts and hardware before discarding. Unpack and lay parts on clean, padded surface like carpet or blanket. Check that you have all parts indicated. Call customer service if hardware is missing.
  • Page 3 Quantity Quantity Quantity of 1 of 1 of 1 Left Drawer Side Panel Right Drawer Side Panel Drawer Back Panel Quantity Quantity of 1 of 1 Drawer Bottom Panel Glass Top Quantity Quantity Quantity of 16 of 16 of 16 Wood Dowel Cam Bolt Cam Lock...
  • Page 4 Quantity Quantity Quantity Shelf Pin Hinge Magnet Quantity Quantity of 2 of 8 Tilting Preventing Hardware Cotton Mat Care and Cleaning Instructions: Before using, wipe with a clean, dry cloth. For replacement parts or questions, please Periodically apply furniture wax to renew call Customer Service at 1-800-633-5096.
  • Page 5 Hendrik Display-Top Apothecary Cabinet Assembly Instructions Start with finger to help align Cam Bolts. Insert Cam Locks (B) into Corresponding holes on Middle Panel (6). Screw Cam Bolts (A) into threaded holes on Shelf Panel (4) and Bottom Panel (5). Attach Shelf Panel (4) and Bottom Panel (5) to Middle Panel (6) by inserting Cam Bolts (A) and Wood Dowels (C) into...
  • Page 6 Insert Cam Locks (B) into corresponding holes on Left Side Panel (2) and Right Side Panel (3). Screw Cam Bolts (A) into threaded holes on Top Panel (1). Attach Top Panel (1) to Left Side Panel (2) and Right Side Panel (3) by inserting Cam Bolts (A) and Wood Dowels (C) into corresponding holes until all components meet.
  • Page 7 Attach Drawer Side Panels (13/14) to Drawer Back Panel (15) using Screws (E). Tighten Screws (E) with Phillips screwdriver. Insert Drawer Bottom Panel (16) into the grooves of panels (13/14/15). Attach Drawer Front Panel (12) to the assembled unit using Screws (E). Finally, attach Knobs (F) to the Drawer Front Panel (12) using Bolts (G).
  • Page 8 Insert drawers into the unit as shown. Make sure all slides glide smoothly in and out. Insert Adjustable Shelf Panels (10/11) in the arrows direction. Figure7 Place the Glass Top (17) onto Top Panel (1). Figure 8 Page 8...
  • Page 9 Attach two Brackets (M) to back Panel using Screws (M). Tighten screws (M) using a Philips screwdriver. Mark two desired locations on wall in the same distance as the Brackets (M) on the back of the unit. Drill two 3/16" holes on wall. Insert plastic anchors (M) into the 2 holes on wall as shown.

  • Page 10: Parts Replacement Form

    Parts Replacement Form Customer Information Name Address City/State/Zip Code Phone Number Please indicate where you purchased this item: Store/Website/Catalog Please indicate color/size/style number: Style No Parts Letter Parts Description Quantity Needed Please immediately examine this product carefully. Any request for missing parts or damage replacement must be received within 90 days of your receipt of the product.
