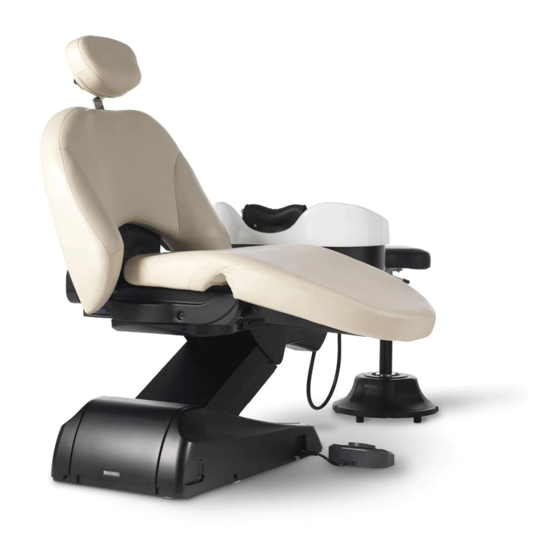

Takara Belmont YUME DX Quick Operation Manual
  1. Manuals
  2. Brands
  3. Takara Belmont Manuals
  4. Indoor Furnishing
  5. Yume DX
  6. Quick operation manual

Takara Belmont YUME DX Quick Operation Manual

Hide thumbs Also See for YUME DX:

Advertisement

Quick Links

Download this manual
YUME DX
QUICK OPERATION GUIDE
BB-QG-YMDX-ENGeu 2106

Advertisement

loading
Need help?

Need help?

Do you have a question about the YUME DX and is the answer not in the manual?

Questions and answers

Related Manuals for Takara Belmont YUME DX

Summary of Contents for Takara Belmont YUME DX

  • Page 1 YUME DX QUICK OPERATION GUIDE BB-QG-YMDX-ENGeu 2106...
  • Page 2 2 2 2 2...
  • Page 3 For details and safety information see the operating instructions. https://beauty.takarabelmont.co.jp/manual-site/...
  • Page 4 1 Foot Control/ Power Switch EX-YM2XL : left side foot control EX-YM2XR : right side foot control P1 Switch Preset position 1 (Used mainly for shampooing position) P2 Switch Preset Position 2 (Used mainly with the backrest upright) How to set the preset position 1) P1: Set the chair to the desired position P2: Set the chair backrest to the desired position 2) Turn off the main switch...
  • Page 5 2 Legrest Switch/Heater/Headrest Legrest Switch Legrest raising Legrest reclining Headrest Headrest Handle Headrest Remove the headrest when not in use...
  • Page 6 3 Shampoo Basin Shampoo Basin Thermostatic Control Stop Button Cold To adjust the temperature over 40 degrees, turn the knob while pressing the Stop Button Drain Cap (New) Drain Cap (Old)
  • Page 7 4 Shower head <YUME shower head> Water outlet *Surface to clean Shower head holder Shower Head Holder Rotate Cover -Consumable part Sponge Harder side of sponge to be facing upwards. -Consumable part (wash daily) Push Sponge holder Push...
  • Page 8 5 Preparation Attach the Neck Cushion and Head Pillow. Neck Cushion Head Pillow Short side Long side (faces the chair) Attach both sides of the Neck Cushion with snap button. Attach Attach Attach the head pillow as shown below. Head Pillow...

  • Page 9: Operation Procedures

    6 Operation procedures Turn on the power. Press the auto return switch to bring the chair to its initial position. Initial Position Auto Return Switch Instruct the customer to sit from the side, then face front. Press the P1 switch (or manual mode control) to bring the chair to its approximate position.
  • Page 10 6 Operation procedures Adjust the chair height. Face is in horizontal position Basin Top The basin top height should match the practitioner’s hip Confirm that there are no objects/people between the CAUTION seat/shampoo basin and the floor when operating the chair.
  • Page 11 6 Operation procedures After the shampooing, return the chair to its initial position. Initial Position Auto Return Switch Wipe off the remaining water after use. Clean the consumable parts. Neck Cushion Head Pillow Drain Cap Hair Catcher...
  • Page 12 7 Rotating the chair Press the P2 switch to bring the backrest to its upright position. Backrest Upright Press the lock position switch to unlock the chair rotation. Lock Position Switch The chair lock will not release when the backrest is within 30 degrees.
  • Page 13 7 Rotating the chair Press the lock position switch to lock the chair rotation. Lock Position Switch CAUTION Confirm that there are no objects/people in the way when rotating the chair. When finished, unlock the chair to return it to its initial position (0°), and lock.
  • Page 14 TAKARA BELMONT CORPORATION 2-1-1, Higashishinsaibashi,Chuo-ku,Osaka, 542-0083, Japan TEL : 81-6-6213-5945 FAX : 81-6-6212-3680...
