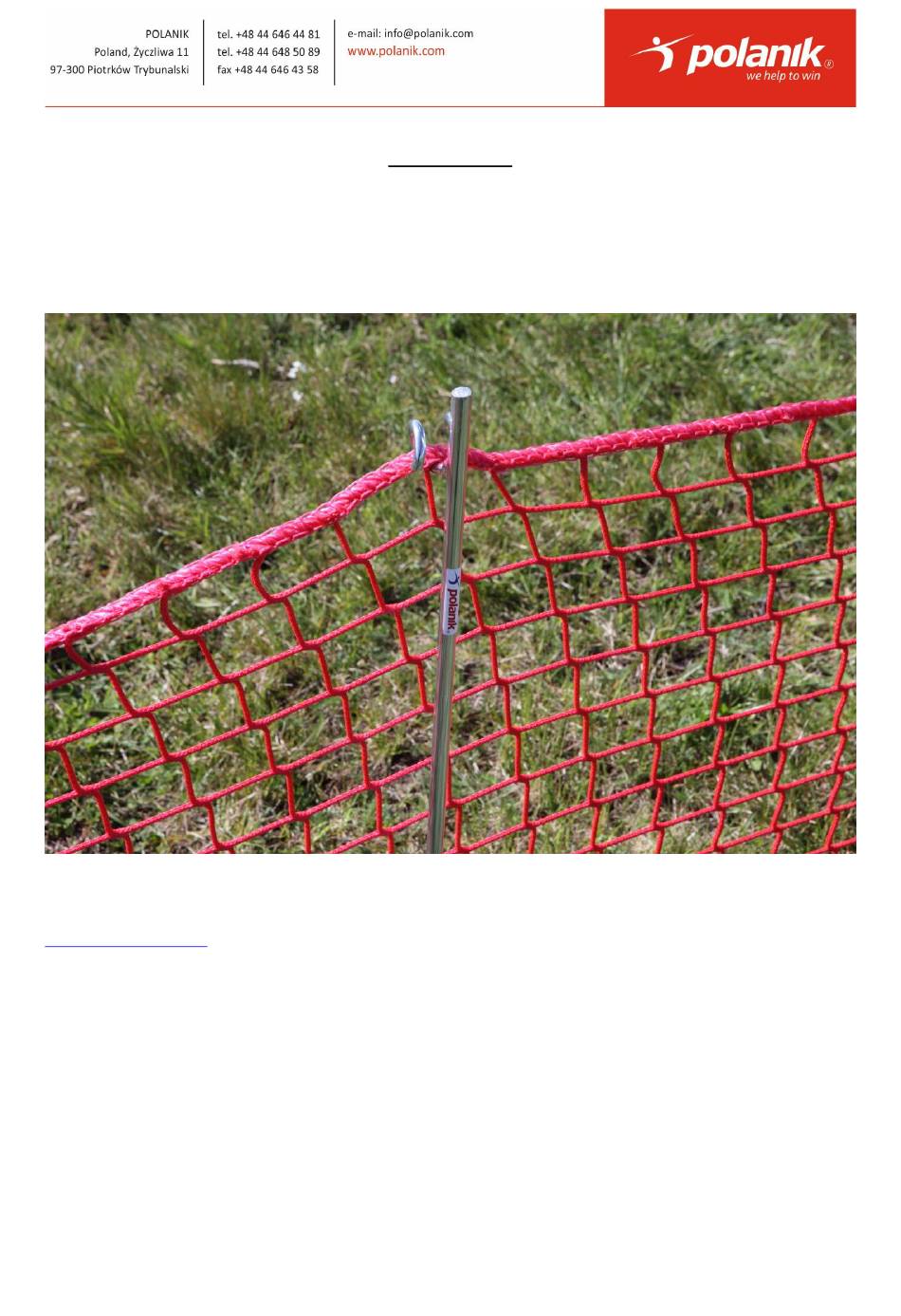

- Page 1 User manual Safety net to secure throwing sector SZS14-100 File: 2016-06-30 PRODUCT SUPPORT Paweł Ciechanowski p.ciechanowski@polanik.com...
- Page 2 Safe assembly and use Before you start to assemble and use the product please read this manual carefully. Polanik shall not be liable for any damages which are the result of the failure to follow this manual. Unauthorized copying of this manual, in whole or in part, is prohibited.
- Page 3 The net is designed to be used at the athletics training and competitions of throwing events. It is set up on grass ground of throwing sector at its boundaries. It is to stop rolling or skidding implements. II. Technical specification User manual SZS14-100...
- Page 4 Code SZS14-100 Type safety net to secure throwing sector Material PPHT Set up net height min. [m] Length [m] Mesh size [mm] 45 x 45 Rope dia. [mm] Resistance [kN] Melting point [ º C] Colour Net fastening 10 mm diameter steel galvanized net poles and 6 mm diameter ground pegs Set net weight [kg] III.
- Page 5 Item Part ‘s name Q-ty [pcs] Sketch/image Net pole Ground peg IV. Setting up User manual SZS14-100...
- Page 6 Fix the top perimeter rope and the bottom perimeter rope in the pigtail hooks of the net poles (item 2). Then fasten the bottom perimeter rope with the ground pegs (item 3). V. Operation and maintenance User manual SZS14-100...
- Page 7 VI. Packing and transport The set is wrapped with foil and put on a pallet. Gross weight 59,4 kg. VII. Product’s image SZS14-100 © 2014 Polanik The producer reserves the right to introduce without warning changes in product constructions and colours. VIII Declaration...
- Page 8 Zyczliwa 11, 97-300 Piotrkow Tryb. 3) Object of declaration: Description of goods Code Safety net to secure throwing sector SZS14-100 4) The object of declaration described above is in conformity with the requirements of the following documents: Articles Document title Issuer...
