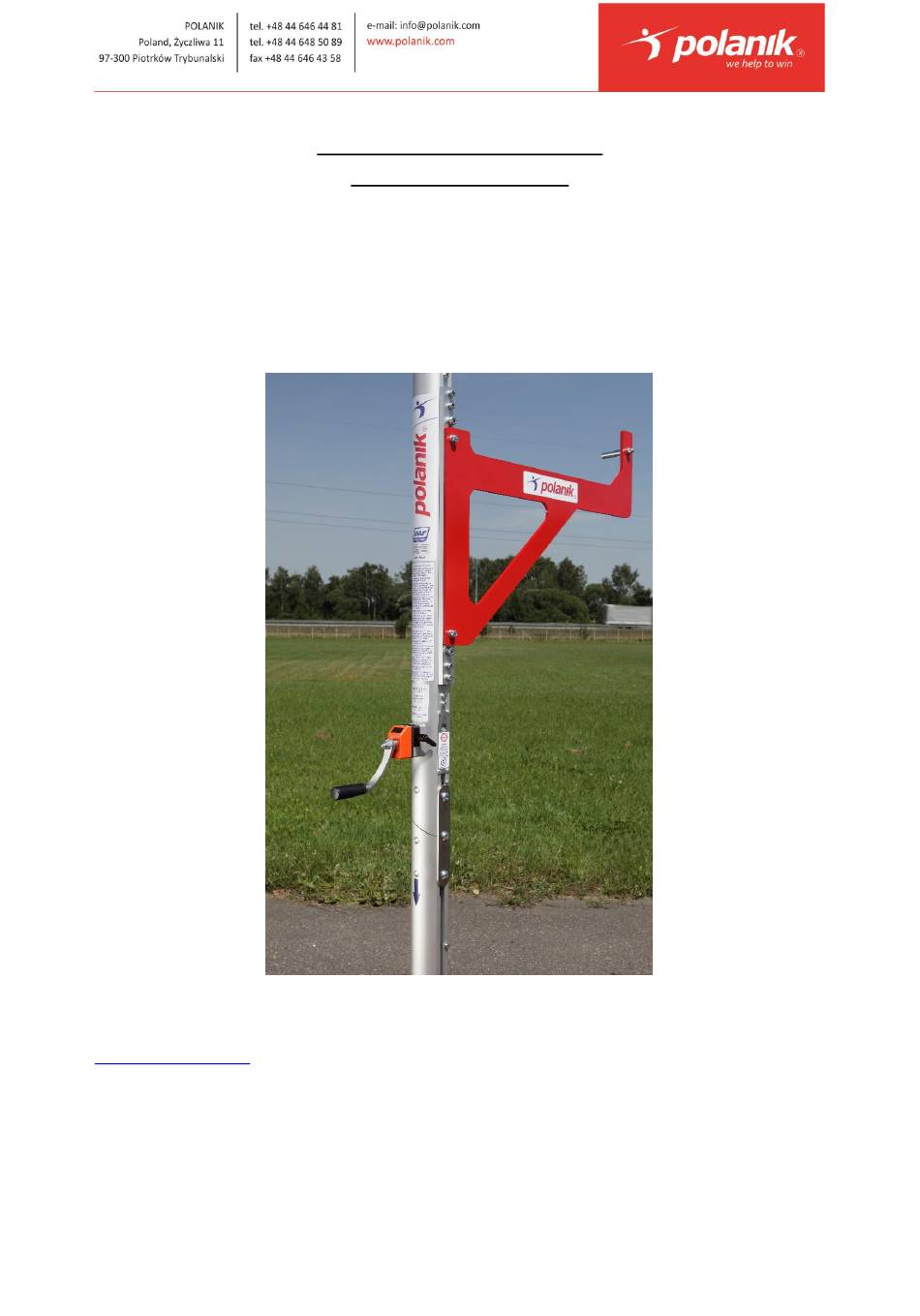

- Page 1 TECHNICAL SPECIFICATION ASSEMBLY MANUAL Pole vault foldable club stands with electronic readout Polanik Club STT17-63F File: 2017-12-06 PRODUCT SUPPORT Paweł Ciechanowski p.ciechanowski@polanik.com...
- Page 2 In no event shall Polanik be liable for any special, incidental, indirect or consequential damages in connection with the purchase or use of POLANIK products or costs over the original cost of the product. Unauthorized copying of this manual, in whole or in part, is prohibited.
- Page 3 I. Characteristics of the pole vault stand STT17-63F STT17-63F is a complete pole vault club foldable stand set. It is designed to conduct pole vault training and pole vault competitions. The key features of the stand are as follows: 1. Innovative construction: ...
- Page 4 II. Parts list (sets) Q-ty Part/set description Part/set sketch/Photo Pcs. Base Crossbar support Post Support to safely secure folded post Technical specification/Assembly manual STT17-63F 4/14...
- Page 5 III. Technical specification STT17-63F Stand type foldable, club, IAAF certified Crossbar support aluminium, powder painted Post special aluminium anodized profile, foldable and detachable galvanized steel, powder painted steel sheets, equipped with wheels, with Base 4 anchoring holes Folding mechanism slidable blocking bar, fastened with 3 screws...
- Page 6 STT17-63F [mm] Technical specification/Assembly manual STT17-63F 6/14...
- Page 7 Unpack the product: remove a foil from a pallet and using two 19 wrenches unscrew nuts on each pallet’s corner, remove a foil from posts. Read all marks carefully on the posts and the bases. Technical specification/Assembly manual STT17-63F 7/14...
- Page 8 Step Description Image Ease screws using a metric wrench no. 13. Put in the post. Screw down the screws using a wrench no. 13. Technical specification/Assembly manual STT17-63F 8/14...
- Page 9 The concrete layer is to be dry and non- overturn and result in cracked. For the installation of the anchors please see their producer’s serious accident or instruction. damages. Technical specification/Assembly manual STT17-63F 9/14...
- Page 10 “0” line on the scale installed on the stand base, and then turn the brake knob clockwise to block the brake. Blue arrow Brake knob Technical specification/Assembly manual STT17-63F 10/14...
- Page 11 If there is no garage available in the facility, the folded posts must be protected against rain with a waterproof cover (not included), but that is only acceptable during summer athletics season. When the season ends the stands must be dismounted and stored in a dry and roofed place. Technical specification/Assembly manual STT17-63F 11/14...
- Page 12 VII. Images Technical specification/Assembly manual STT17-63F 12/14...
- Page 13 STT17-63F © 2017 Polanik Technical specification/Assembly manual STT17-63F 13/14...
- Page 14 VIII. IAAF Certificate Technical specification/Assembly manual STT17-63F 14/14...
