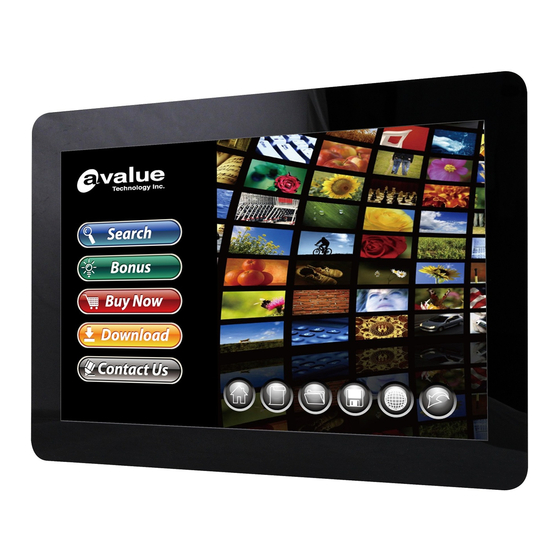

- Page 1 OFT-10WR2 10.1" Open Frame Tablet Quick Reference Guide Ed – 01 November 2022 Copyright Notice Copyright 2022 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E201710R2A1R...
- Page 2 (2) Use only shielded cables to connect I/O devices to this equipment. (3) Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2 OFT-10WR2 Quick Reference Guide...
- Page 3 RF exposure compliance, in order to comply with RF exposure limits established in the ANSI C95.1 standards, the distance between the antennas and the user should not be less than 20 cm. OFT-10WR2 Quick Reference Guide...
- Page 4 “CAUTION - Use a power cord that matches the voltage of the power outlet, which has been approved and complies with the safety standard of your particular country.” “WARNING – To avoid risk of electric shock, this equipment must only be connected to a supply mains with protective earth.” 4 OFT-10WR2 Quick Reference Guide...
-
Page 5: Table Of Contents
2.5.11 Sensor connector (JSENSE) ..................... 37 2.5.12 Debug connector (JDBG1) ......................37 2.5.13 Serial port 1 connector (JCOM1) ....................38 2.5.14 RTC Battery connector (JRTC) ....................38 2.5.15 LVDS connector (JLVDS) ......................39 2.5.16 MIPI Port (JMIPI) ........................40 OFT-10WR2 Quick Reference Guide... - Page 6 OFT-10WR2 2.5.17 Backlight connector (JLVBL) ..................... 41 2.5.18 7” Touch Panel connector (J7TP1) ................... 41 6 OFT-10WR2 Quick Reference Guide...
-
Page 7: Getting Started
Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x OFT-10WR2 Open Frame Tablet Power cord / Power adapter (Optional) ... -
Page 8: System Specifications
J7TP: 1 x 6P Touch USB for touch screen M.2 Socket 1 x M.2 Key B 3042 SATA SSD/LTE card either one Touch Key Button JTB1: 6 x 2P_2mm DC-IN(wafer) 4P x 1 (12 ~ 24V), pitch 2.0mm 8 OFT-10WR2 Quick Reference Guide... - Page 9 1 Test Acceleration : 2G 2 Test frequency : 5~500 Hz Sine Vibration test 3 Sweep：1 Oct/ per one minute. (logarithmic) (Non-operation) 4 Test Axis : X,Y and Z axis 5 Test time :30 min. each axis OFT-10WR2 Quick Reference Guide...
- Page 10 2. Due to the lack of IC material, the short-term specification only has 1 set of audio amplifier. After the material condition is stable, it will be changed back to the original specification with 2 sets of amplifiers. 10 OFT-10WR2 Quick Reference Guide...
-
Page 11: System Overview
1.4 System Overview 1.4.1 Side View 1.4.2 Bottom View Connectors Label Function Note Micro SD card slot Audio line-out connector HDMI HDMI connector 2 x USB 2.0 connector RJ-45 Ethernet Reset Reset button DCIN DC power-in connector OFT-10WR2 Quick Reference Guide 11... -
Page 12: System Dimensions
OFT-10WR2 1.5 System Dimensions 1.5.1 Front and Rear side (Unit: mm) 12 OFT-10WR2 Quick Reference Guide... -
Page 13: Installing Extend Brackets
Extend bracket-RL Screw Step1. Locate brackets on both sides, matching the holes on the monitor. Step2. Insert and fasten 12 screws on each side of the monitor to secure Mounting brackets. Note: Brackets sold separately. OFT-10WR2 Quick Reference Guide 13... -
Page 14: Flush Mounting Concept
OFT-10WR2 1.6 Flush Mounting Concept 14 OFT-10WR2 Quick Reference Guide... -
Page 15: Panel Mounting
Quick Reference Guide 1.7 Panel Mounting OFT-10WR2 Quick Reference Guide 15... - Page 16 OFT-10WR2 Step1. Insert and fasten 8 screws to secure Panel mount bracket. Item Part Name Quantity OFT-10WR2 Front sponge Panel mount bracket Screw 16 OFT-10WR2 Quick Reference Guide...
- Page 17 Quick Reference Guide (Outside of the wall) Step2. Insert OFT-10WR2 Open frame into the wall. Item Part Name Quantity Wall OFT-10WR2 Quick Reference Guide 17...
- Page 18 OFT-10WR2 (Inside of the wall) Step3. Fasten 4 screws to secure Panel mount kit and insert it into Panel mount Bracket. Item Part Name Quantity Panel mount kit Panel mount screw 18 OFT-10WR2 Quick Reference Guide...
- Page 19 Quick Reference Guide Step4. Insert and fasten 4 Panel mount screws to secure the module. Step5. Installation completed. OFT-10WR2 Quick Reference Guide 19...
-
Page 20: Wall Mounting Concept
OFT-10WR2 1.8 Wall Mounting Concept 20 OFT-10WR2 Quick Reference Guide... -
Page 21: Wall Mounting
Quick Reference Guide 1.9 Wall Mounting Size of the opening (Unit: mm) OFT-10WR2 Quick Reference Guide 21... - Page 22 OFT-10WR2 Screw hole location (Unit: mm) 22 OFT-10WR2 Quick Reference Guide...
- Page 23 Step1. Install the 10” Wall Box and fix it on the wall, and use suitable screws to lock the wall box (the screws can be purchased according to actual needs) Wall box Item Part Name Quantity OFT-10WR2 Quick Reference Guide 23...
- Page 24 Step2-1. Paste the Sponge around the OFT-10WR2. Step2-2. Fasten the 2 pcs wall mount kit of the OFT-10WR2 with 4 screws. Step2-3. Insert the 2 pcs Bracket L/R into the locked rectangular hole of the Wall mount kit with 2 screws.
- Page 25 Quick Reference Guide Step3. Fasten the Ground wire with 2 screws on the ground screw holes of OFT-10WR2 and Wall box. Ground wire Item Part Name Quantity OFT-10WR2 Quick Reference Guide 25...
- Page 26 OFT-10WR2 Step4. Wrap the Kensington lock (option) around the hole in the OFT-10WR2 and attach the lock to the keyhole in the Wall box. Kensington lock Item Part Name Quantity 26 OFT-10WR2 Quick Reference Guide...
- Page 27 Quick Reference Guide Step5. Store the Ground wire and Kensington lock in the Wall box and embed the OFT-10WR2 into the wall (Wall Box). OFT-10WR2 Quick Reference Guide 27...
-
Page 28: Hardware Configuration
OFT-10WR2 2. Hardware Configuration For advanced information, please refer to: 1- ACP-RK3568 included in this manual. Note: If you need more information, please visit our website: http://www.avalue.com.tw 28 OFT-10WR2 Quick Reference Guide... -
Page 29: Acp-Rk3568 Overviews
Quick Reference Guide 2.1 ACP-RK3568 Overviews OFT-10WR2 Quick Reference Guide 29... -
Page 30: Acp-Rk3568 Connector List
3 x 1 wafer, pitch 2.00 mm 40 x 1 FPC, pitch 0.50 mm JLVDS LVDS connector (Only for OFT-21WR2) 5 x 1 wafer, pitch 2.00 mm JLVBL Backlight connector (Only for OFT-21WR2) JSD1 Micro SD card slot 30 OFT-10WR2 Quick Reference Guide... -
Page 31: Ethernet Led Behavior
Warning: Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of Used Batteries According to the Instructions." Attention: Risque d'explosion si la batterie est remplacée par un type incorrect. Jetez les piles usagées selon les instructions. OFT-10WR2 Quick Reference Guide 31... -
Page 32: Acp-Rk3568 Jumpers & Connectors Settings
2.5 ACP-RK3568 Jumpers & Connectors settings 2.5.1 OTG ID select (JUSBID) HOST* Client Mode * Default 2.5.2 Touch button board connector (JTB1) Signal PIN PIN Signal LED_GREEN_R LED_ORANGE_R BU_BR-_3V BU7_3V PWRBTN_3V BU_BR+_3V VOL_UP_3V VOL_DOWN_3V LINUX_SW BU1_TV_3V PWR_JTB1 32 OFT-10WR2 Quick Reference Guide... -
Page 33: General Purpose I/O Connector (Jdio1)
PIN PIN Signal DIO_GP10 DIO_GP20 DIO_GP11 DIO_GP21 DIO_GP12 DIO_GP22 DIO_GP13 DIO_GP23 DIO_GP14 DIO_GP24 DIO_GP15 DIO_GP25 DIO_GP16 DIO_GP26 DIO_GP17 DIO_GP27 I2C_2_LV_SDA I2C_2_LV_SCL +V5S_DIO 2.5.4 RS-485 connector (JRS485) Signal PIN PIN Signal 485_422TX1+ 485_422TX1- RS232_RX4 RS232_TX4 +PWR_RS485 OFT-10WR2 Quick Reference Guide 33... -
Page 34: Camera Connector (Jcam1)
OFT-10WR2 2.5.5 Camera connector (JCAM1) Signal PIN PIN Signal USB2_HOST3_DP_R PDM_SDI1_DMIC_R USB2_HOST3_DM_R PDM_CLK1_DMIC_ +CAM_VCC +DMIC_VCC (5V level) (3V level) 2.5.6 A-MIC connector (JAMIC1) Signal AMIC_IN MIC_JD# 34 OFT-10WR2 Quick Reference Guide... -
Page 35: Dc Power-In Connector (Dcin2)
Quick Reference Guide 2.5.7 DC Power-in connector (DCIN2) Signal PIN PIN Signal +12V_24ADPIN +12V_24ADPIN 2.5.8 Speaker connector (JSPK1) Signal SPK_L+ SPK_L- SPK_R+ SPK_R- OFT-10WR2 Quick Reference Guide 35... -
Page 36: 10" Touch Panel Connector (J10Tp)
OFT-10WR2 2.5.9 10” Touch Panel connector (J10TP) Signal USB2_10TP_DP USB2_10TP_DM +USB_5V_TS 2.5.10 21” Touch Panel connector (J21TP1) Signal +USB_5V_TS USB2_21TP_DM_R USB2_21TP_DP_R 36 OFT-10WR2 Quick Reference Guide... -
Page 37: Sensor Connector (Jsense)
Quick Reference Guide 2.5.11 Sensor connector (JSENSE) Signal PIN PIN Signal SENSE0_IRQ_R SENSE2_IRQ_R I2C3_SDA_3.3V_CONN I2C5_SDA_3.3V_CONN I2C3_SCL_3.3V_CONN I2C5_SCL_3.3V_CONN +3VS_SEN_CONN +3VS_SEN_CONN 2.5.12 Debug connector (JDBG1) Signal DEBUG_TX2_CON DEBUG_RX2_CON OFT-10WR2 Quick Reference Guide 37... -
Page 38: Serial Port 1 Connector (Jcom1)
OFT-10WR2 2.5.13 Serial port 1 connector (JCOM1) Signal RS232_RX3 RS232_TX3 2.5.14 RTC Battery connector (JRTC) Signal +V_BAT 38 OFT-10WR2 Quick Reference Guide... -
Page 39: Lvds Connector (Jlvds)
2.5.15 LVDS connector (JLVDS) Signal PIN PIN Signal +V3.3S_LVDS +5V_LVDS +V3.3S_LVDS +5V_LVDS TXO1+ TXO0+ TXO1- TXO0- TXO3+ TXO2+ TXO3- TXO2- TXE1+ TXE0+ TXE1- TXE0- TXE3+ TXE2+ TXE3- TXE2- TXEC+ TXOC+ TXEC- TXOC- +11V2S_BL 39 +11V2S_BL OFT-10WR2 Quick Reference Guide 39... -
Page 40: Mipi Port (Jmipi)
OFT-10WR2 2.5.16 MIPI Port (JMIPI) Signal MDSI_A_CLKP_R MDSI_A_DN2_R MDSI_A_DP2_R MDSI_A_DN3_R MDSI_A_DP3_R Signal +3VS_DSI +3VS_DSI +3VS_DSI DSI_RESET#_3V3 PANEL_LEDK MDSI_A_DN0_R MDSI_A_DP0_R PANEL_LEDK PANEL_LEDK MDSI_A_DN1_R MDSI_A_DP1_R MDSI_A_CLKN_R PANEL_LEDA PANEL_LEDA PANEL_LEDA 40 OFT-10WR2 Quick Reference Guide... - Page 41 Quick Reference Guide 2.5.17 Backlight connector (JLVBL) Signal +11V2S_21BL +11V2S_21BL EN_BL PWM_BL 2.5.18 7” Touch Panel connector (J7TP1) Signal +USB_5V_TS USB2_7TP_DM USB2_7TP_DP OFT-10WR2 Quick Reference Guide 41...
