9-10. VARIABLE CUTTING ANGLE SELECTION
Please proceed as follows to obtain
desired cutting angle. The swivel range is
from 0° to 60°clockwise. Before swinging
the base, make sure there is nothing in
the way, or any interference.

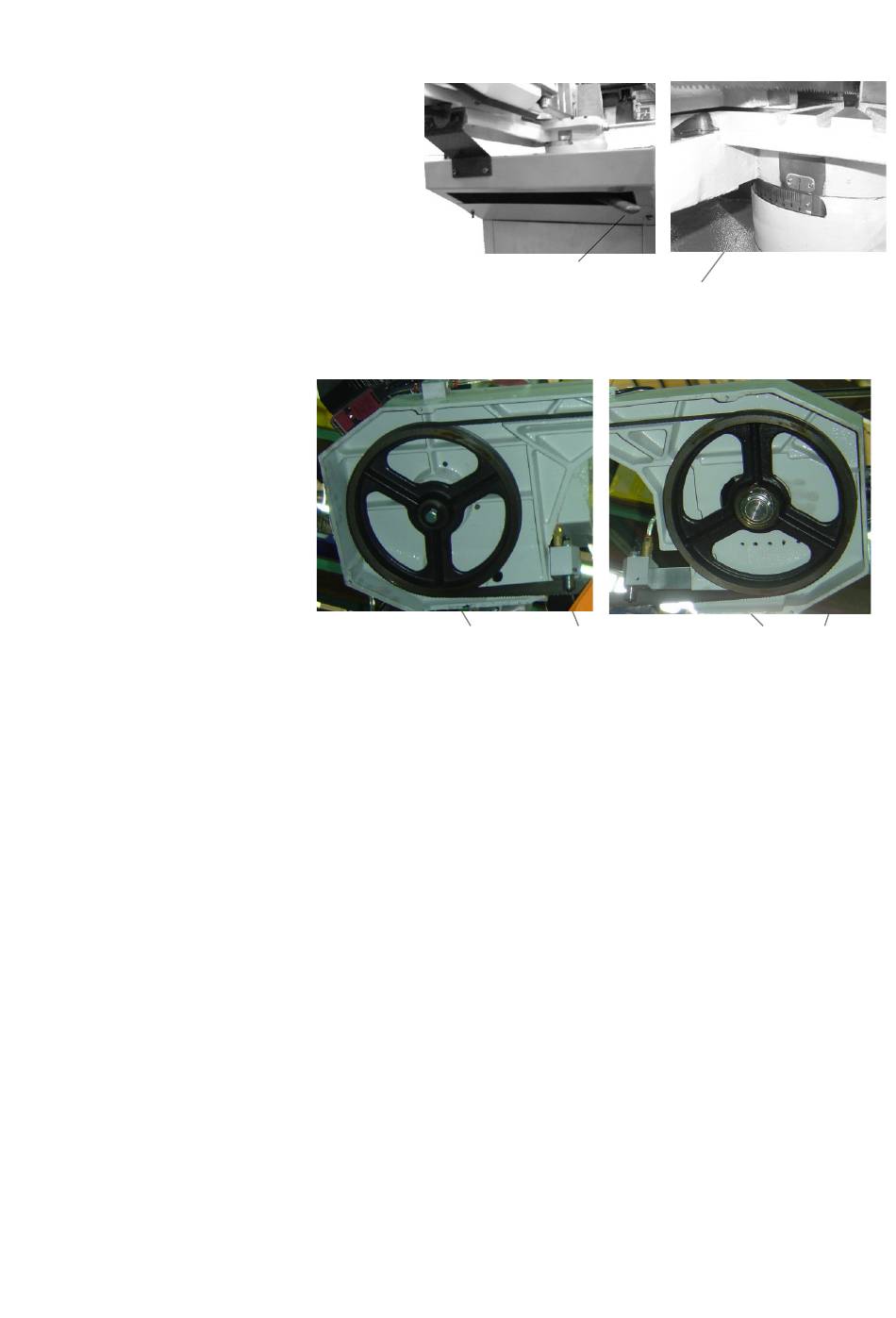

1. Pull out the bar (A) (fig. 6) swing and
hold the bar.
2. Push to turn the swivel base to desired
angle. Refer to scale on (B) for degree.
3. Lock the bar (A), then start the cutting.
9-11. REMOVING AND INSTALLING THE BLADE
When it is necessary to replace the blade, proceed as follows:
1. Raise the saw frame about
6" and close the feed on/off
knob by turning it clockwise
as far as it will go (fig 8).
2. Move the blade guide arm
to the right.(Fig.9).
3. Disconnect the machine
from the power source.
Loosen cover screw,
remove cover (A), open the
cover (B), remove cover
(C) , then clean the chips and dirt inside the machine.
4. Release blade tension (F) (fig 9)
by turning the blade tension hand-
wheel counterclockwise.
5. Remove the blade from both wheels and out of each blade guide. But remove side (B) saw blade.
When totally released, then remove the side (A).
6. Make sure the teeth of the new blade are pointing in the right direction. IF necessary, turn the
blade inside out.
7. Place the new blade on the wheels. In the blade guides and adjust blade tension and blade guides.
10.MAINTAINING
That's easier to keep machine in good condition or best performance by means of maintaining it at any
time than remedy it after it is out of order.
(1) Daily Maintenance (by operator)
(a) Fill the lubricant before starting machine everyday.
(b) If the temperature of spindle caused over-heating or strange noise, stop machine immediately
to cheek it for keeping accurate performance.
(c) Keep work area clean; release vise, cutter, work-piece from table; switch off power source;
take chip or dust away from machine and follow instructions lubrication or coating rust proof oil
before leaving.
(2) Weekly Maintenance
(a) Clean and coat the cross leading screw with oil.
(b) Check to see if sliding surface and turning parts lack of lubricant. If tile lubricant is insufficient,
fill it.
(3) Monthly Maintenance
(a) Check if the fixed portion has been loose.
(b) Lubricate bearing worm, and worm shaft to avoid the wearing.
(4) Yearly Maintenance
(a) Adjust table to horizontal position for maintenance of accuracy.
(b) Check electric cord, plugs, switch, at least once a year to avoid loosening or wearing.
Fig.6 A
Fig.8 A
16
B
Fig.7
B
Fig.9 C
F
