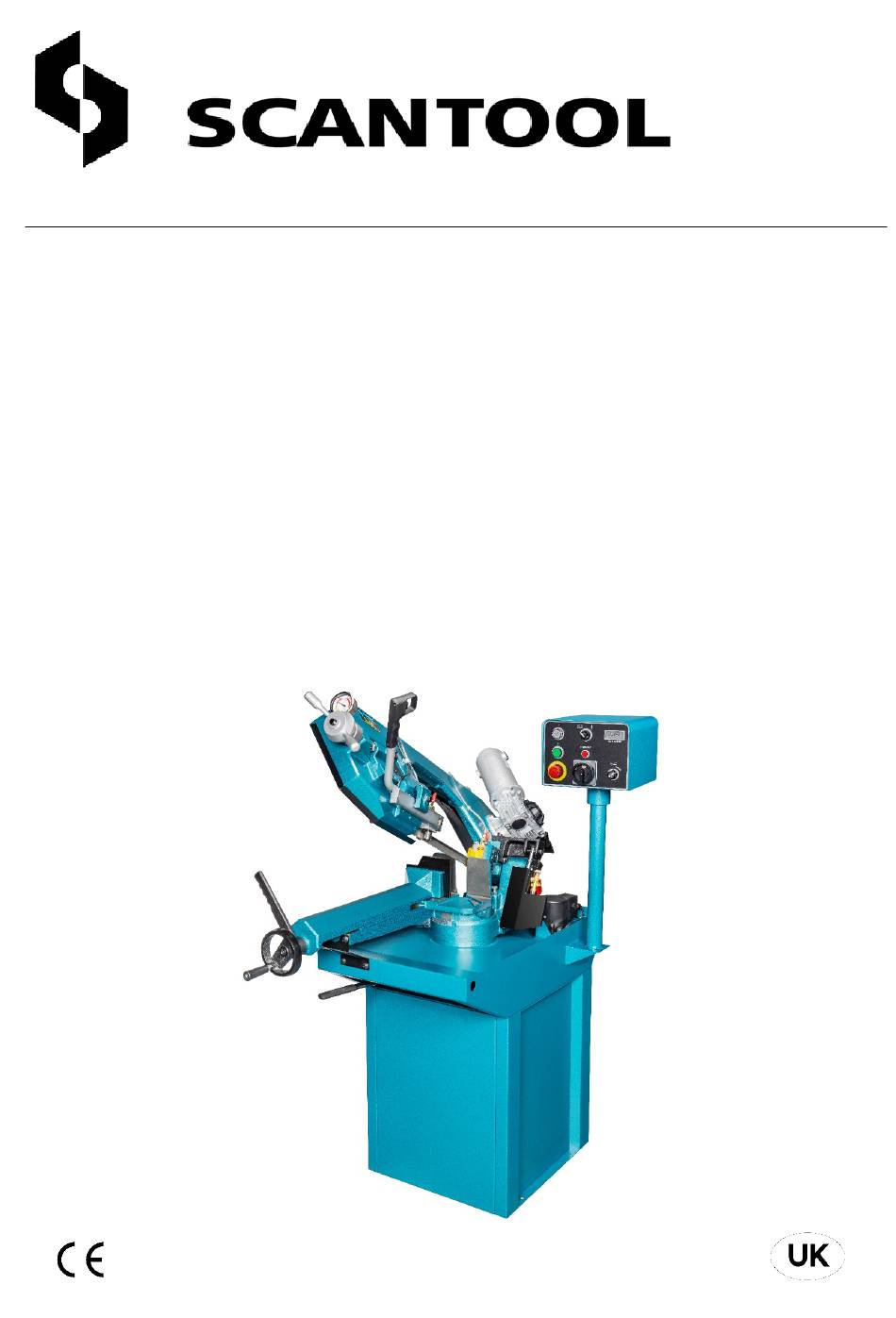

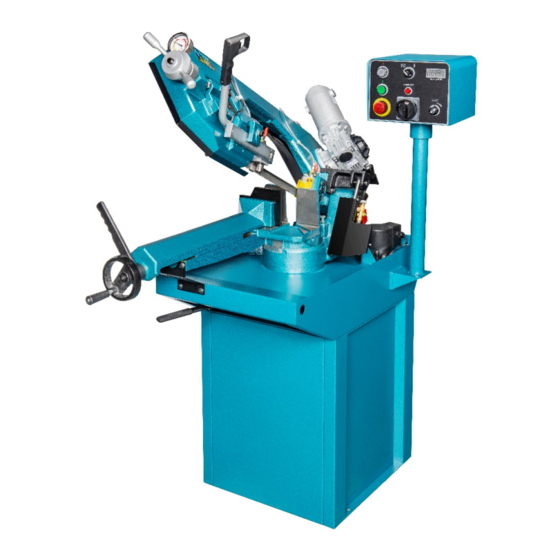

- Page 1 Industrivej 3-9 DK-9460 Brovst Denmark Tel.: +45 98 23 60 88 Fax: +45 98 23 61 44 07.05.21 Manual SCANTOOL Metal cutting bandsaw 280 GSHE...
- Page 3 SCANTOOL 280 GSHE is manufactured in accordance with the provisions of the COUNCIL DIRECTIVE of 17. May 2006 (2006/42/EC) – The Machinery Directive (order no. 561 of 25 June 1994 with subsequent amendments)
-
Page 5: Table Of Contents
Table Of Contents Page No 1 Overall Aspect ……………………………………………………….…………….… 2 Safety Rules For All Tools ……………………………………………………….…. 3 Specification ……………………………………………………………….………… 4 Features …………………………………………………………………….……..…. 5 Transportation & Install …………………………………………………….……… 6 Minimum Room Space For Machine Operation ………………………….………. 7 Make Proper Tooth Selection ……………………………………………….……..8 BI-Metal Speeds And Feeds …………………………………………………...……. -
Page 6: Overall Aspect
1.Overall Aspect handle The blade tension The start Move Vise Saw arm The vise fixed of handle Panel Control Coolant pump The move vise handle Vise base Angle Sale Base The swivel vise base of handle... -
Page 9: Specification
WARNING: FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS PERSONAL INJURY As with all machinery there are certain hazards involved with operation and use of the machine. Using the machine with respect and caution will considerably lessen the possibility of personal injury. However, if normal safety precautions are overlooked or ignored, personal injury to the operator may result. -
Page 10: Features
4.FEATURES: 1. This machine is useful for cutting normal steel, steel pipe, and provides cutting angle at + 0°and - 60°by the swivel head. 2. A tooth selection chart was provided on the machine for cutting reference. 3. Variable speed control gives convenient selection of speeds. (This machine comes with a standard 2-speed motor. -
Page 11: Minimum Room Space For Machine Operation
5-3. Installation: (1) Always Keep proper footing & balance while moving this 208kgs machine. And only use heavy-duty fiber belt to lift the machine as per Fig. (C). (2) Hang the machine up, away from the floor, take away the 4 pads and assemble them on the auxiliary stand. -
Page 12: Make Proper Tooth Selection
7. MAKE PROPER TOOTH SELECTION applications. For exact sawing For maximum cutting efficiency and lowest parameters' consult your saw blade cost per cut, it is important to select the blade supplier. with the right number of teeth per inch (TPI) for the material being cut. -
Page 13: Use Of Main Machine Parts
Alloy Steel 4340,E4340,8630 8640 Carbon 1117 E9310 Steel 1137 Tool Steel A-6 1141,1144 1141 HI A-10 STRESS 1030 H-11,H-12,H-13 Carbon Steel 1008,1015,1020, Stainless 1025 Steel 1035 1018,1021,1022 410,502 1026,1513 A36(SHAPES),104 440C 1042,1541 304,324 1044,1045 304L 1060 1095 316,316L Ni-Cr-Mo 8615,8620,8622 TELLTALE CHIPS Chips are the best indicators of correct feed force. - Page 14 1. The motor will be stopped when the Frame touch the Limit switch (K). 2.The coolant system will run and stop with blade operation. 3. Start the motor by turning the start button (K), Push the button (L) to start blade saw. Unhand button (B) stop The motor.
- Page 15 9-4. ADJUSTING UPWARD AND DOWNWARD TRAVEL OF SAW ARM The downward travel of the saw arm should be adjusted so that when the saw arm is in the extreme downward position, the teeth of the blade will not touch the table surface. The stop screw (N) is used to adjust the distance between blade and table surface.
- Page 16 9-7. ADJUSTING BLADE GUIDE ROLLER BEARINGS, CARBIDE BLADE GUIDES AND BACK-UP BEARINGS AND CLEARING THE CUTTING CHIP Before making the following adjustments, make sure the blade is tracking and tensioned properly: 1.The back of the blade (A) (fig3) should ride against the back-up block (B).
-
Page 17: Maintaining
9-10. VARIABLE CUTTING ANGLE SELECTION Please proceed as follows to obtain desired cutting angle. The swivel range is from 0° to 60°clockwise. Before swinging the base, make sure there is nothing in the way, or any interference. 1. Pull out the bar (A) (fig. 6) swing and hold the bar. -
Page 18: Trouble Shooting
11. TROUBLE SHOOTING Symptom Possible Cause(s) Corrective Action Machine can not be started 1. Power is not plugged; the power light 1. Check the motor specification; on control panel is not on. connect the power with correct 2. Motor can not be started; power was power supply. - Page 19 7. Cut is binding blade 7. Decrease reed anti speed Bad Cuts (Crooked) 1. Feed pressure too great. 1. Reduce pressure by increasing spring tension on side of saw 2. Adjust guide bearing, the 2. Guide bearings not adjusted clearance can not greater than properly 0.001.
- Page 30 12.Guarantee 12.1 Guarantee If within 2 year of purchase this machine supplied by SCANTOOL A/S becomes defective due to faulty materials or workmanship we guarantee to repair or replace the machine or defective part or parts free of charge provided...
