Summary of Contents for Scantool 85VB

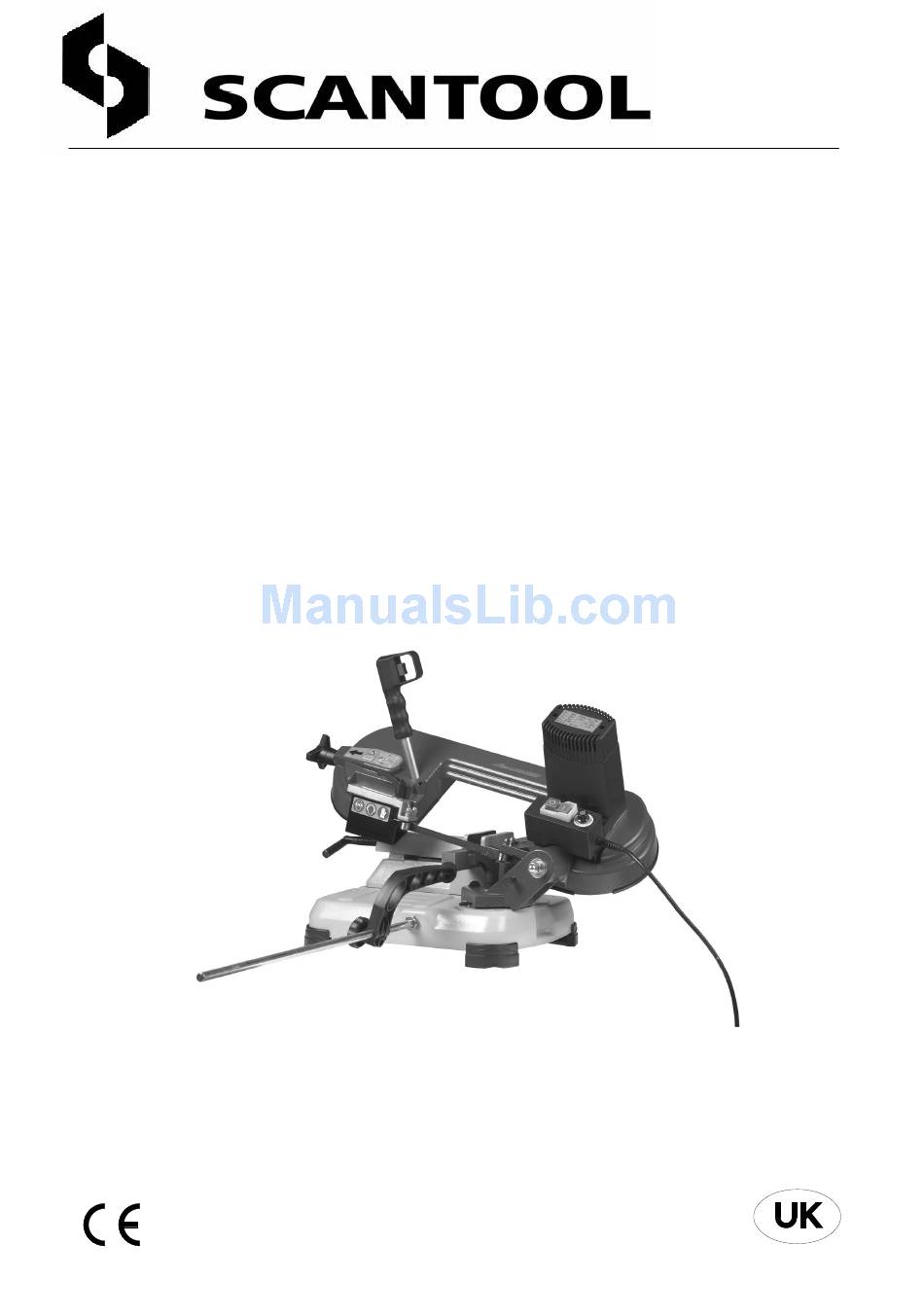

  • Page 1 Industrivej 3-9 DK-9460 Brovst Tlf.: +45 98 23 60 88 Fax: +45 98 23 61 44 Manual SCANTOOL 85VB Metal cutting bandsaw...
  • Page 2: Ec Declaration Of Conformity

    +45 98 23 60 88 Fax.: +45 98 23 61 44 hereby declares that SCANTOOL 85VB are manufactured in accordance with the provisions of the COUNCIL DIRECTIVE of 17. May 2006(2006/46/EC) Also on accordance with: · The council directive of 19 February 1973 (73/23/EEC) – The Low Voltage Directive –...
  • Page 3: Table Of Contents

    Table of Contents OPERATION AFETY RULES FOR STATIONARY POWER TOOLS ARING INTRODUCTION TO USE SYMBOLS PLACED IN CORRESPONDANCE WITH USAGE POINTS RECOMMENED AND NOT RECOMMENDED USAGE STANDARD SAFEY PROCEDURS SAFETY PROCEDURS FOR FURTHER RISK NOISE CONDITIONS INFORMATION ABOUT THE ELECTROMAGNE-TIC COMPATIB LITY DESCRIPTION OF THE MACHINE (F INSTALLAZONE...
  • Page 4 REGULAR MAINTENANCE ASSISTENCE DISFOSAL OF THE MACHINE TROUBLESHOOTING DIAGRAM 10 PARTS LIST FOR SCANTOOL 85 VB...
  • Page 5: Operation

    1 Operation 1.1 Safety rules for stationary power tools. Follow them to achieve best results and full benefit from your new machine The very good craftsman respects the tools with which he works. He knows they represent years of constantly improved design. He also knows that they are dangerous if misused.
  • Page 6: Waring

    9. Don’t force tool. It will do the job better and be safer at the rate for which it was designed. 10. Use right tool. Don’t force tool or attachment to do a job it was not designed for. 11. Wear proper apparel. Wear no loose clothing, gloves, neckties, rings, bracelets, or other jewelry which may get caught in moving...
  • Page 7 1.2 WARNING! Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reprodrctive harm. Some examples of these chemical are: · Lead from lead-based paints. ·...
  • Page 9: Introduction To Use

    2 INTRODUCTION TO USE Before starting work with your sawing machine, carefully read this instructions manual so that you are familiar with the machine and its uses and where it should not be used. Keep this manual in a safe place. It is an integral part of the machine and should be used for reference in operating the machine correctly and in the proper safety conditions.
  • Page 10: Standard Safey Procedurs

    2.3 STANDARD SAFEY PROCEDURS -Do not use the machine in very damp places or in the presence of inflammable liquids or gases. -Do not use it in the open air when general weather and environ-mental conditions are unfavourable (eg. Explosive atmospheres, during a storm or rain). -Wear suitable clothes, without wide sleeves or articles such as scarves.
  • Page 11: Description Of The Machine (Fig.1)

    2.7 DESCRIPTION OF THE MACHINE (Fig.1) The belt sawing machine consists of two basic parts: the machine body (5) complete with motor and drive (7) which is integrated Into lower part. consisting of the clamp (11) and the base (13), by means of the swivel support (9). Here is a list of the main parts with the number indicating it in the drawing.
  • Page 12: Position/Work Station (Fig.3)

    3.4 POSITION/WORK STATION (Fig.3) Place the machine on a sufficiently flat workbench so that the machine has the better possible stability. In respect of ergonomic criteria during cutting operations, the workbench must be positioned at such a height that the clamp level is between 90 and 95 cm from the ground (see fig.3) Make sure that the machine is placed in a working area with suitable environmental conditions and lighting.
  • Page 13: Cutting Angle (Fig.6)

    4.3 Cutting angle (Fig.6) The band saw can cut at an angle varying from 0 to 45 degrees : it is sufficient to slacken the handle I and turn the swiwel support J towards the respective limit stops H and K. For all intermediate angles, turn the swiwel support J until the mark M on the support matches the corresponding position on the plate.
  • Page 14: Use

    5 USE 5.1 RUNING IN THE BLADE if the correct running in procedure is not performed, the blade's cutting precision may be irreparably compromised. To obtain the best performance, the bi-metal blades fitted on your sawing machine must be run in for a short period. For this reason the first two or three cuts should be done where possible on a solid piece D.40-50 mm, using a very slight pressure on the blade, and gradually increasing pressure in subsequent cuts.
  • Page 15: Replacing The Blade (Fig.9)

    5.3 replacing the blade (Fig.9) When you perform the operation, always wear protective gloves to avoid contact with the teeth of the blade. -check that the main switch D is at position O; -slacken the handle Q and slide the blade guide P as far as it will go, following the direction on the arrow (Fig.8);...
  • Page 16: Cutting Capacity

    5.4 CUTTING CAPACITY The table below specifies the cutting capacity at 0 and 45 degrees which may be obtained in normal conditions of use described in this manual and without placing any other object between the jaws of the clamp. Clamp.
  • Page 17: Correct Positioning Of The Piece In The Clamp

    5.5 correct positioning of the piece in the clamp The pieces to be cut should be fitted directly between the jaws without adding other objects. Never hold the pieces to be cut in your hand. When the pieces to be cut are profiled sections, flat pieces or special shapes, refer to the examples shown in the figures.
  • Page 18: Accessories

    6 ACCESSORIES 6.1 CHOISE OF BLADE Your sawing machine is equipped with a bi-metal blade measuring 1330 * 13 * 0.65 mm with variable toothing 8/12 teeth per inch. for use in the majority of cuts possible with this machine. For special requirements (see cutting table point 4.6), for example, for cutting large solid sections or profiled sections or corner pieces of small thickness, there are also blades avail-able with 6, 10, 14 or 18teeth per inch.
  • Page 19: Troubleshooting

    8 TROUBLESHOOTING PROBLEMS CAUSES SOLUTIONS SUGGESTED the motor does not work. Defective motor. power cable Specialized personnel should check or plug. the machine ; do not attempt to repair the motor by yourself. Blown electric panel fuses Check fuse integrity and replace, if necessary Check for voltage in the No voltage in the mains mains system.
  • Page 20: Diagram

    9 DIAGRAM Circuit Diagram (2-Speeds)
  • Page 21 Circuit Diagram (Variable Speeds...
  • Page 24: Parts List For Scantool 85 Vb

    10 PARTS LIST FOR SCANTOOL 85 VB CODE N0 PART N0 DESCRIPTION SPECIFICATION QTY NOTE 111002 Body Frame HD901 HW104 Spring Washer 111018 Guide Bracket 111009 Washer CA607-2RS Bearing 111016 Eccentric Shaft 111020 Knob 111025 Adjustable Bracket (Front) CA624ZZ Bearing 111096 Ø4x19.8L...
  • Page 25 CODE NO PART NO DESCRIPTION SPECIFITION NOTE HS816 Crose Round Head Screw Ø4x15L 111088A Separator 111088 111087A Bracket H5229 Hex. Socket Head Screw M6x15L CAHKO6O9 Bearing HK 609 111032 Washer 111005 Gear-A 111044 Bushing 111006 Gear-B 111033 Washer CAHKO81O Bearing 111095 Corrugated Washer Ø21.5XØ14.2X0.3t 1...
  • Page 26 CODE NO PART NO DESCRIPTION SPECIFICATION QTY NOTE 111023 Spring 111021 Washer 111008 Shaft Bushing 111003 Swivel Arm HW006 Washer HD902 E195312F Power cable 111091 Cable Setting Nut H5817 Cross Round Head Screw Ø4X20L ET2515 Wave Filter 111093B Electrical Box Only ET1535 Terminal Base 111093A...
