Summary of Contents for Scantool 320 GSHE

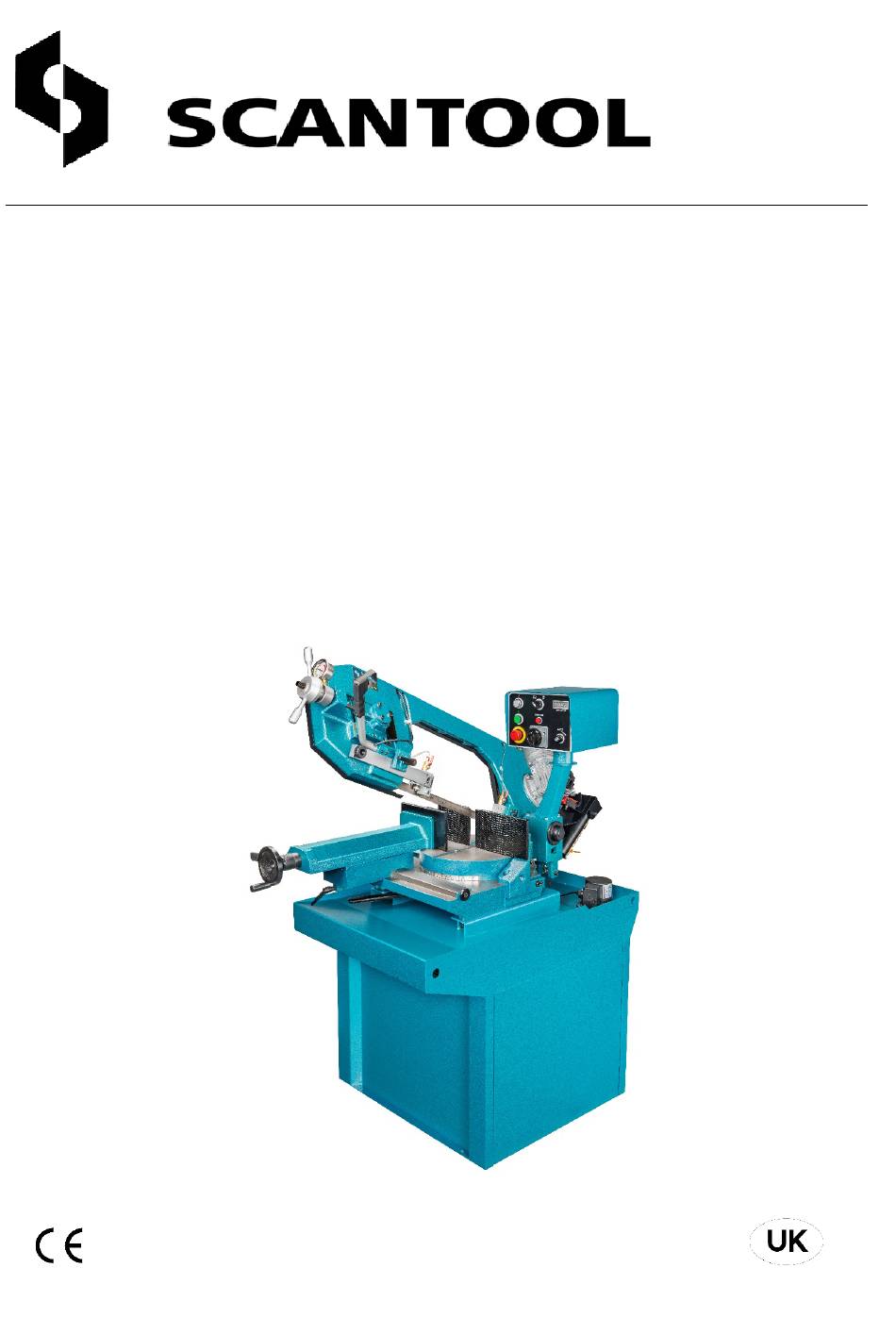

- Page 1 Industrivej 3-9 DK-9460 Brovst Denmark Tel.: +45 98 23 60 88 Fax: +45 98 23 61 44 10.05.21 Manual SCANTOOL Metal cutting bandsaw 320 GSHE...
- Page 3 SCANTOOL 320 GSHE is manufactured in accordance with the provisions of the COUNCIL DIRECTIVE of 17. May 2006 (2006/42/EC) – The Machinery Directive (order no. 561 of 25 June 1994 with subsequent amendments)
-
Page 5: Table Of Contents
Table Of Contents Page No 1 Overall Aspect ………………………………………………………………….. 2 2 Safety Rules For All Tools ……………………………………………………. 3~4 3 Specification …………………………………………………………………….. 5 4 Features ……………………………………………………………………..…..6 5 Transportation & Install ……………………………………………………….. 6~7 6 Minimum Room Space For Machine Operation …………………………… 7 7 Make Proper Tooth Selection …………………………………………………. -
Page 6: Overall Aspect

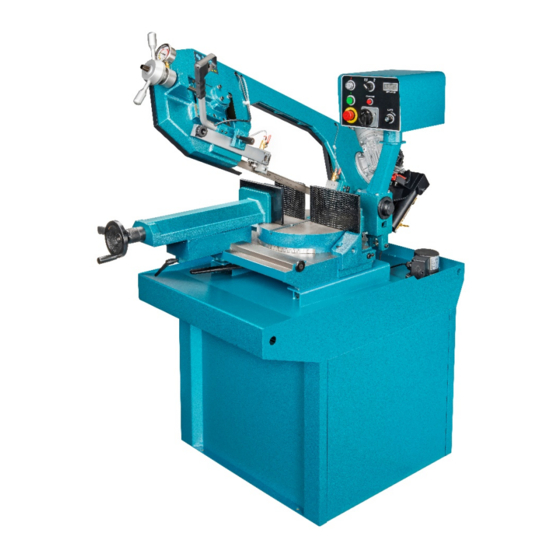

Overall Aspect The blade tension handle Saw arm Control Panel Move Vise Motor The move vise handle Vise base The swivel vise base of handle Base Angle Sale... -
Page 9: Specification
WARNING: FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS PERSONAL INJURY As with all machinery there are certain hazards involved with operation and use of the machine. Using the machine with respect and caution will considerably lessen the possibility of personal injury. However, if normal safety precautions are overlooked or ignored, personal injury to the operator may result. -
Page 10: Features
4.FEARTURES: 1. This machine is useful for cutting normal steel, steel pipe, and provides cutting angle at + 60°and +45°by the swivel head. 2. A tooth selection chart was provided on the machine for cutting reference. 3. Variable speed control gives convenient selection of speeds. (This machine comes with a standard 2-speed motor. -
Page 11: Minimum Room Space For Machine Operation
5-3.Installation: (1) Always Keep proper footing & balance while moving this 253kgs machine. And only use heavy-duty fiber belt to lift the machine as per Fig. (C) (2) Hang the machine up, away from the floor, take away the 4 pads and assemble them on the auxiliary stand. -
Page 12: Make Proper Tooth Selection
7. MAKE PROPER TOOTH SELECTION NOTE: The band speed and cutting rate For maximum cutting efficiency and lowest recommendations presented on this cost per cut, it is important to select the blade with chart are approximations and are to be the right number of teeth per inch (TPI) for the used as a starting point for most material being cut. -
Page 13: Use Of Main Machine Parts
1095 101,102,110,122,17 Ni-Cr-Mo 8615,8620,8622 Alloy Steel 1751,182,220,51 4340,E4340,8630 625,706,715,934 8640 E9310 Tool Steel A-6 Carbon 1117 Steel A-10 1137 1141,1144 H-11,H-12,H-13 1141 HI STRESS Stainless 1030 Steel Carbon 1008,1015,1020,10 Steel 410,502 1035 1018,1021,1022 1026,1513 440C 304,324 A36(SHAPES),104 304L 1042,1541 1044,1045 316,316L 1060 TELLTALE CHIPS... - Page 14 9-2. STARTING AND STOPPING MACHINE ( with handle switch) 1. The motor will be stopped when the Frame touch the Limit switch (K). 2.The coolant system will run and stop with blade operation. 3. Start the motor by turning the start button (K), Push the button (L) to start blade saw. Unhand button (B) stop The motor.
- Page 15 9-4.ADJUSTING UPWARD AND DOWNWARD TRAVEL OF SAW ARM The downward travel of the saw arm should be adjusted so that when the saw arm is in the extreme downward position, the teeth of the blade will not touch the table surface. The stop screw (N) is used to adjust the distance between blade and table surface.
- Page 16 9-7.ADJUSTING BLADE GUIDE ROLLER BEARINGS, CARBIDE BLADE GUIDES AND BACK-UP BEARINGS AND CLEARING THE CUTTING CHIP Before making the following adjustments, make sure the blade is tracking and tensioned properly: 1.The back of the blade (A) (fig3) should ride against the back-up block (B).
- Page 17 9-10.VARIABLE CUTTING ANGLE SELECTION Please proceed as follows to obtain desired cutting angle. The swivel range is from 0° to 60°clockwise. Before swinging the base, make sure there is nothing in the way, or any interference. 1. Pull out the bar (A) (fig. 6) swing and hold the bar.
-
Page 18: Maintaining
10.MAINTAINING That's easier to keep machine in good condition or best performance by means of maintaining it at any time than remedy it after it is out of order. (1) Daily Maintenance (by operator) (a) Fill the lubricant before starting machine everyday. (b) If the temperature of spindle caused over-heating or strange noise, stop machine immediately to cheek it for keeping accurate performance. - Page 19 6.Blade twist 6. Replace with a new blade, and adjust blade tension 7. Insufficient blade 7. Tighten blade tension adjustable knob 8. Blade slide 8. Tighten blade tension Unusual Wear on 1. Blade guides worn. 1. Replace. Side/Back of Blade 2.
- Page 30 12.1 Guarantee If within 2 year of purchase this machine supplied by SCANTOOL A/S becomes defective due to faulty materials or workmanship we guarantee to repair or replace the machine or defective part or parts free of charge provided that: The product is returned complete to one of our Service Branches or Official Service Agents.
