Harrod FBL-683 Quick Start Manual

Code:
FBL-683, FBL-690, FBL-695
7.32x2.44m 3G Euro Portagoal, 6.4x2.13m 3G Euro Portagoal,
Product:
4.88x2.13m Euro Portagoal
FBL-683: 7.32x2.44m 3G Euro Portagoal
1. 2 x 7.32m 3G Stadium Crossbar
2. 2 x 2440mm 3G Portagoal Upright
2 x Portagoal Brace - Pair
3. 2 x Portagoal Brace 1487mm
2 x 2270mm Portagoal Sidebar - Pair
4. 2 x 2270mm Euro P/Goal Sidebar
1 x Senior WTD P/Goal Ali Net Bar
5. 2 x Senior WTD P/Goal Ali Net Bar
6. 4 x Euro Portagoal Net Support Bracket
7. 2 x 7292mm Euro Portagoal Backbar
2 x Euro Portagoal Net Supports
8. 2 x Euro P/Goal Net Support - Black
6.4x2.13m 3G Euro Portagoal
FBL-690:
1. 2 x 6.4m 3G Crossbar
2. 2 x 2.13m 3G Portagoal Upright
2 x Portagoal Brace - Pair
3. 2 x Portagoal Brace 1487mm
2 x 2.13m Portagoal Sidebar - Pair
4. 2 x 2.13m Weighted P/Goal Sidebar
1 x Junior WTD P/Goal Ali Net Bar
5. 2 x Junior WTD P/Goal Ali Net Bar
6. 4 x Euro Portagoal Net Support Bracket
7. 2 x 6372mm Euro Portagoal Backbar
2 x Euro Portagoal Net Supports
8. 2 x Euro P/Goal Net Support - Black
8
3
7
Optional Wheels:
FBL-560 Hi-Raise Wheels for Euro Portagoal
If optional wheel have been purchased, please have
the bolts ready for use during assembly of the goal.
Pack Contents:
(FEP360)
(FEP284)
(contains)
(FEP674)
(PEQ335)
(contains)
(FEP631)
(PEP631)
(contains)
(FEQ805)
(PEQ710)
(FEP632)
(FEP634)
(contains)
(FEP639)
(PEP639)
(FEP361)
(FEP286)
(contains)
(FEP674)
(PEQ335)
(contains)
(FEP637)
(PEP637)
(contains)
(FEQ806)
(PEQ711)
(FEP632)
(FEP640)
(contains)
(FEP641)
(PEP641)

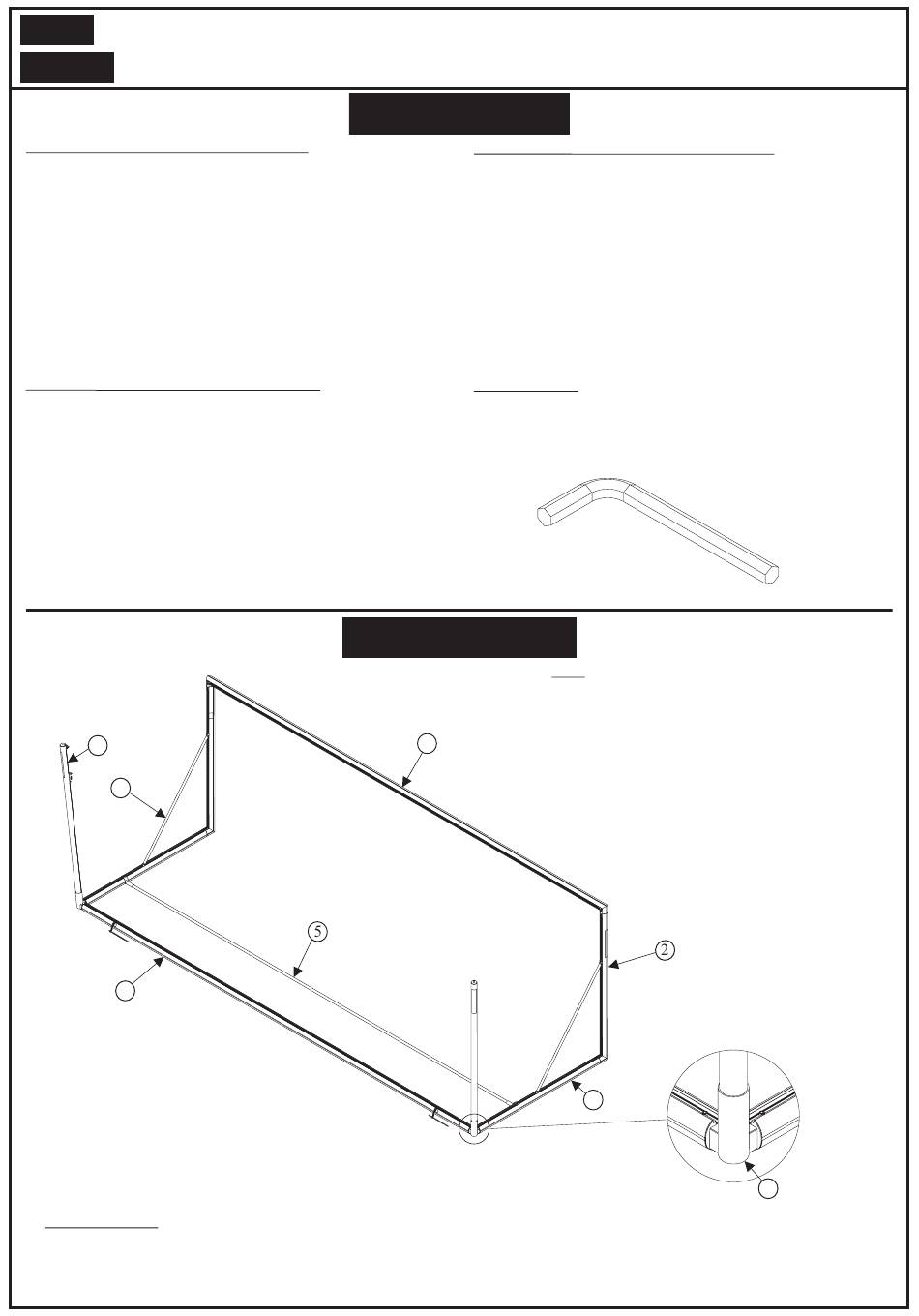

View of Product
x2.13m 3G Euro Portagoal
FBL-695: 4.88
1. 2 x 4.88m 3G Crossbar
2. 2 x 2.13m 3G Portagoal Upright
2 x Portagoal Brace - Pair
3. 2 x Portagoal Brace 1487mm
2 x 2.13m Portagoal Sidebar - Pair
4. 2 x 2.13m Weighted P/Goal Sidebar
1 x 4.88m WTD P/Goal Ali Net Bar
5. 2 x 4.88m WTD P/Goal Ali Net Bar
6. 4 x Euro Portagoal Net Support Bracket
7. 2 x 4852mm Euro Portagoal Backbar
2 x Euro Portagoal Net Supports
8. 2 x Euro P/Goal Net Support - Black
Tools Required
1 x 17mm Spanner
1 x 8mm Allen Key (Supplied with fittings)
1 x 6mm Allen Key (Supplied with fittings)
1 x 4mm Allen Key (Supplied with fittings)
Net:-
There is no net supplied with this goal. To purchase a
net please contact our Sales office who will be able to
provide you with a suitable distributor - Please quote
Net Number:
1
FBL-684 for Senior Goal
FBL-691 for Junior Goal
FBL-696 for 9v9 Goal
4
© Harrod UK Limited
(contains)
(contains)
(contains)
(contains)
6
IMPORTANT PLEASE READ THE
A S S E M B LY I N S T R U C T I O N S
CAREFULLY BEFORE STARTING
TOASSEMBLE YOUR GOAL
INS683
Revision 8
04/08/2017
(FEP378)
(FEP286)
(FEP674)
(PEQ335)
(FEP637)
(PEP637)
(FEQ807)
(PEQ712)
(FEP632)
(FEP595)
(FEP641)
(PEP641)
