INSTALLATION INSTRUCTIONS AND HOMEOWNER'S MANUAL:
Models marqued with an * are only sold in Quebec
Models in bold can be sold in US and Canada.
INSTALLER / SERVICE TECHNICIAN:
Use the information in this manual for the installation/servicing of the furnace and keep the document near the unit for future
reference.
HOMEOWNER: Please keep this manual near the furnace for future reference.
Manufactured by: Dettson Industries Inc. Sherbrooke, Qc, Canada www.dettson.com
Gas furnace manufactured on or after May 1, 2017 are not permitted to be used in Canada for heating of buildings or structures under construction
Printed in Canada on
100% recycled paper

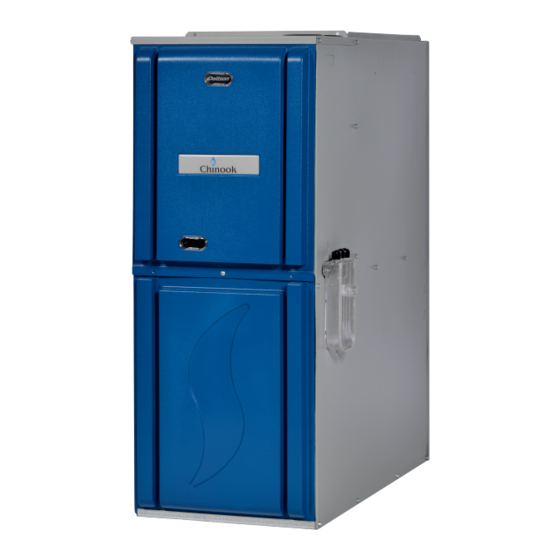

GAS FIRED FURNACE
Models:
C45-1-X C45-1-D* C45-2-D* C45-2-V
C60-1-X* C60-1-D* C60-2-D* C60-2-V
C75-1-X* C75-1-D* C75-2-D* C75-2-V
C105-1-X* C105-1-D* C105-2-D* C105-2-V*
C120-1-X* C120-1-D* C120-2-D* C120-2-V*
2020-05-26
GAS FURNACE
MULTIPOSITION
X40223 rev.R
