INSTALLATION INSTRUCTIONS AND HOMEOWNER'S MANUAL:
INSTALLER / SERVICE TECHNICIAN:
Use the information in this manual for the installation/servicing of the furnace and keep the document near the unit for future
reference.
Caution:
This furnace must be intalled with the modulating thermostat R02P030. If the furnace is to be installed with the modulating
cooling option, use the communicating thermostat R02P032. Do not tamper with the unit or its controls. Call a qualified service
technician.
HOMEOWNER: Please keep this manual near the furnace for future reference.
Manufactured by: Dettson Industries Inc. Sherbrooke, Qc, Canada www.dettson.com
Gas furnace manufactured on or after May 1, 2017 are not permitted to be used in Canada for heating of buildings or structures under construction
Printed in Canada on
100% recycled paper

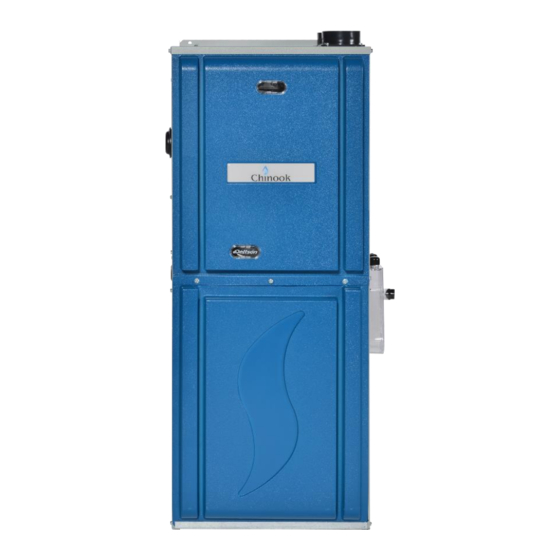

GAS FIRED FURNACE
MODULATING GAS FURNACE
Models:
C15-M-V & C15-M-S
C30-M-V & C30-M-S
C45-M-V & C45-M-S
C60-M-V
C75-M-V
C105-M-V
C120-M-V
2020-08-02
MULTIPOSITION
X40225 rev.U
